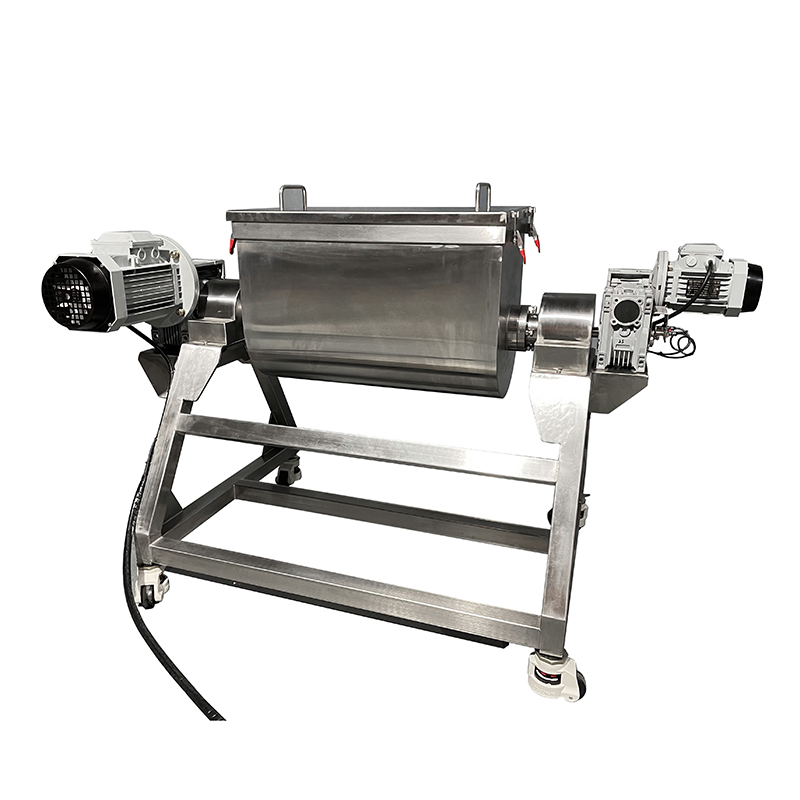

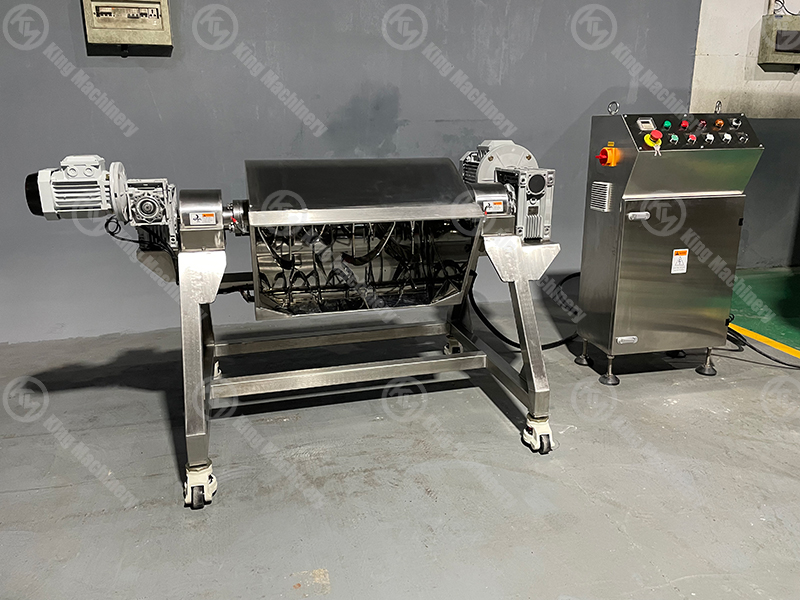

KM Tilt Industry Paddle Mixer

KM Tilt Industry Paddle Mixer is a high-efficiency blending solution engineered for materials that require intensive mixing, liquid addition, and 100% discharge reliability. Featuring a robust tilting mechanism, this mixer is designed to handle high-viscosity pastes, granular solids, and delicate powders.
It is particularly renowned in the tobacco industry for Shisha (Mu’assel) production and Pet food Industry, where the consistent integration of molasses and flavorings with tobacco leaves is critical for product quality.

Phone：+86-13196722769

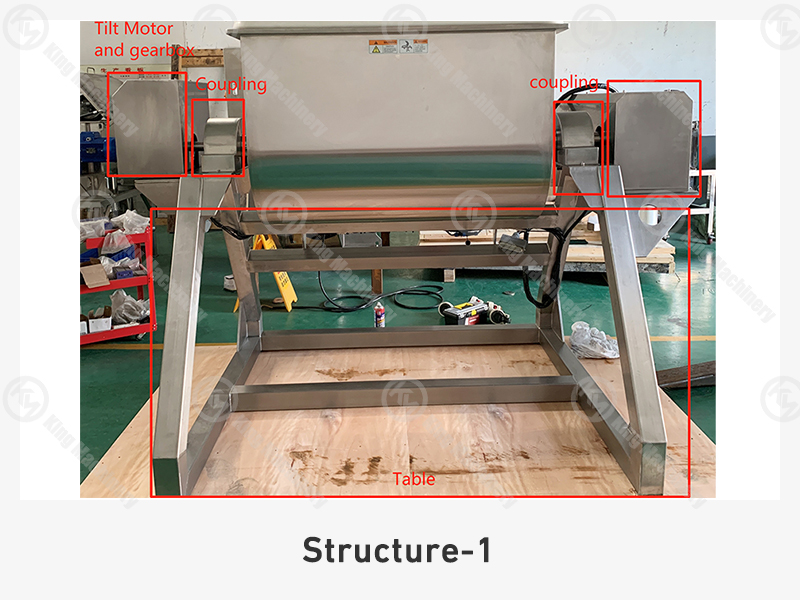

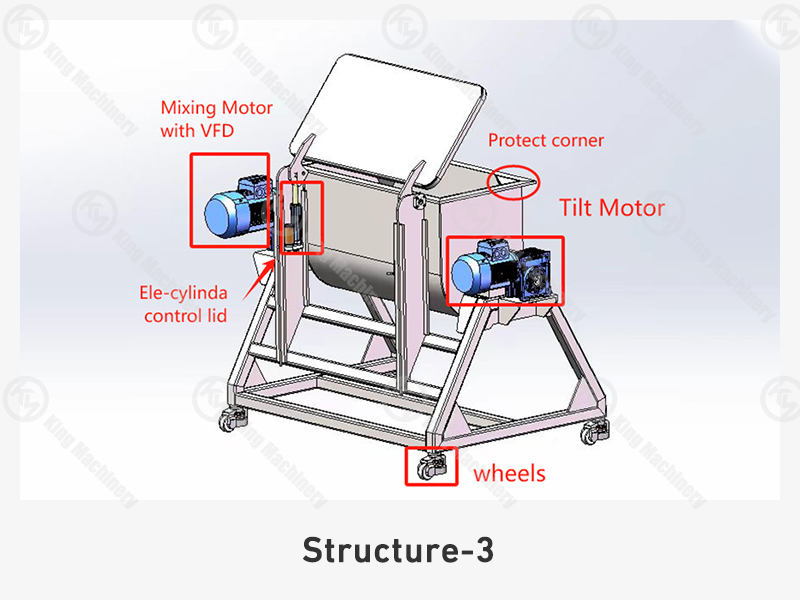

The KM Tilt Powder Mixer includes the vertical chamber, driven unit, agitator unit， Discharge unit and the electric Control Part

1. Mixing Chamber

Brushed Outerside, Sanitary Polished Innerside

Robust Structure

SS304/SS316/SS316L/Teflon Coating

Horizontal u/Round shape trough

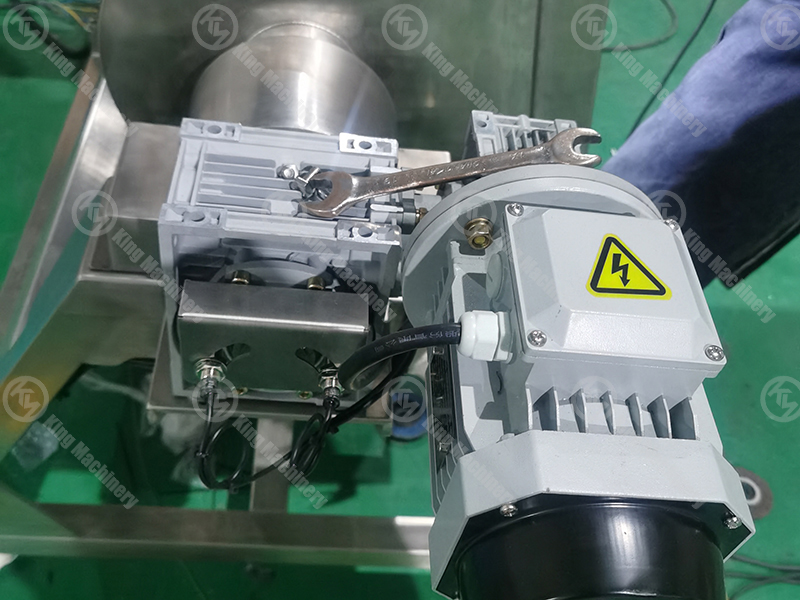

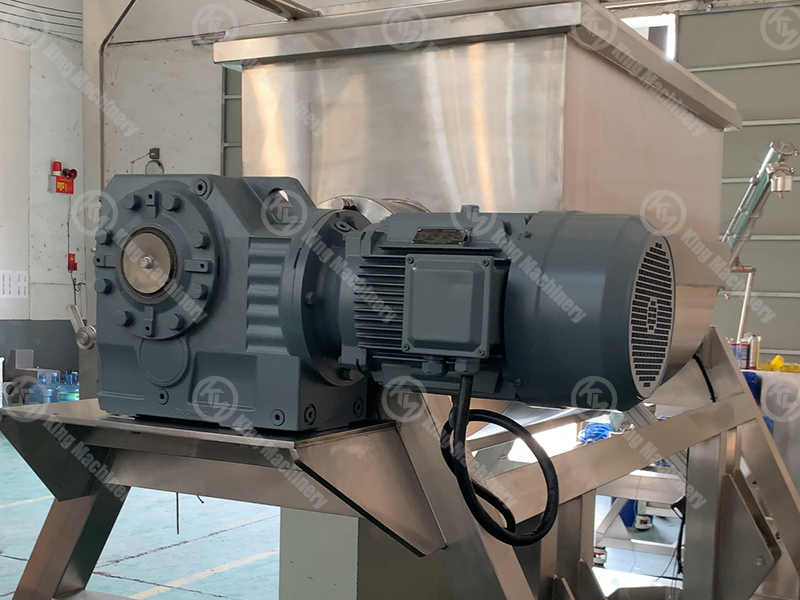

2. Driven Unit

Motor+Reducer+Option VFD
Customized Voltage for 220V/240V/380V/415V/440V or othes
Motor Brand: normally Guomao Brand (Chinese Listed Brand, https://www.guomaoglobal.com/#/ ), Option: Siemens/ABB made in China, or other Brand
Reducer:normally Guomao Brand
VFD: normally Invt Brand (Chinese Listed Brand, https://www.invt.com/index.php ), Option: Delta/ABB or other Brand

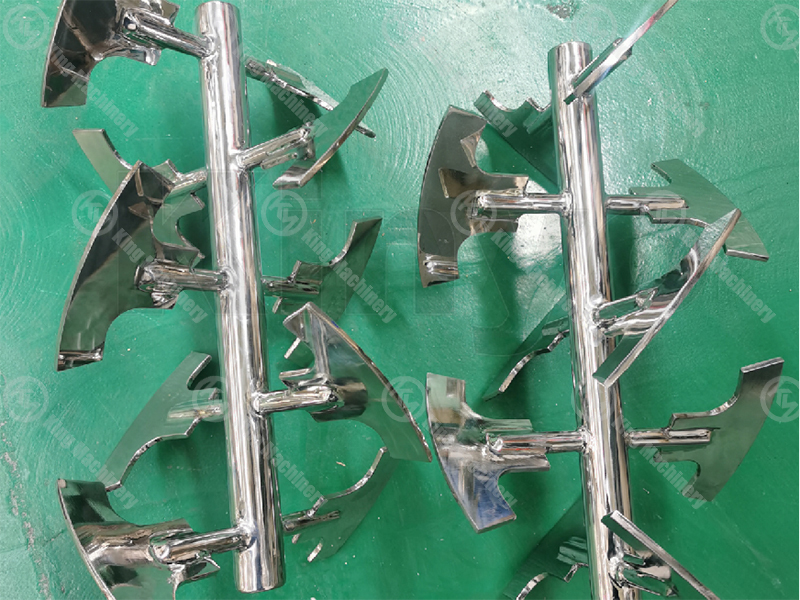

3. Agitator Unit

Sanitary Polished
Integral shaft without any Welding marks, to prevent bacterial growth
Paddle Shaft

4. Discharge Unit

0–60° adjustable tilting angle
Cylinder-controlled, stable operation
Mixing during discharge
Forward & reverse rotation for anti-blocking
Ideal for sticky, viscous, and semi-wet materials
Significantly reduced residue

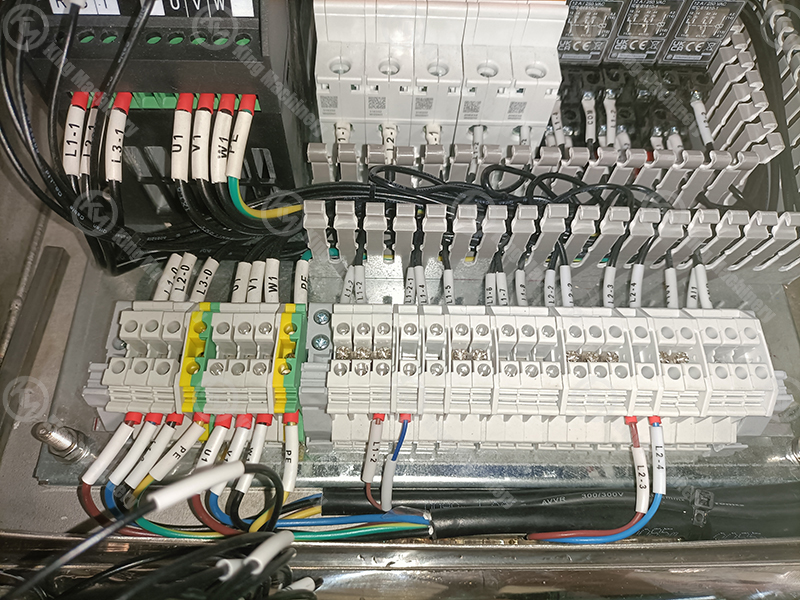

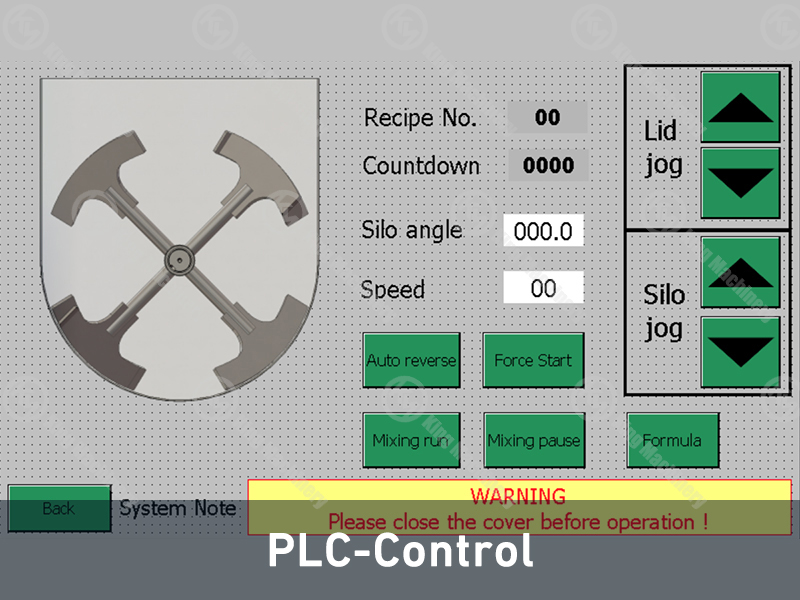

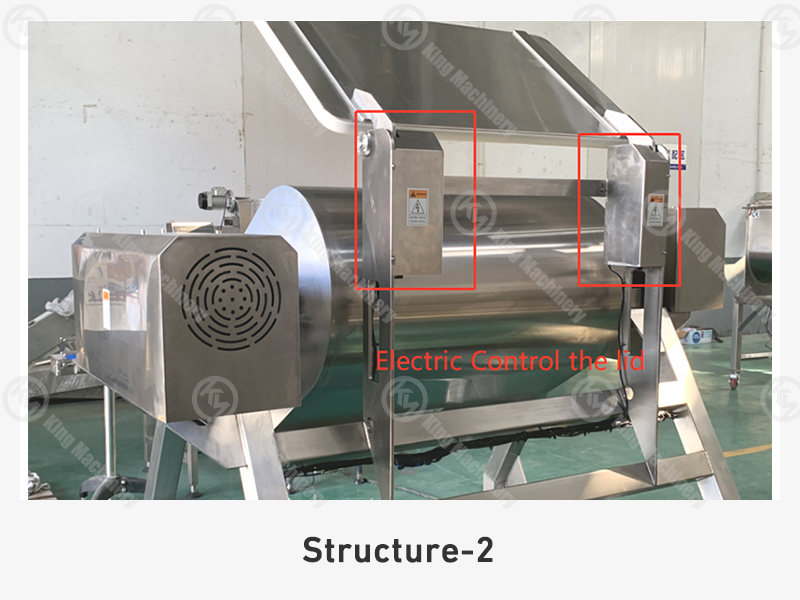

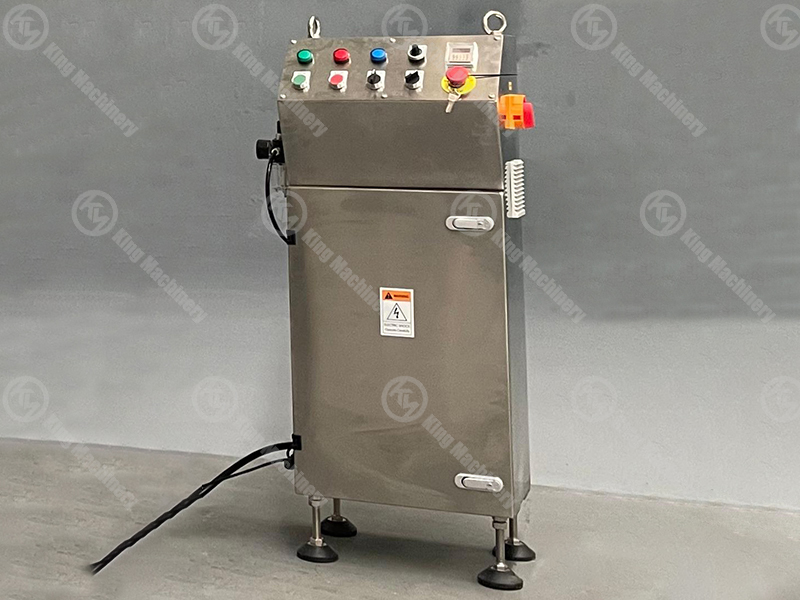

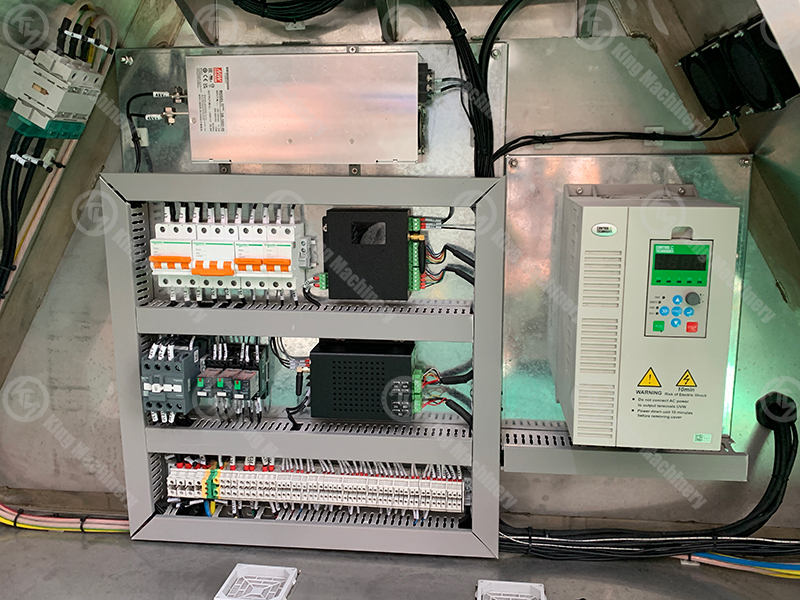

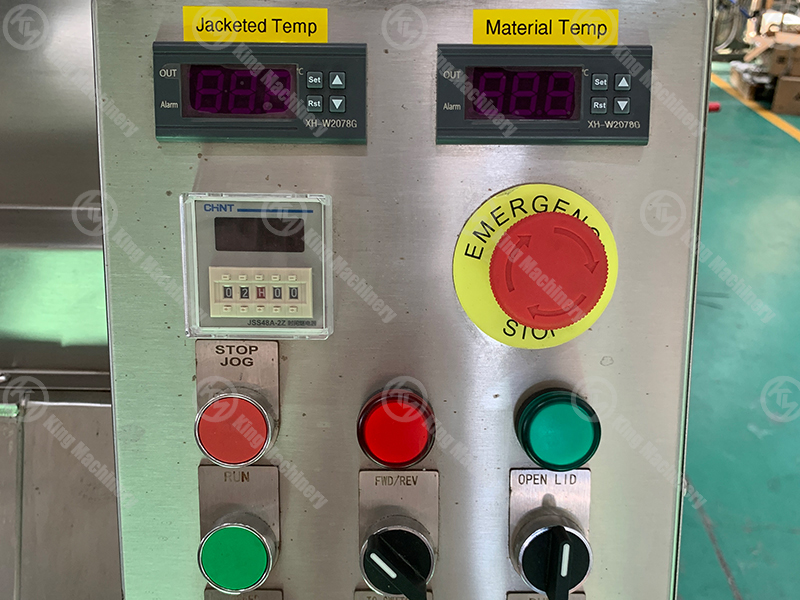

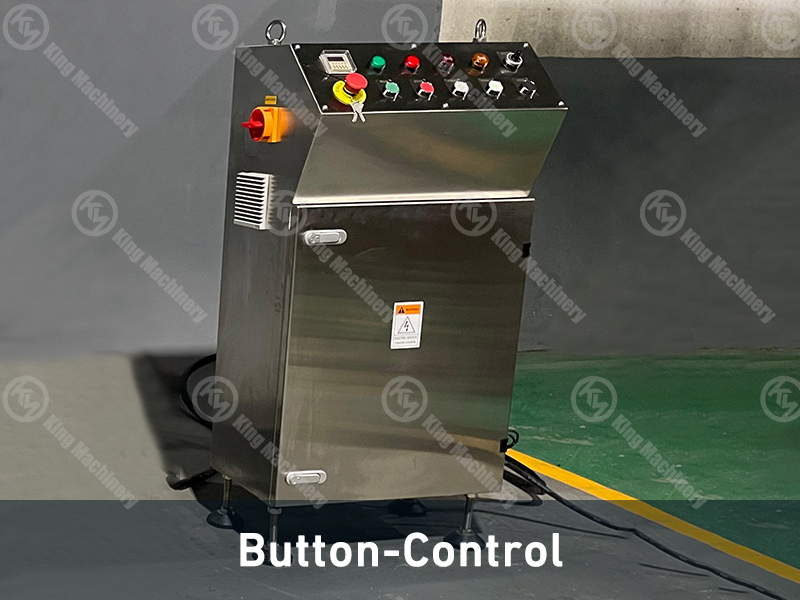

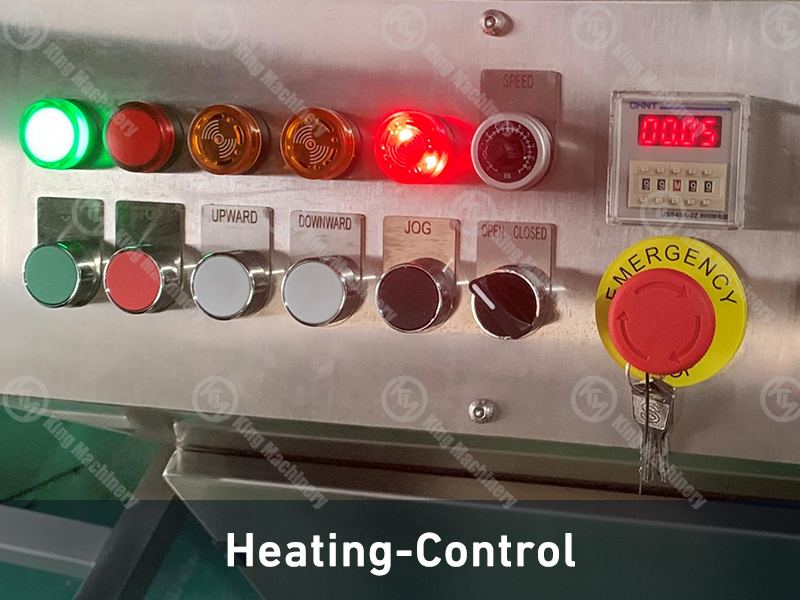

5. Electric Control Part

PE grounding conductor.
The grounding wire is identified by green/yellow insulation, in accordance with IEC 60445 / IEC 60204-1 international electrical standards.
Schneider Brind Circuit with UL/CE
Electrical safety protection and fully complies with international industrial equipment safety practices.
On/Off/E-off/Timer

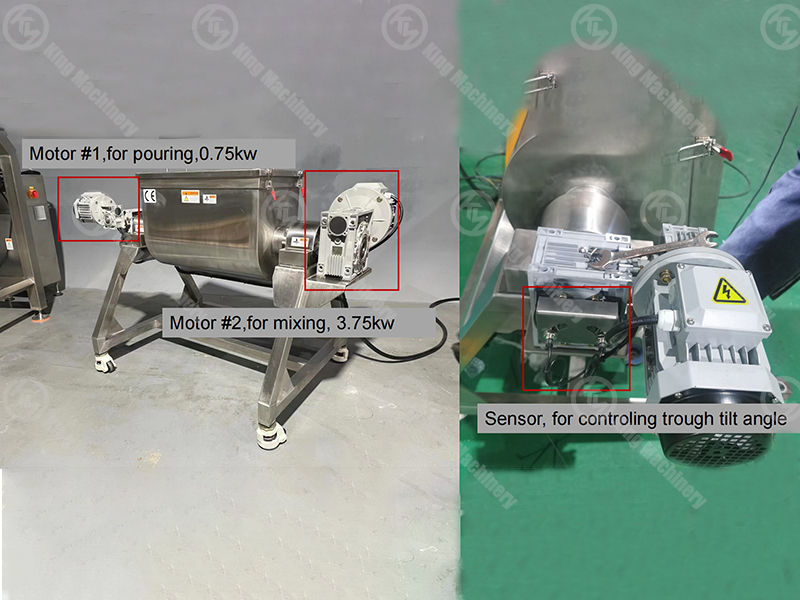

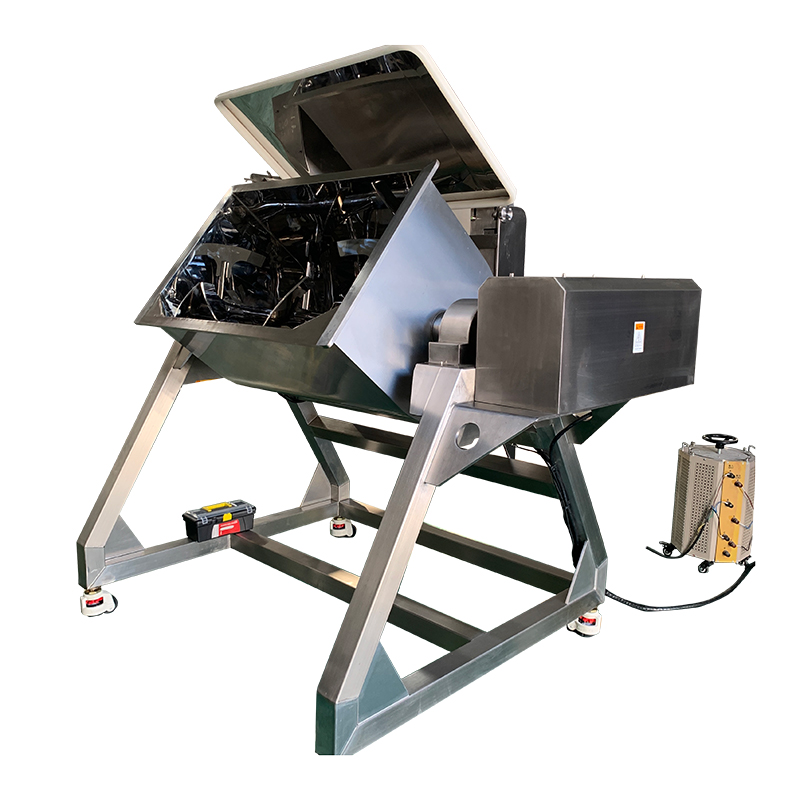

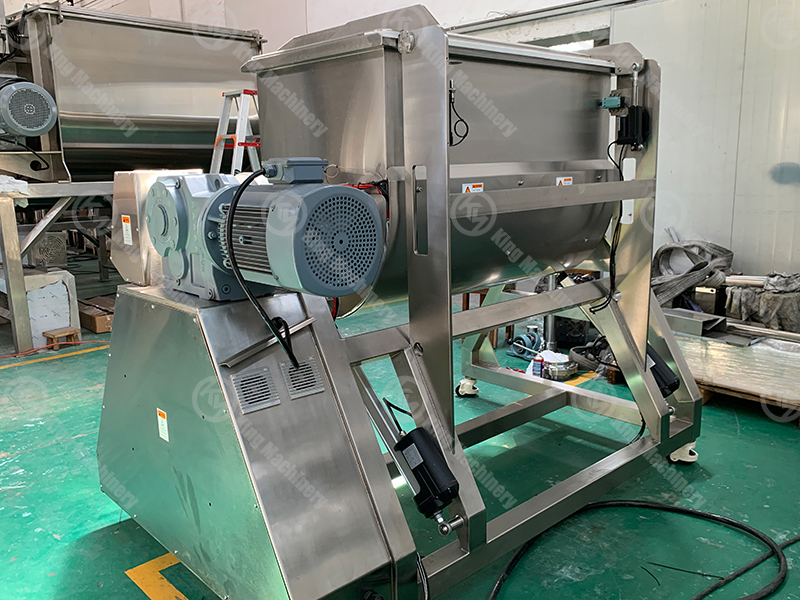

1. Cylinder-Driven Tilting
The mixing vessel is tilted by a pneumatic or electric cylinder or motor control system, ensuring smooth, stable, and safe operation.

2. Adjustable Tilting Angle
The tilting angle can be flexibly adjusted from 0° to 60°:

Lower angle → controlled and gradual discharge
Higher angle → rapid and complete emptying

3. Mixing During Discharge
During tilting, the agitator can continue running to assist material flow:

Prevents wall adhesion
Reduces dead zones
Improves discharge continuity

4. Forward & Reverse Rotation
The agitator supports forward and reverse rotation during discharge, which provides significant advantages:

Forward rotation → pushes material toward the outlet
Reverse rotation → pulls back and loosens accumulated material
Helps break bridges and eliminate blockages
Especially effective for high-viscosity or sticky materials (e.g., shisha, resin, paste)

This function ensures smoother discharge and avoids material buildup inside the tank.

5. Enhanced Material Flow
The combination of:

Tilting (gravity)
Continuous mixing
Forward & reverse rotation

Creates a highly efficient discharge process, even for difficult materials.

6. Minimal Residue
Compared with traditional bottom discharge:

Near 100% emptying
Reduced cleaning time
Lower cross-contamination risk

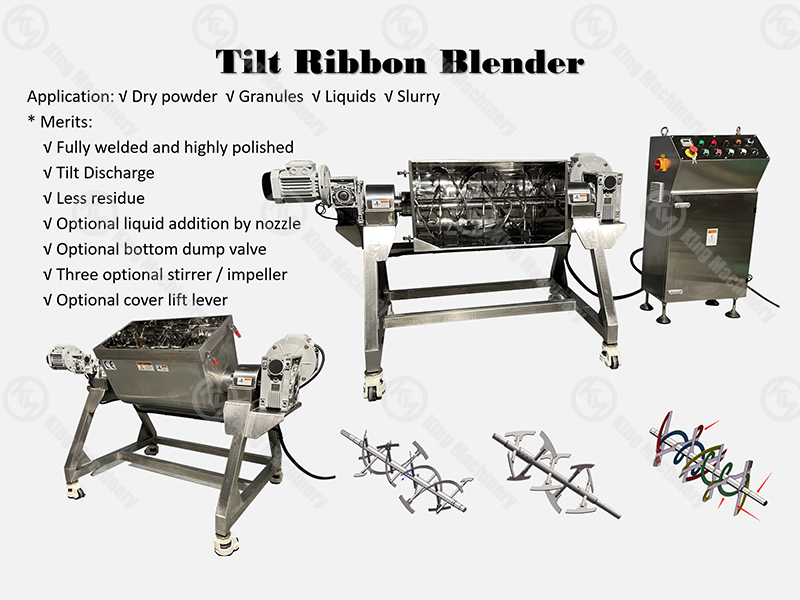

1. 0–60° adjustable tilting angle
2. Cylinder-controlled, stable operation
3. Mixing during discharge
4. Forward & reverse rotation for anti-blocking
5. Ideal for sticky, viscous, and semi-wet materials
6. Significantly reduced residue
7. Sanitary Polished
8. Max 5mm distance between the ribbons and the innerside of the trough
9. Large inspection door without dead space
10. Integral shaft without welded point

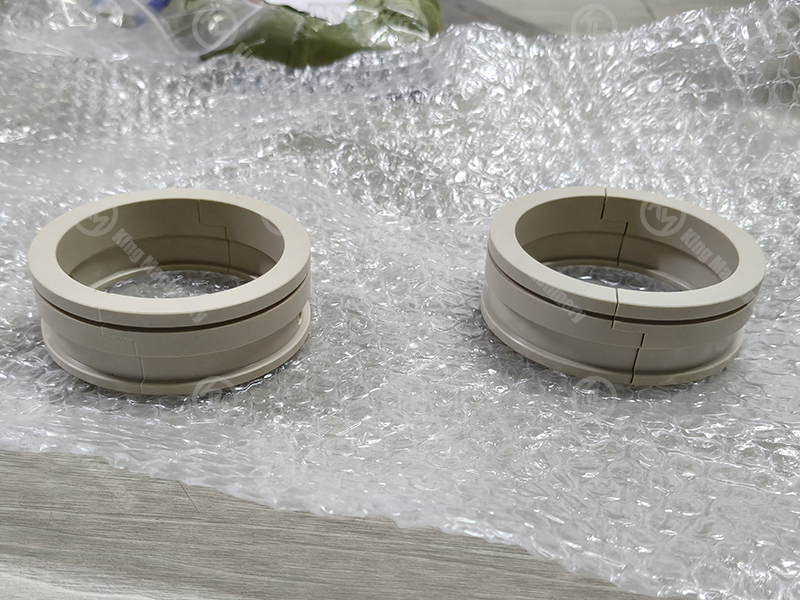

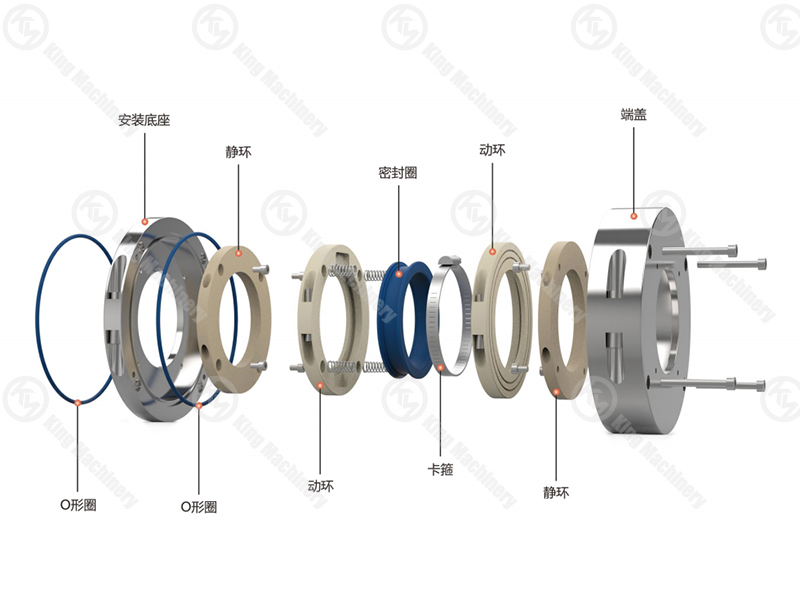

11. Shaft end seal, good for water
12. All stainless steel construction
13. Relay control
14. Automatic mixing time, overload protection
15. Optional 4 castors for moving
16. Customize Voltage and details
17. 100L-Max 3000L

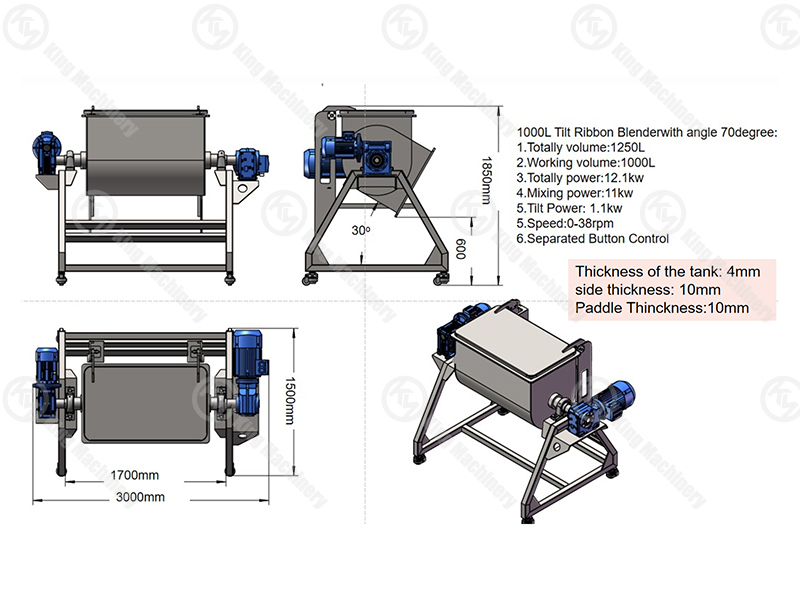

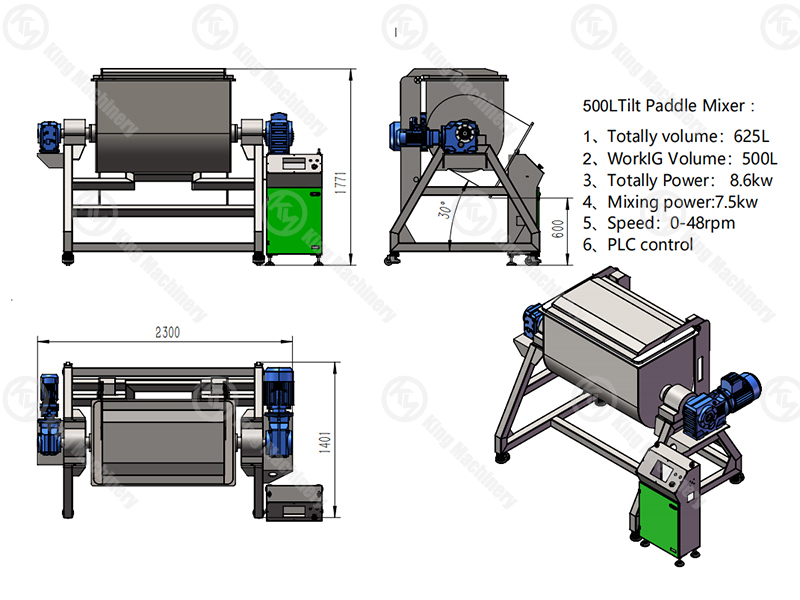

	KTP 100	KTP 200	KTP 500	KTP 1000	KTP 1500	KTP 3000
Volume(L2)	125	250	625	1250	1875	3750
Effective volume(L1)	100	200	500	1000	1500	3000
Speed(rpm)	46	46	46	38	35	30
Power（Kw）	3	4	7.5	11	18.5	30
Ribbon Thinckness	10	10	10	12	10	10
side thickness	10	10	10	16	25	12
Net Weight(kg)	250	300	600	965	1000	1600
