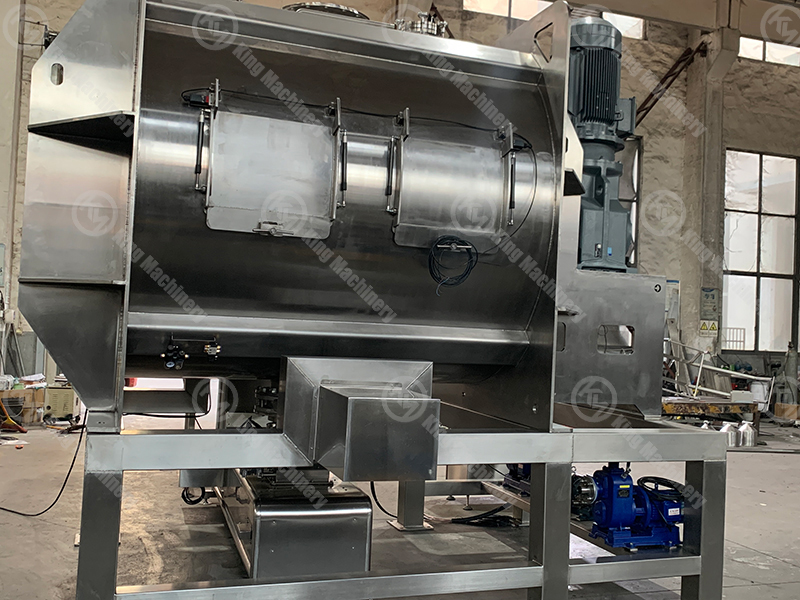

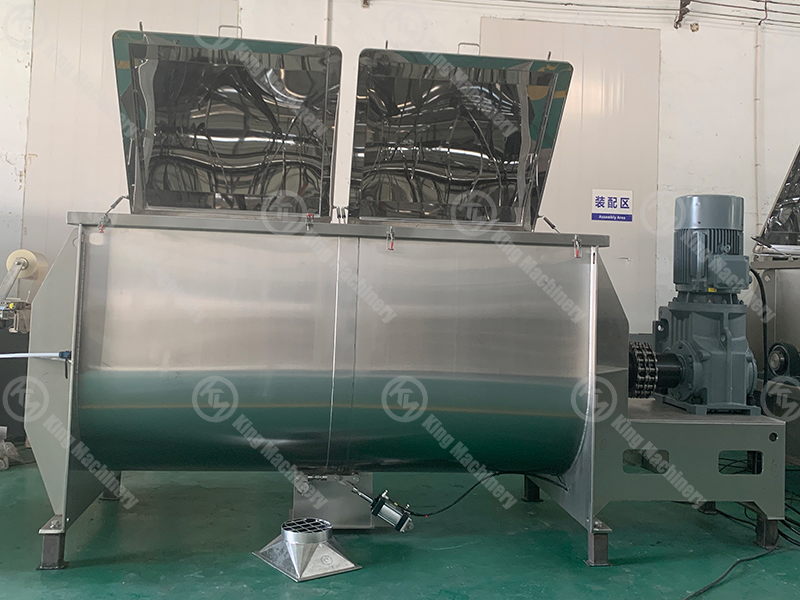

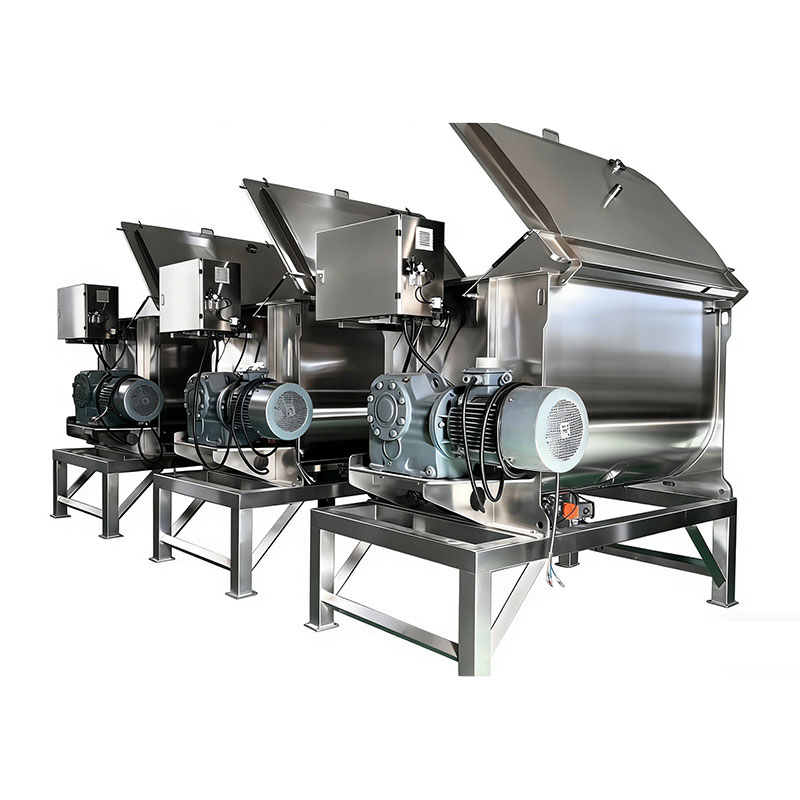

KM Paddle Mixer

A KM Paddle Mixer is an efficient industrial mixing machine designed for blending powders, granules, and liquids uniformly. By using specially designed paddles mounted on one or two shafts, the mixer continuously lifts, folds, and moves materials in multiple directions to achieve fast and homogeneous mixing.

It is particularly suitable for applications requiring gentle mixing, liquid addition, wet mass blending, and handling sticky or dense materials. Paddle mixers are widely used in the food, chemical, pharmaceutical, and construction industries.

Phone：+86-13196722769

E-mail：ann@kmixer.com

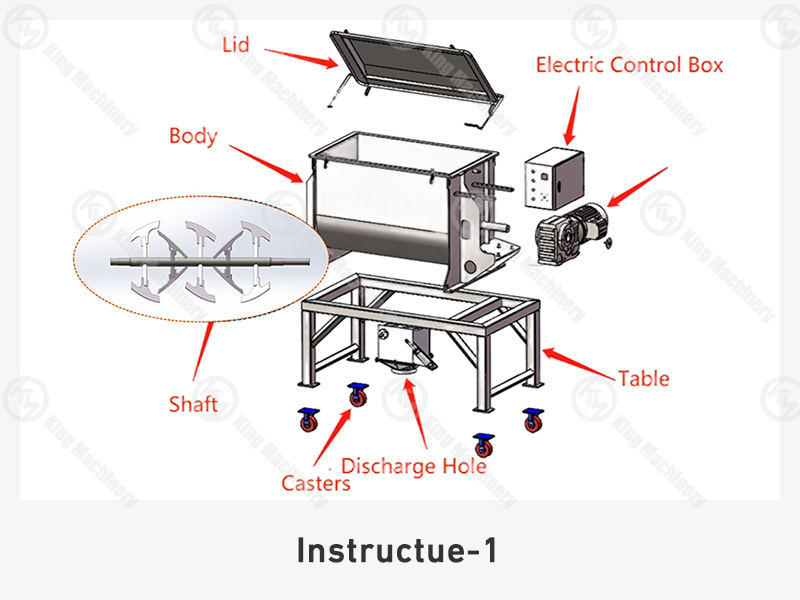

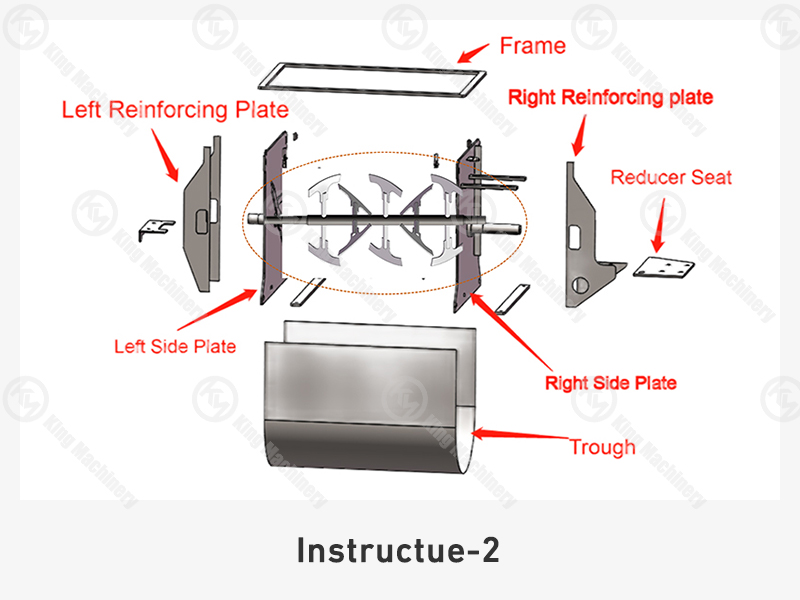

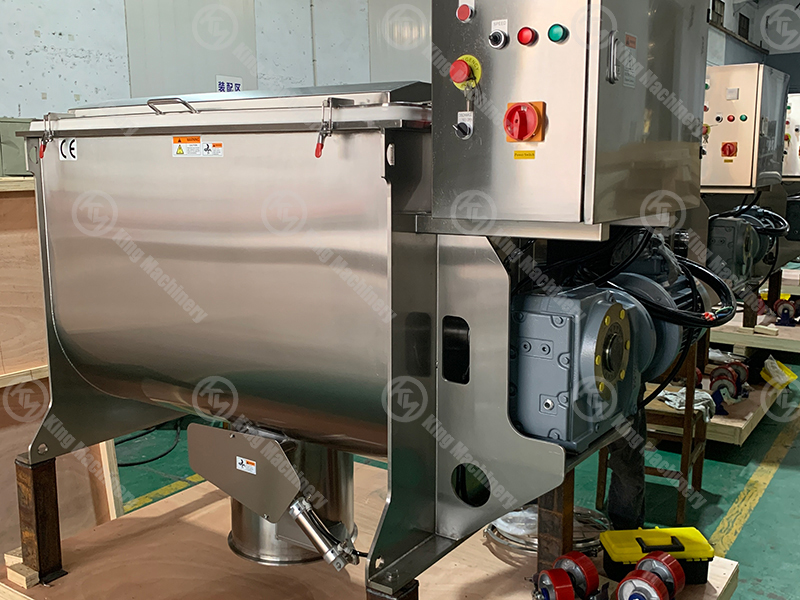

KM Horizontal Paddle Mixer consists of U-Shape/Round trough, spiral,Discharge and drive parts.

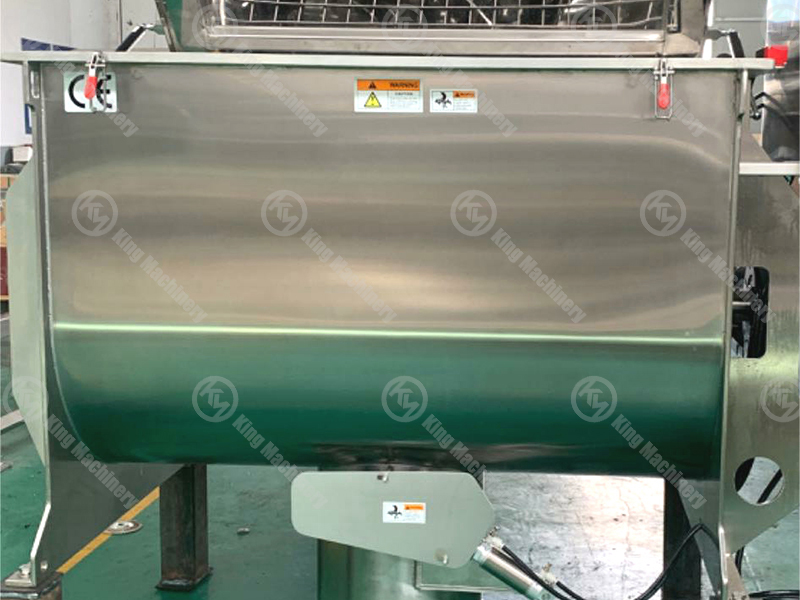

1. U-Shape/Round trough

Brushed Outerside, Sanitary Polished Innerside

Robust Structure

SS304/SS316/SS316L/Teflon Coating

U shape/Round Trough

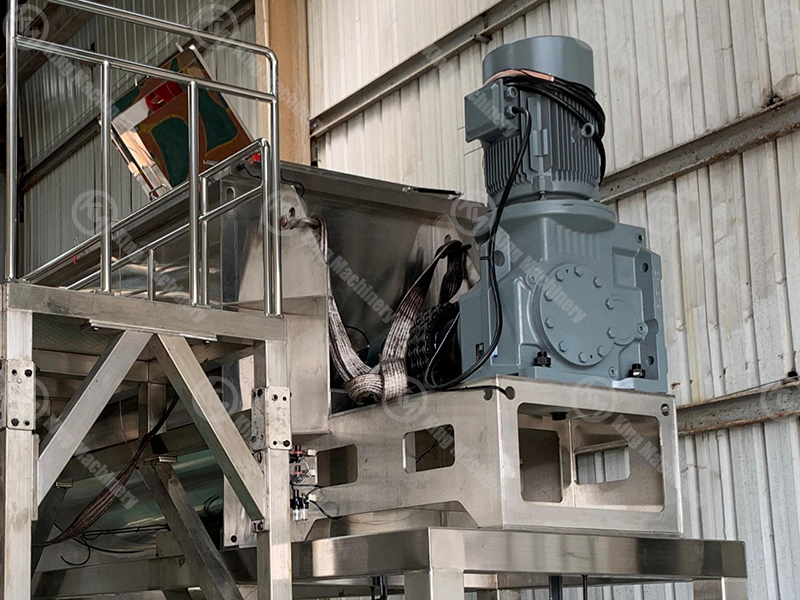

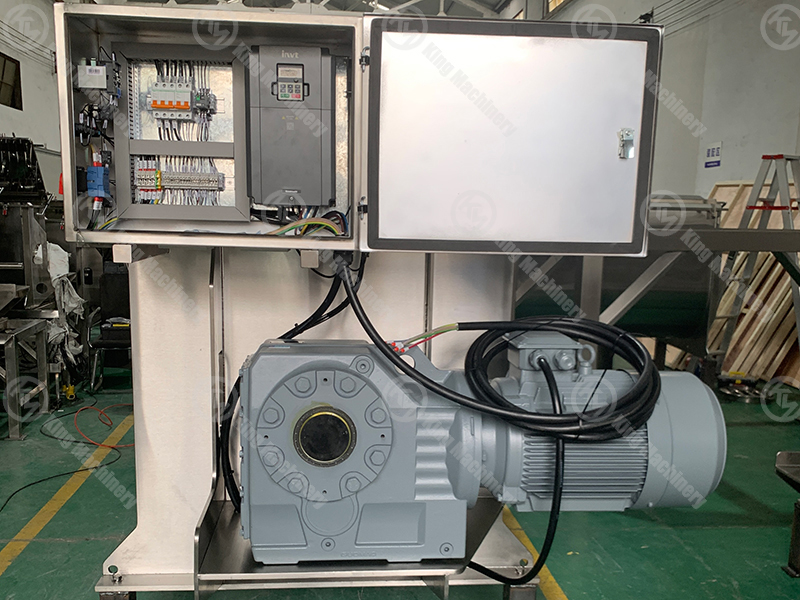

2. Driven Unit

Motor+Reducer+Option VFD
Customized Voltage for 220V/240V/380V/415V/440V or othes
Motor Brand: normally Guomao Brand (Chinese Listed Brand, https://www.guomaoglobal.com/#/ ), Option: Siemens/ABB made in China, or other Brand
Reducer:normally Guomao Brand
VFD: normally Invt Brand (Chinese Listed Brand, https://www.invt.com/index.php ), Option: Delta/ABB or other Brand

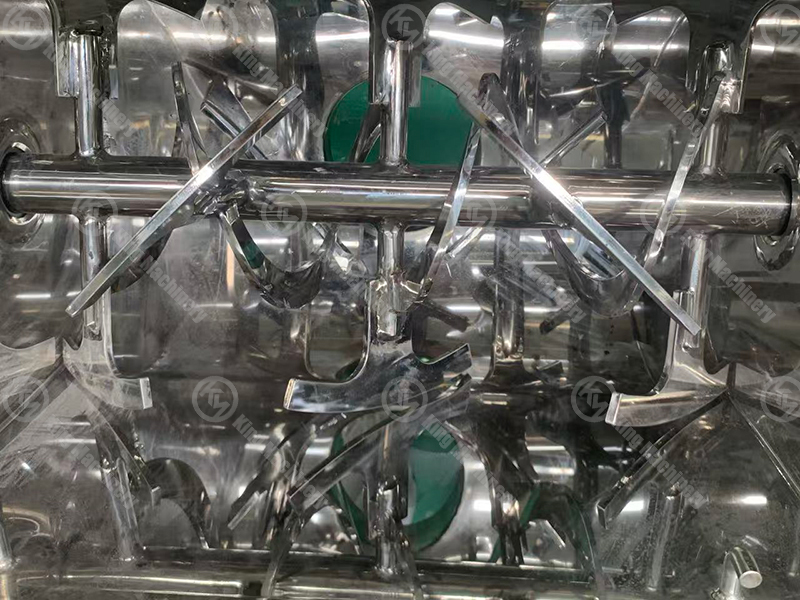

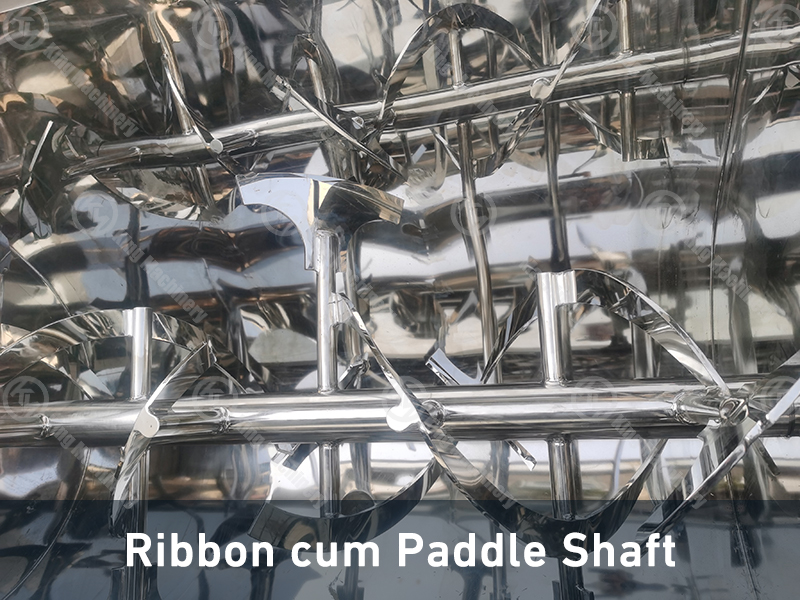

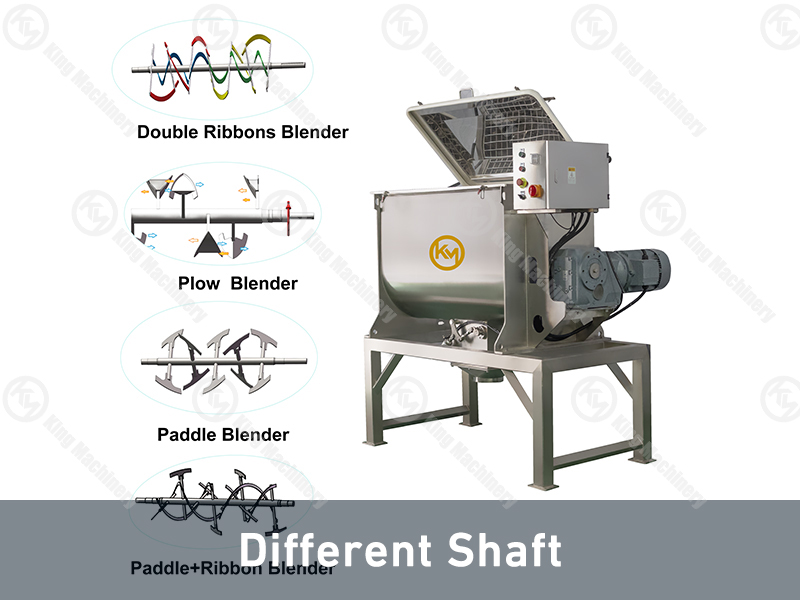

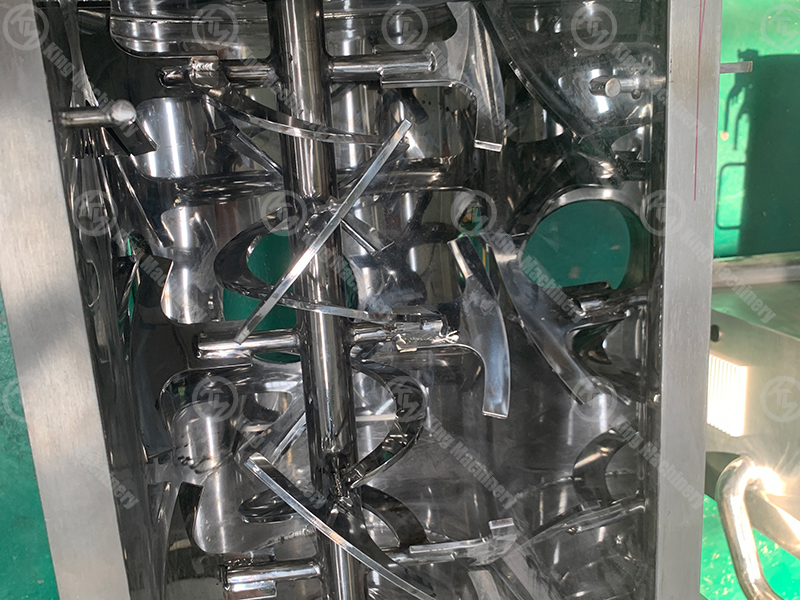

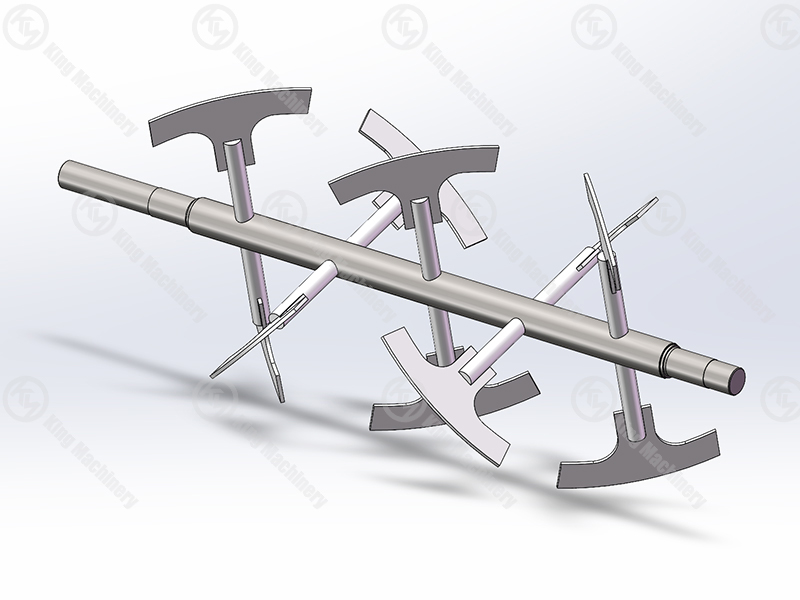

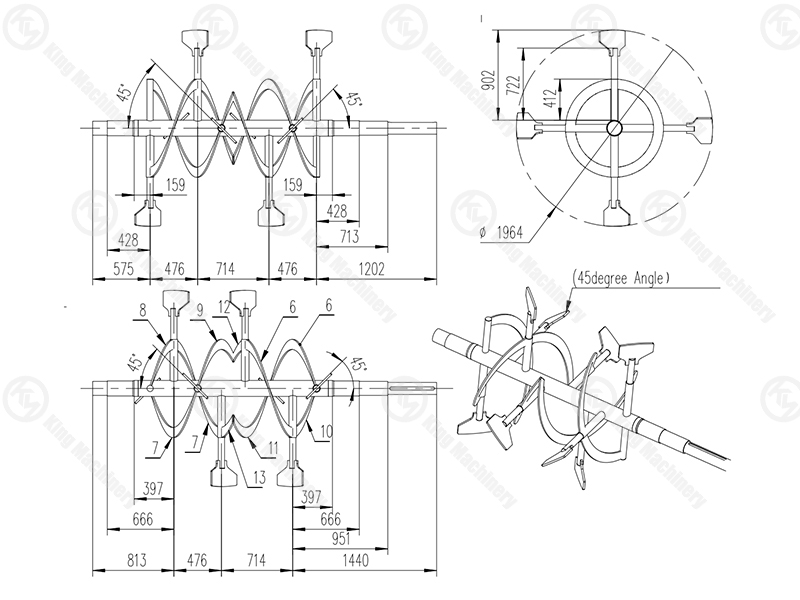

3. Agitator Unit

Sanitary Polished
Integral shaft without any Welding marks, to prevent bacterial growth

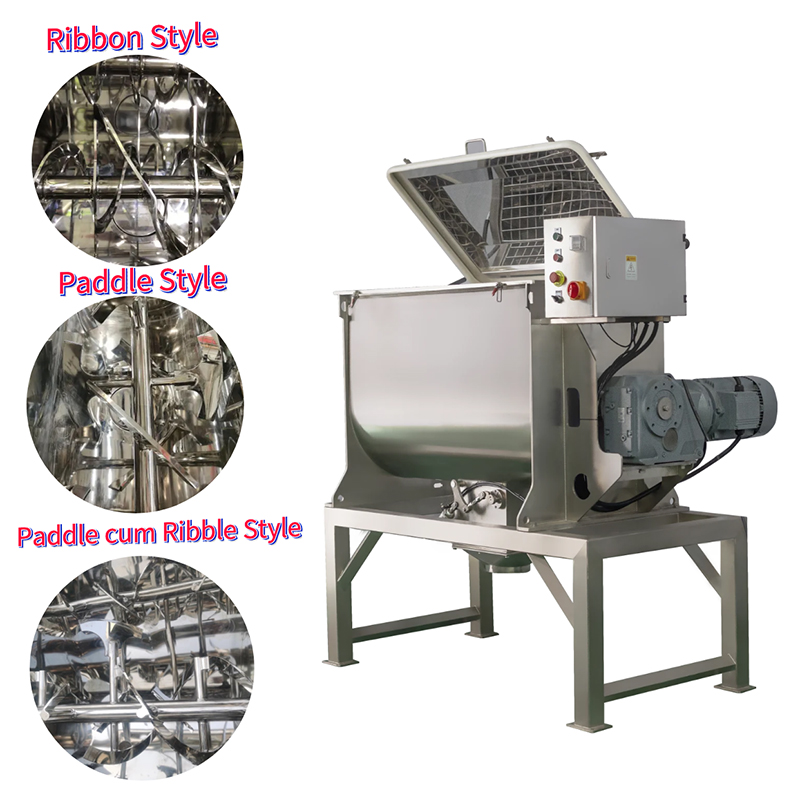

Single Shaft Paddle

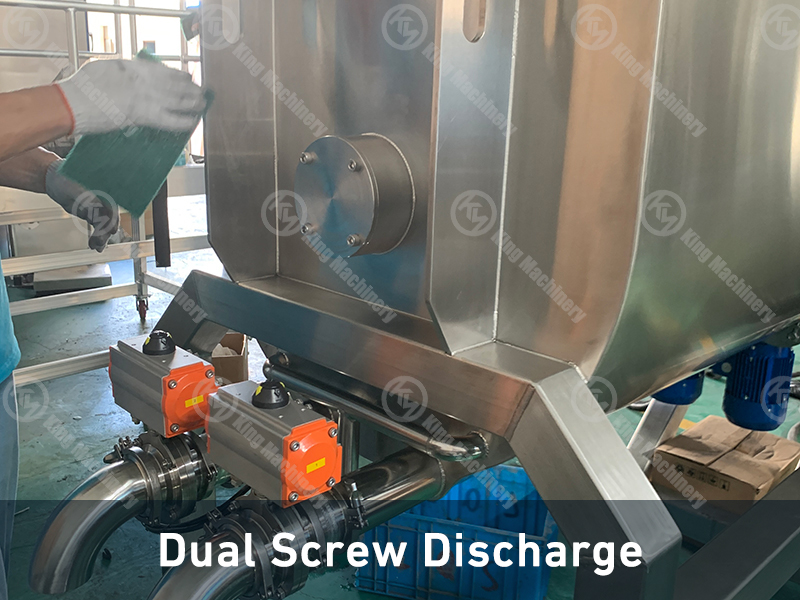

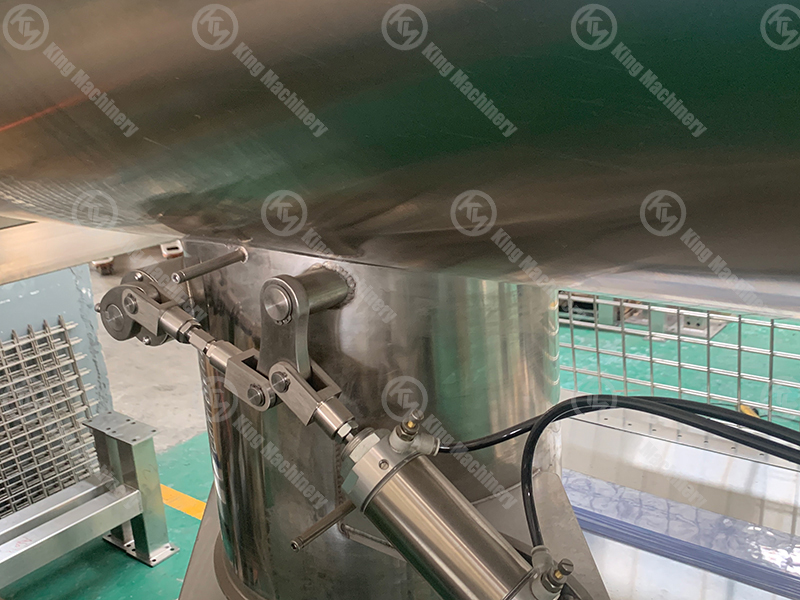

4. Discharge Unit

Normally equipped with a self-made pneumatic flat discharge valve, flush with the U-shaped trough bottom, ensuring good sealing performance and preventing water leakage.

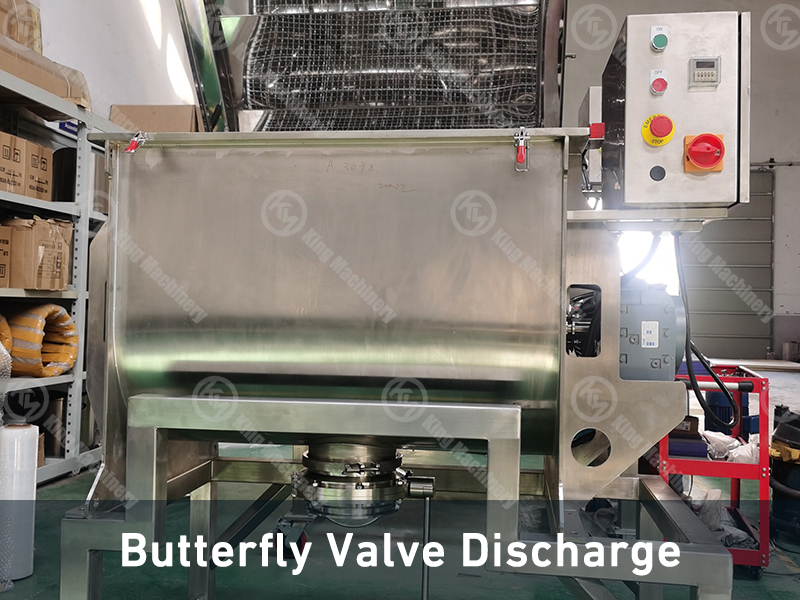

Option: Pneumatic/Electric/Manually butterfly valve， Gate valve or others.

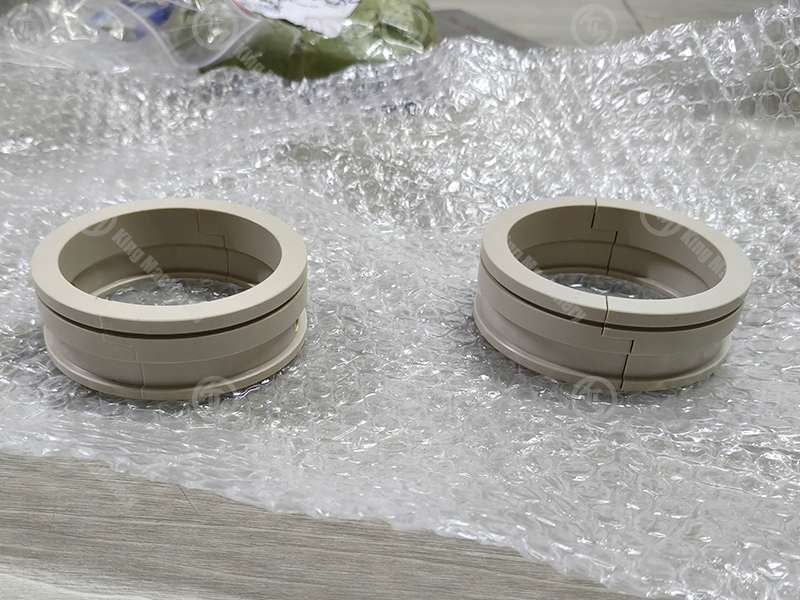

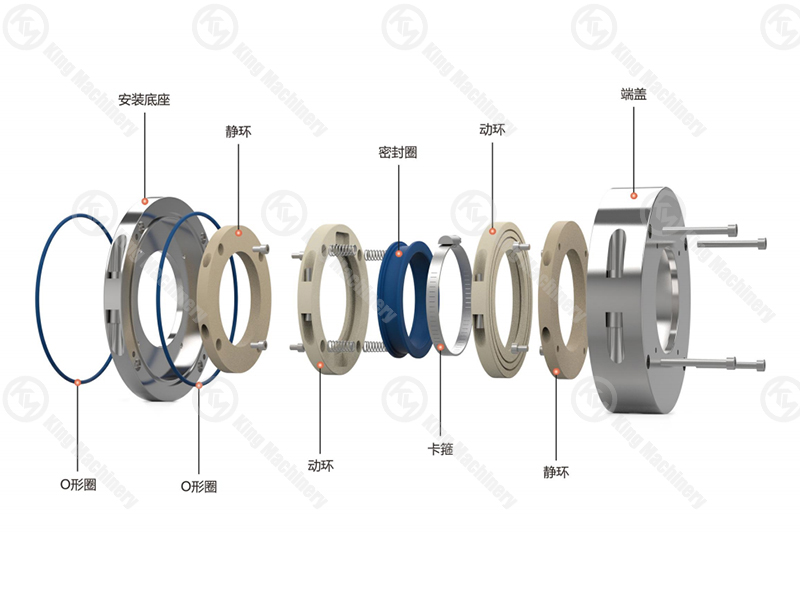

5. Shaft Sealers

Normally 2 layers of the Packing Sealer + 1 layer of the PEK Sealer, to prevent water leakage.
Option: Air Sealer

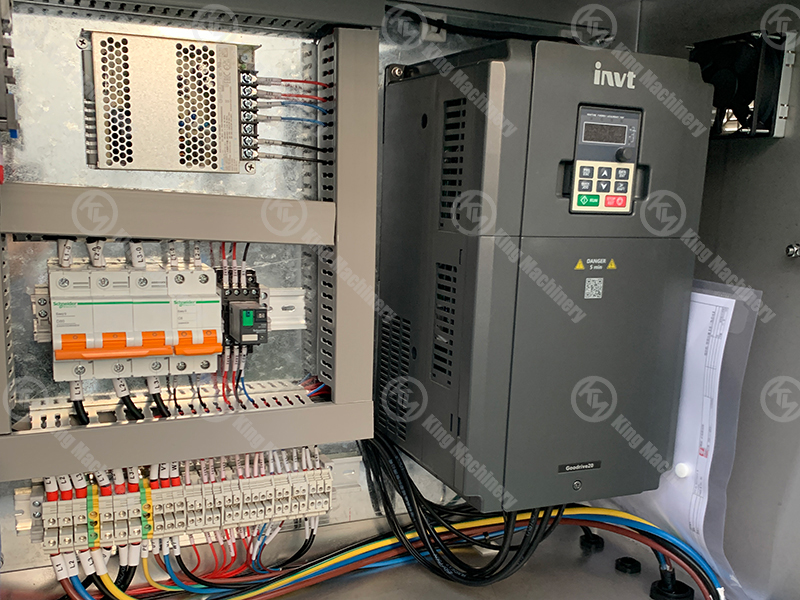

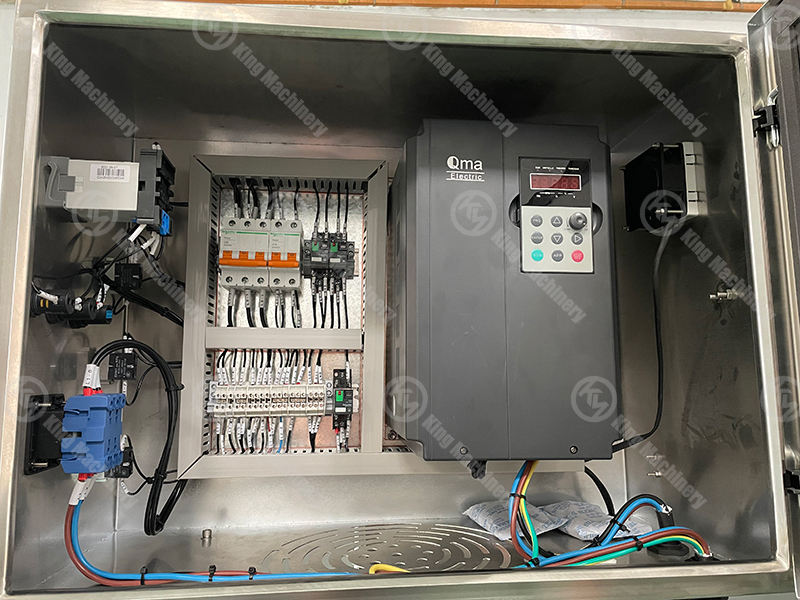

6. Electric Control Part

PE grounding conductor.
The grounding wire is identified by green/yellow insulation, in accordance with IEC 60445 / IEC 60204-1 international electrical standards.
Schneider Brind Circuit with UL/CE
Electrical safety protection and fully complies with international industrial equipment safety practices.

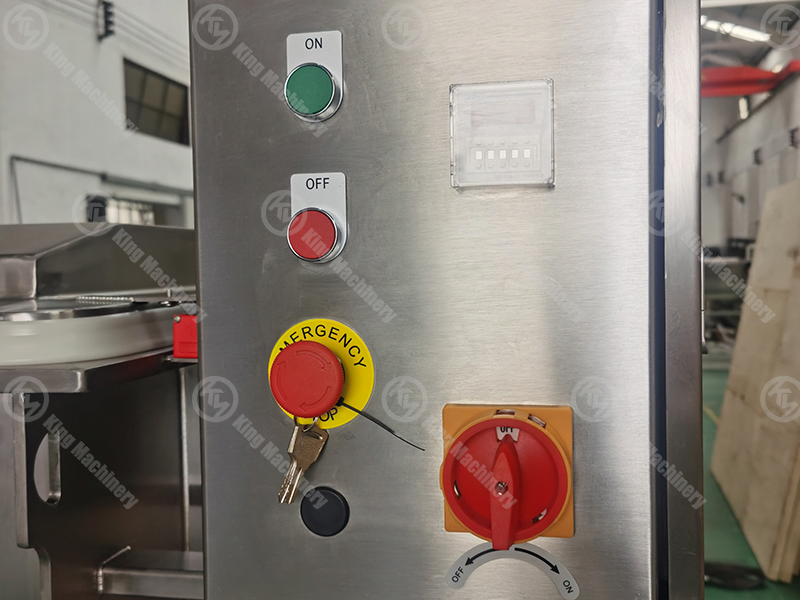

On/Off/E-off/Timer

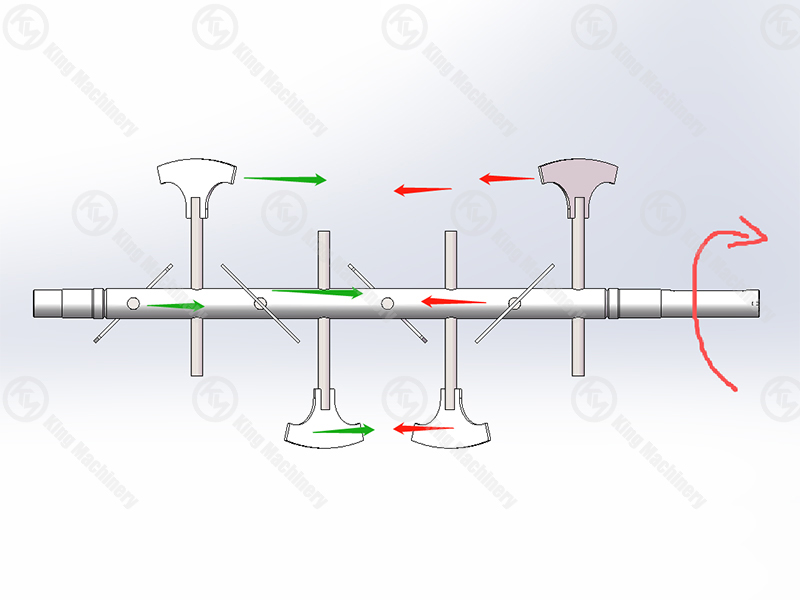

A Paddle Mixer operates by rotating specially angled paddles mounted on one or two horizontal shafts to generate multi-directional material movement inside the mixing chamber.

During operation, the paddles create both axial mixing (end-to-end movement) and radial mixing (bottom-to-top circulation), allowing materials to be continuously lifted, dispersed, and folded throughout the mixer. This dynamic movement promotes rapid and uniform blending while minimizing dead zones.

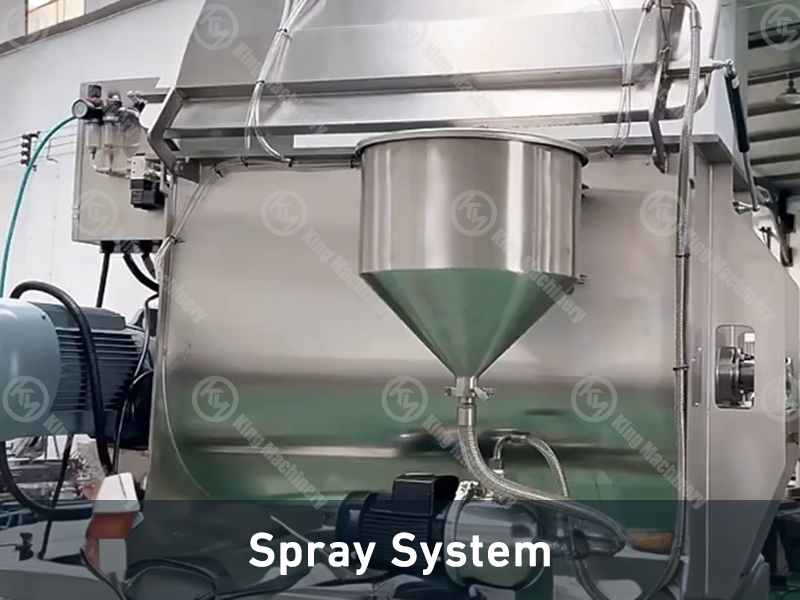

The mixer is typically operated at a controlled fill level to provide sufficient free space for particle movement and effective mixing action. When liquid addition is required, spray nozzles can introduce liquids during mixing for even distribution and efficient wetting.

1. Sanitary Polished
2. Max 5mm distance between the ribbons and the innerside of the trough

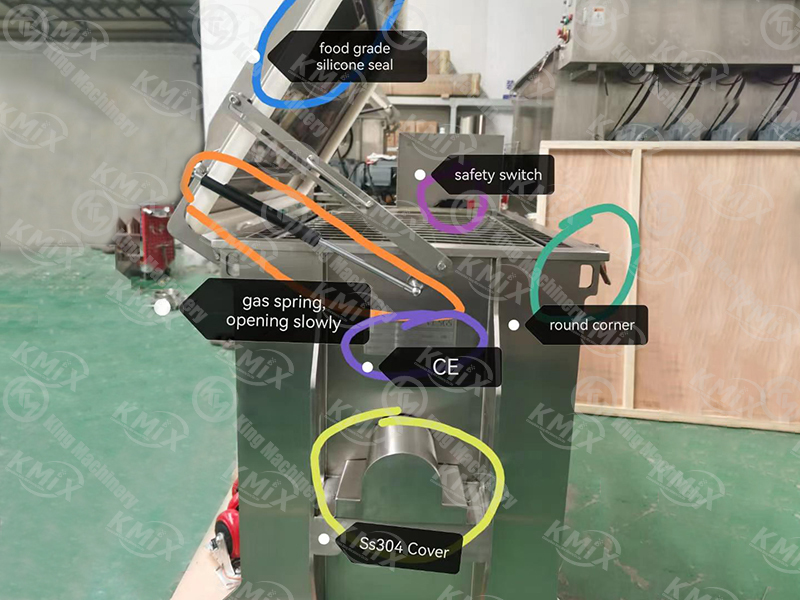

3. Easy Operation Design

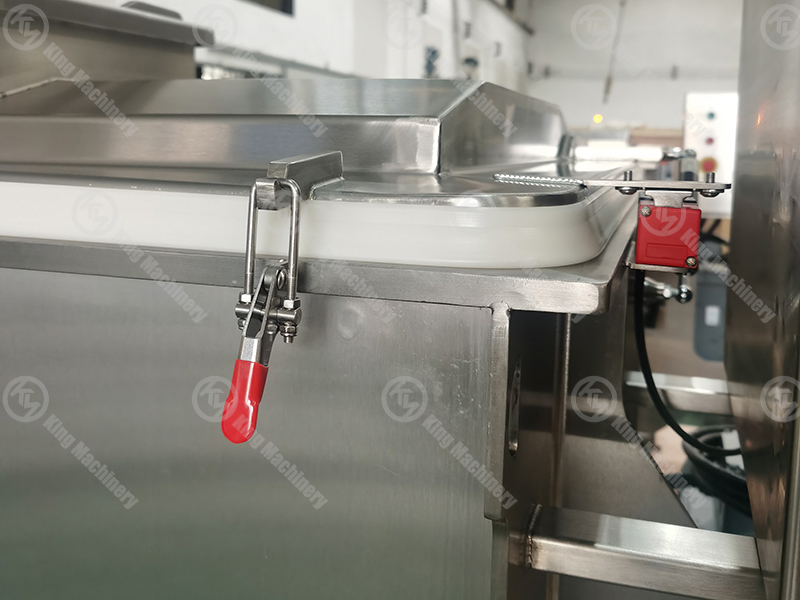

ㅤA. Limit switch;
ㅤB. Gas spring;
ㅤC. Rounded corners;

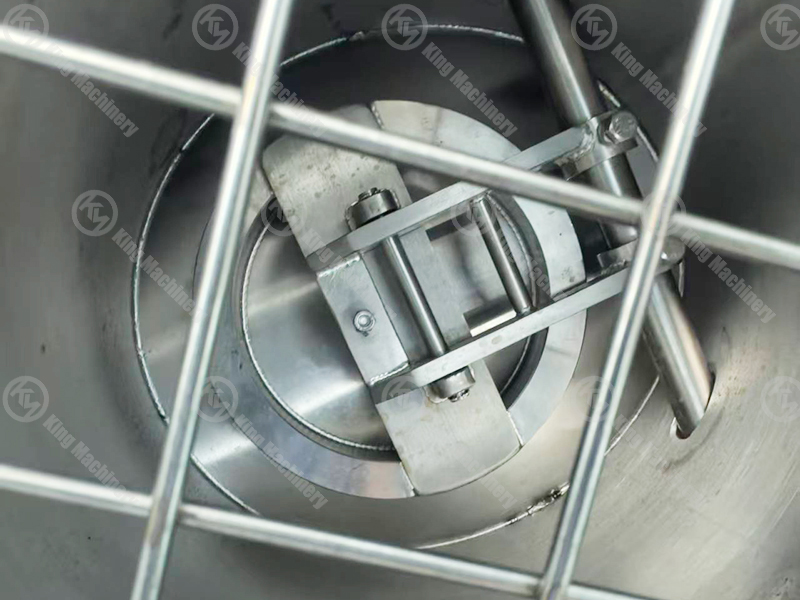

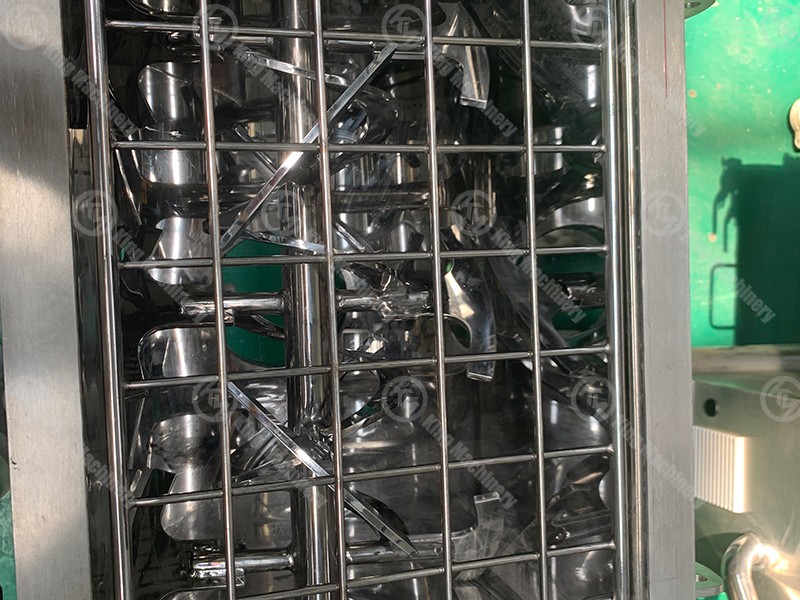

ㅤD.Grating
4. Integral shaft without welded point
5. Shaft end seal, good for water
6. Pneumatic flat valve discharging, flush with the trough bottom
7. All stainless steel construction
8. Relay control

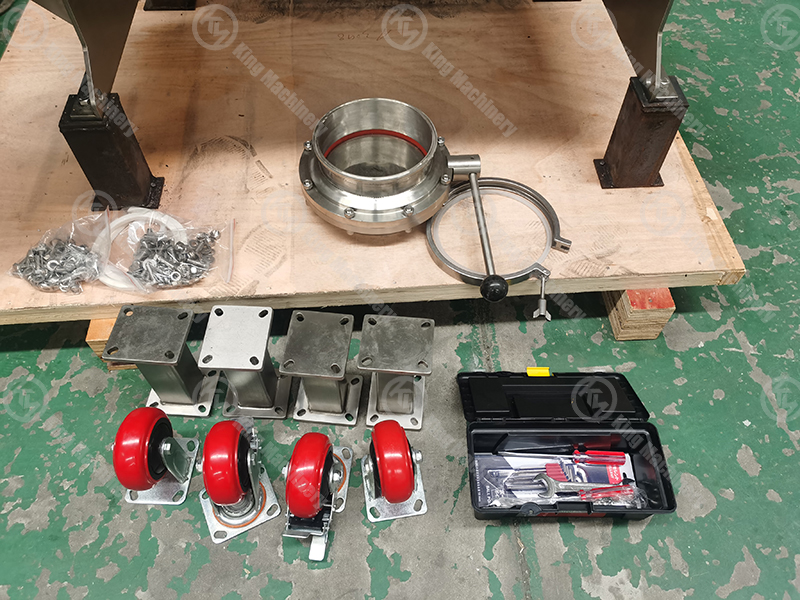

9. Optional 4 castors for moving
10. Customize Voltage and details

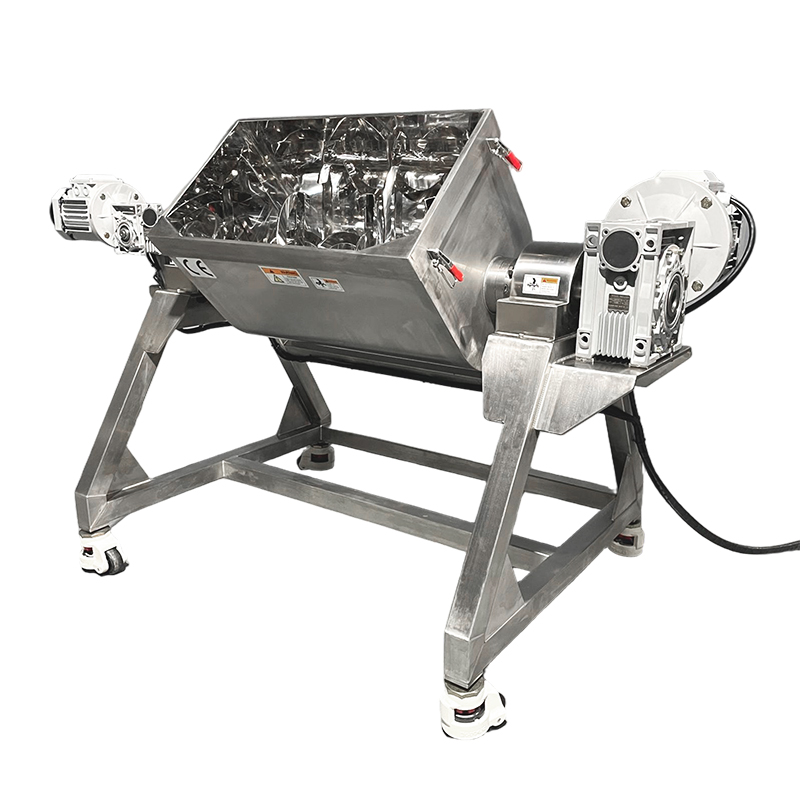

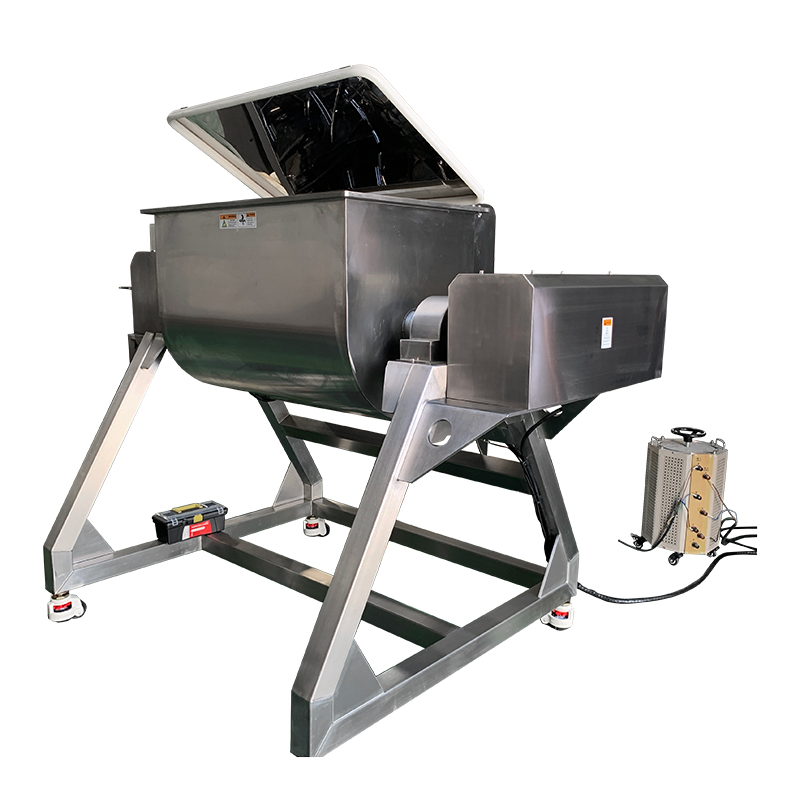

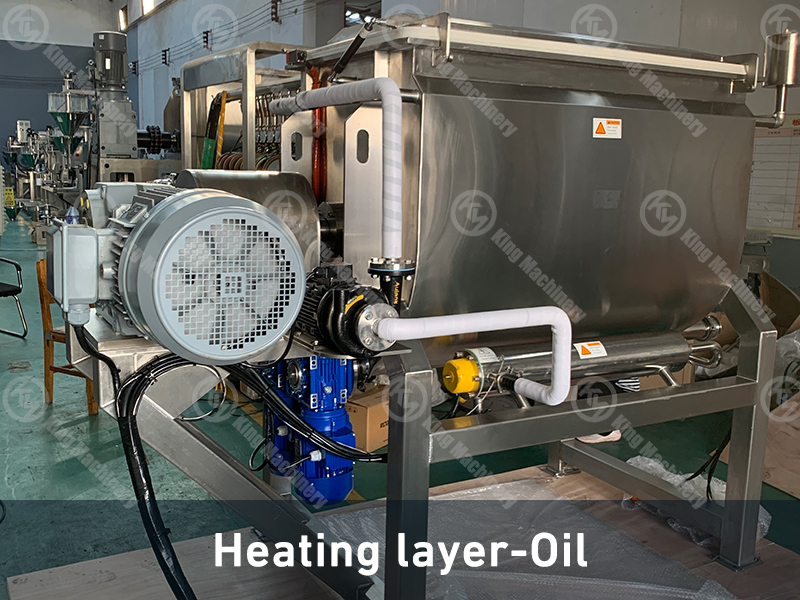

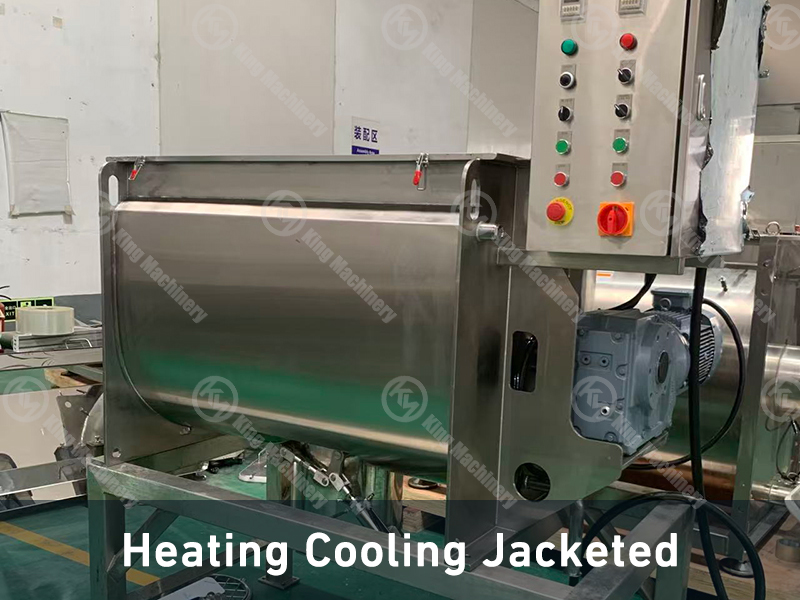

11. Customized Heating/Cooling Jacketed, Tilt Mixer
12.Lab 40L-Max 14000L

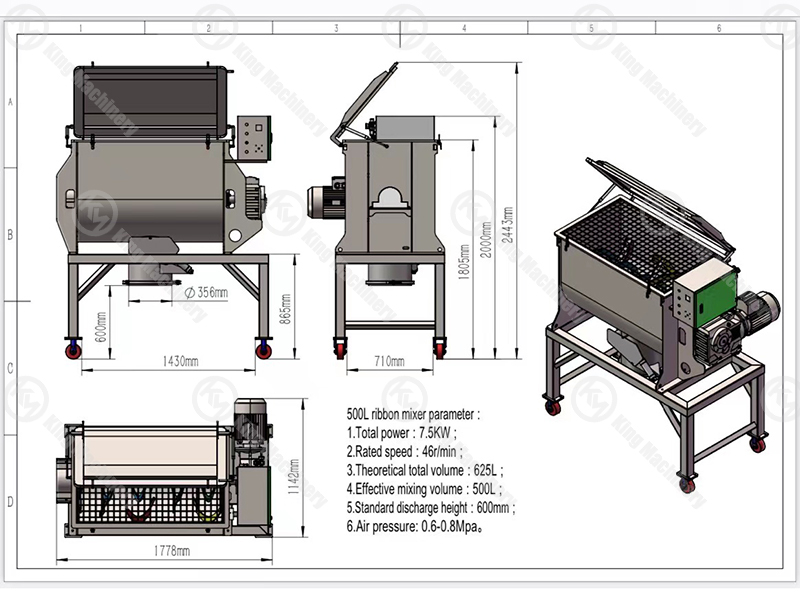

	KP 100	KP 200	KP 300	KP 500	KP 1000	KP 1500	KP 2000	KP 3000	KP 5000	KP 10000
Volume(L2)	125	250	375	625	1250	1875	2500	3750	6250	12500
Effective volume(L1)	100	200	300	500	1000	1500	2000	3000	5000	10000
Power（KW）	3	4	5.5	7.5	11	18.5	22	30	45	55
Ratio of L2 / L1	40%-80%
Speed(rpm)	46	46	46	46	38	35	30	30	28	28
Ribbon Thinckness	6	6	8	8	10	10	10	10	12	16
side thickness	8	8	8	10	10	12	12	12	14	18
tank thickness	3	3	3	3	4	4	5	6	6	8

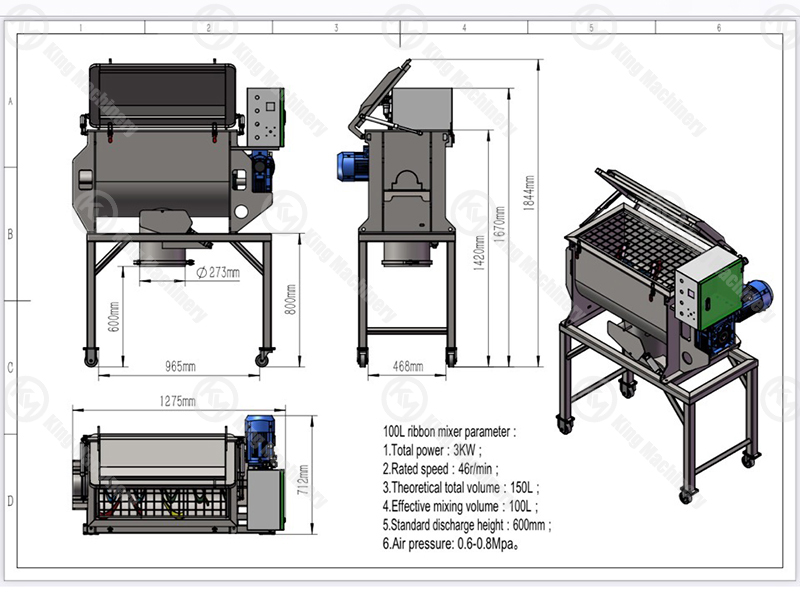

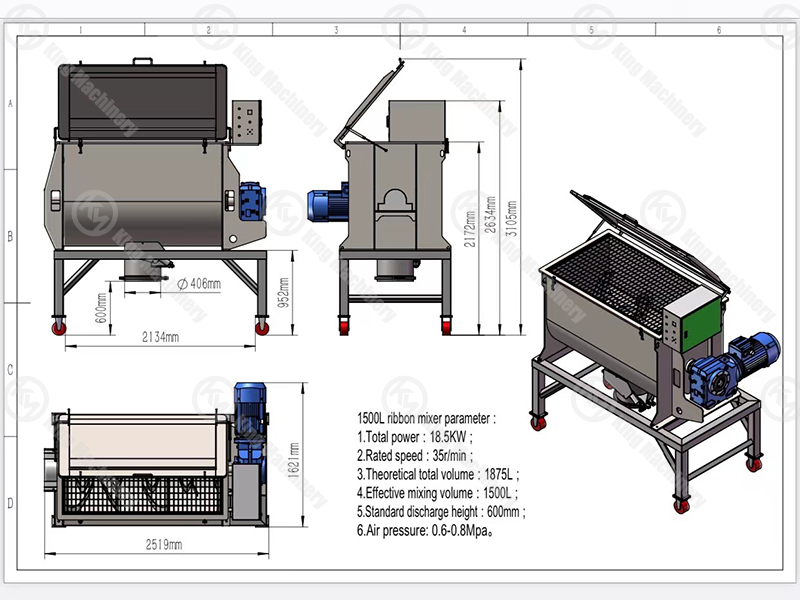

Length(mm)	1275	1356	1595	1807	2125	2600	3361	4001	4000	5515
Width(mm)	712	869	1056	1142	1391	1673	1429	1370	1500	1768
Height(mm)	1670	1765	1826	2000	2212	2414	2658	2790	2750	2400
Net Weight(kg)	210	335	355	620	965	1000	1300	1600	2100	2700
