This laboratory powder mixing system is designed for powder blending in laboratory and pilot-scale applications. It is widely used in industries such as pharmaceuticals, chemicals, food processing, and new materials for research, development, and process validation. The equipment features stable operation, reliable performance, and flexible configuration to meet different experimental requirements.

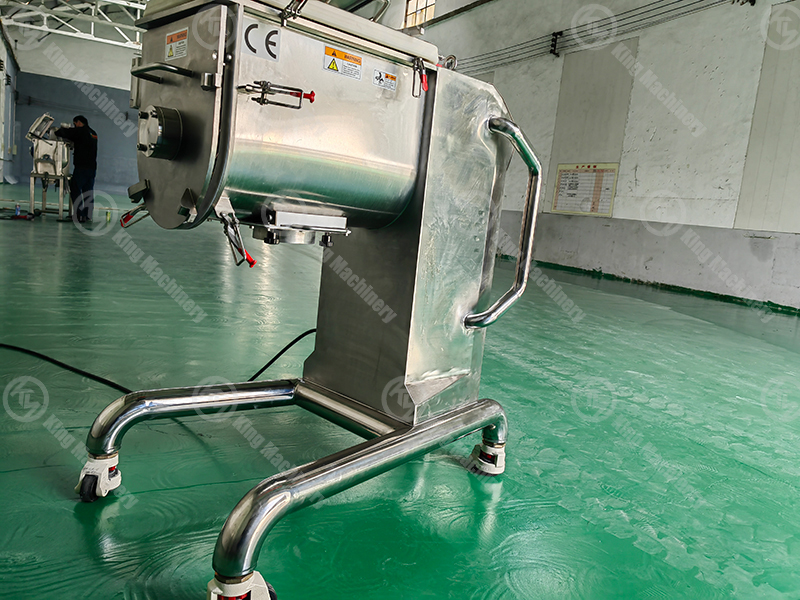

The 40L/70L ribbon mixer adopts a horizontal structure and uses counter-rotating inner and outer ribbons to create convective mixing. It is highly efficient and well-suited for powders with varying particle sizes or slight cohesiveness.

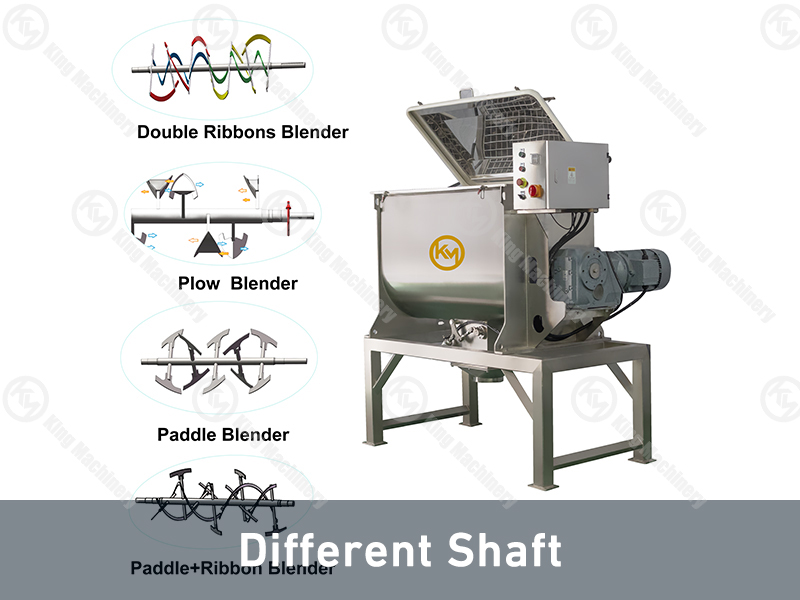

With multiple mixer types and capacities available, this laboratory powder mixing system offers wide applicability, consistent mixing results, and excellent flexibility, making it an ideal solution for powder mixing experiments and process development.

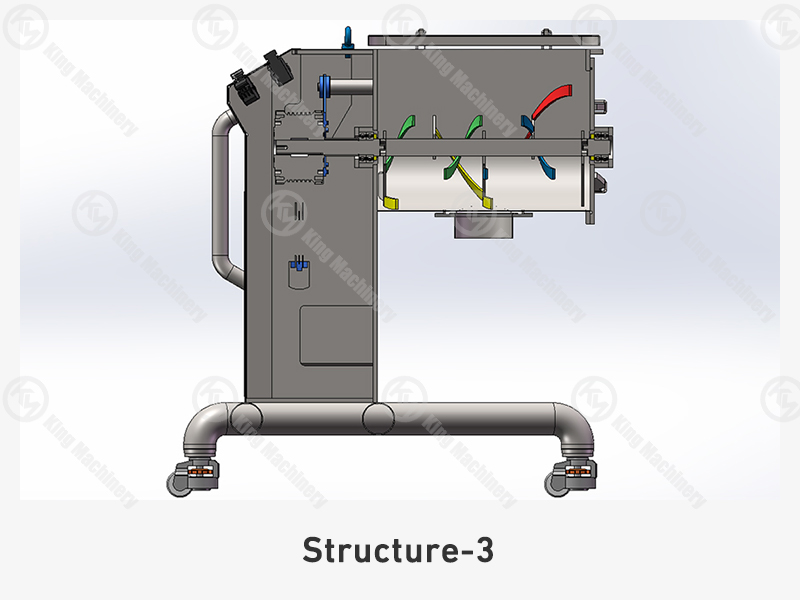

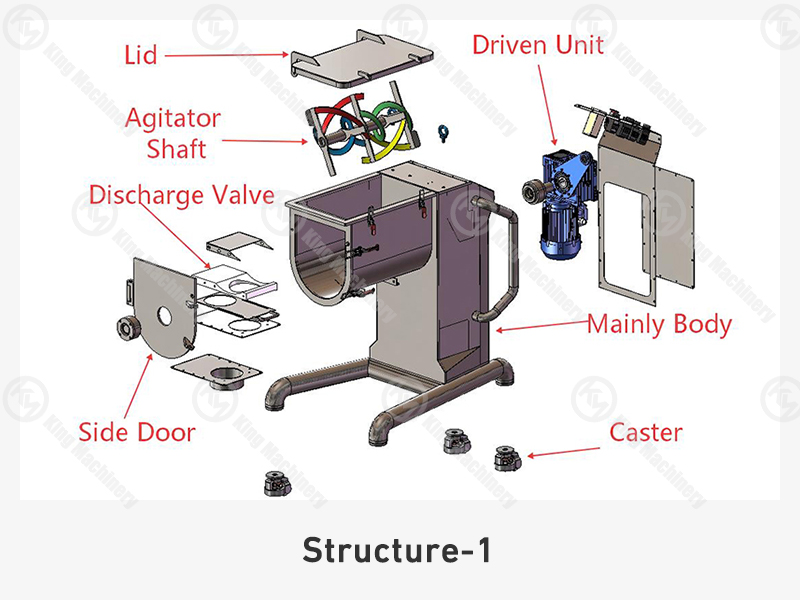

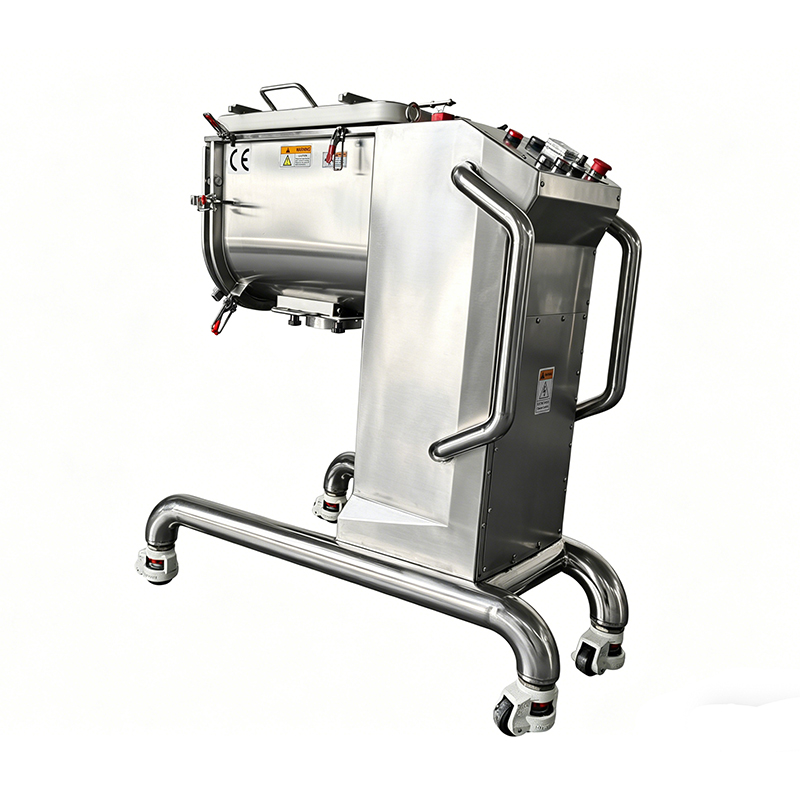

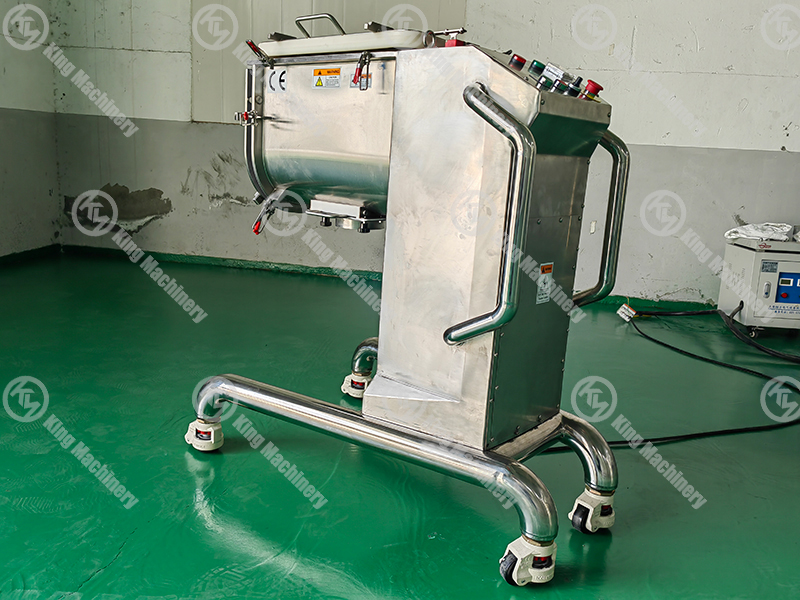

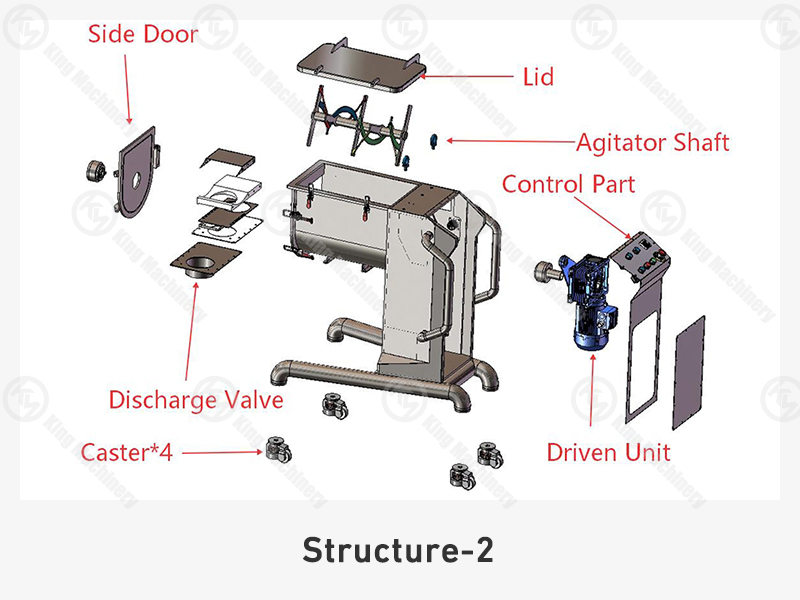

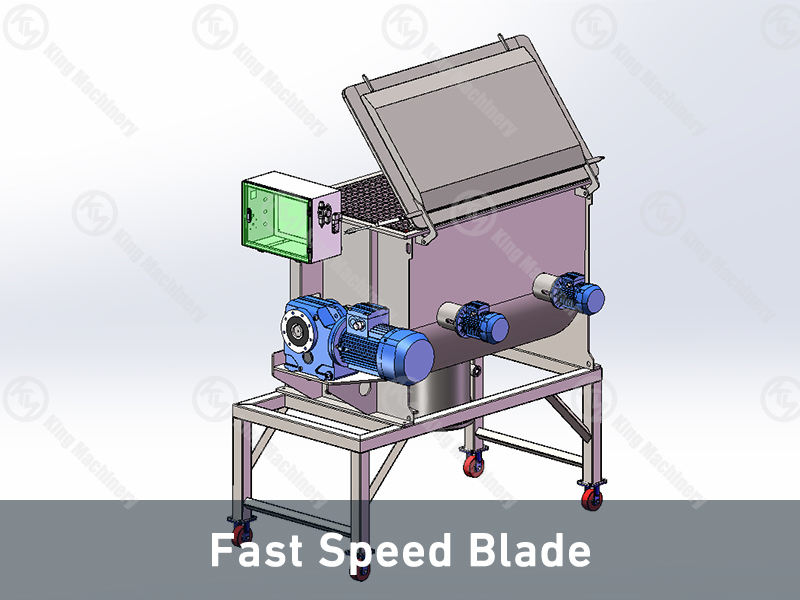

KM Lab Style Horizontal Ribbons Blender consists of U-Shape, spiral,Discharge and drive parts.
1. U-Shape trough
2. Driven Unit
3. Agitator Unit

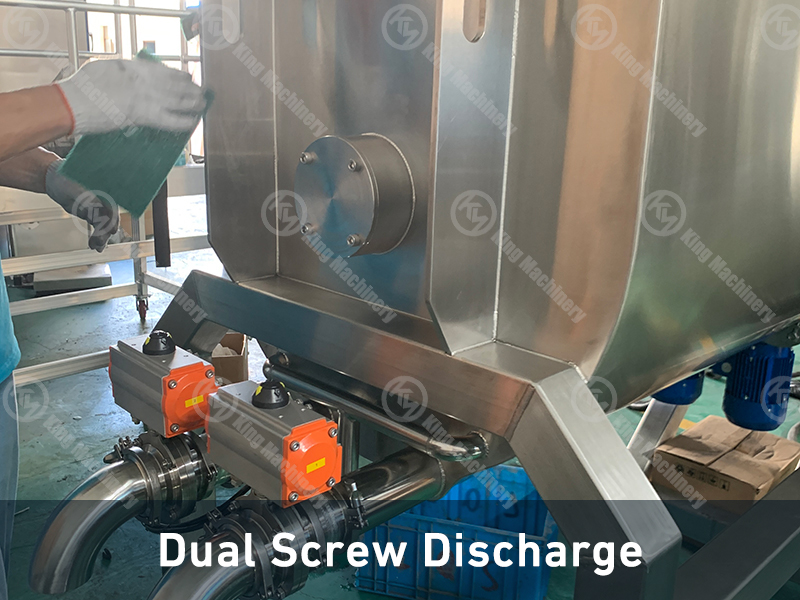

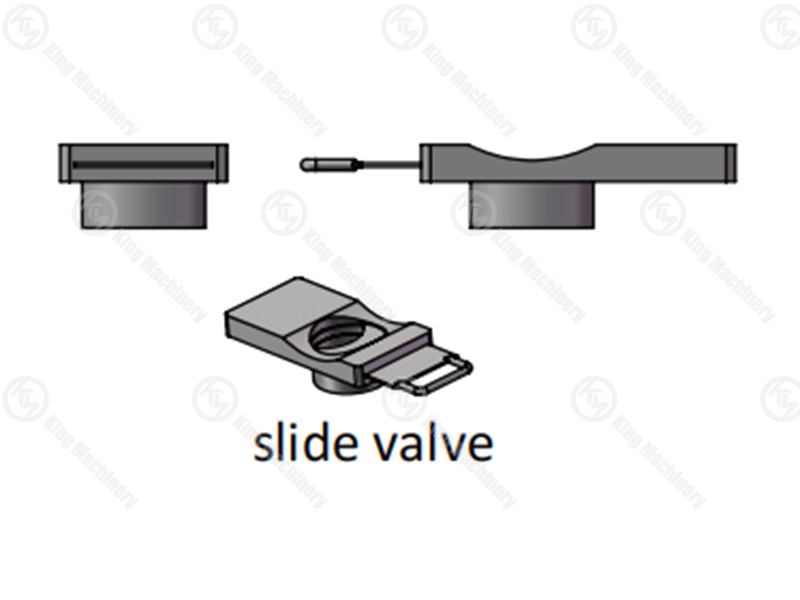

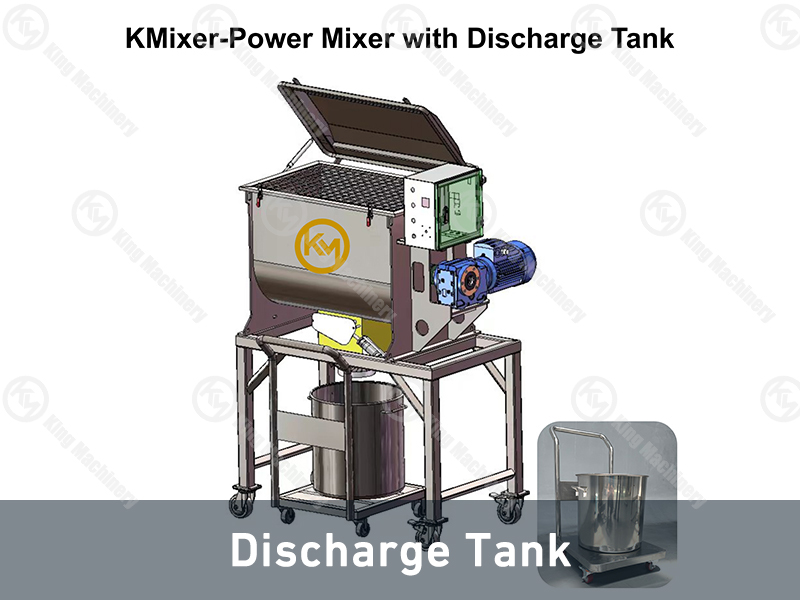

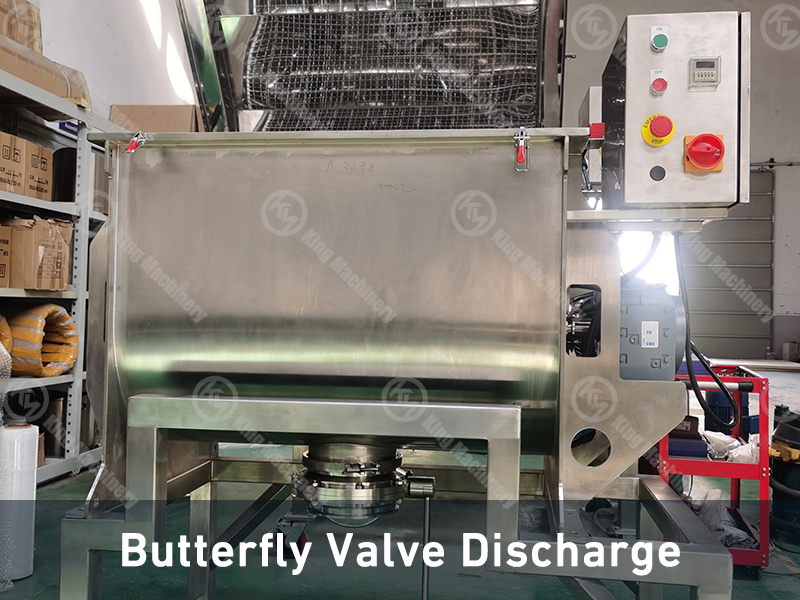

4. Discharge Unit

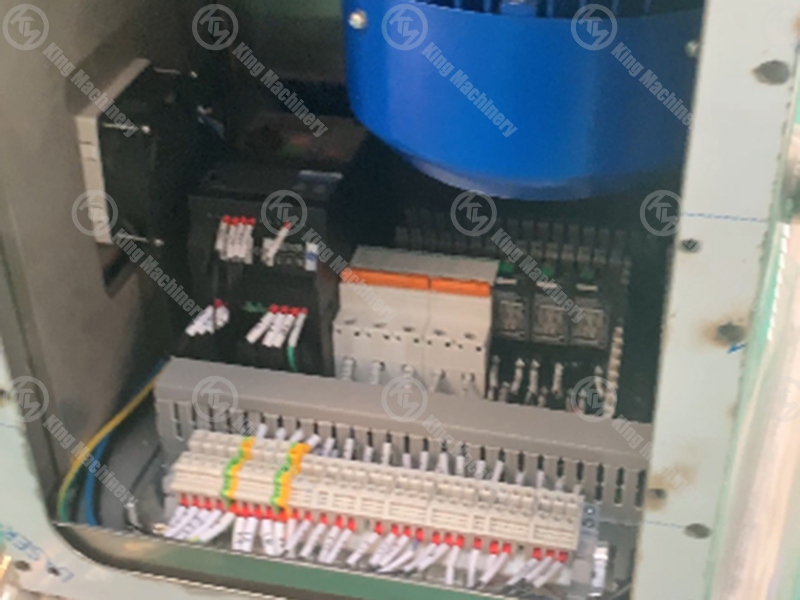

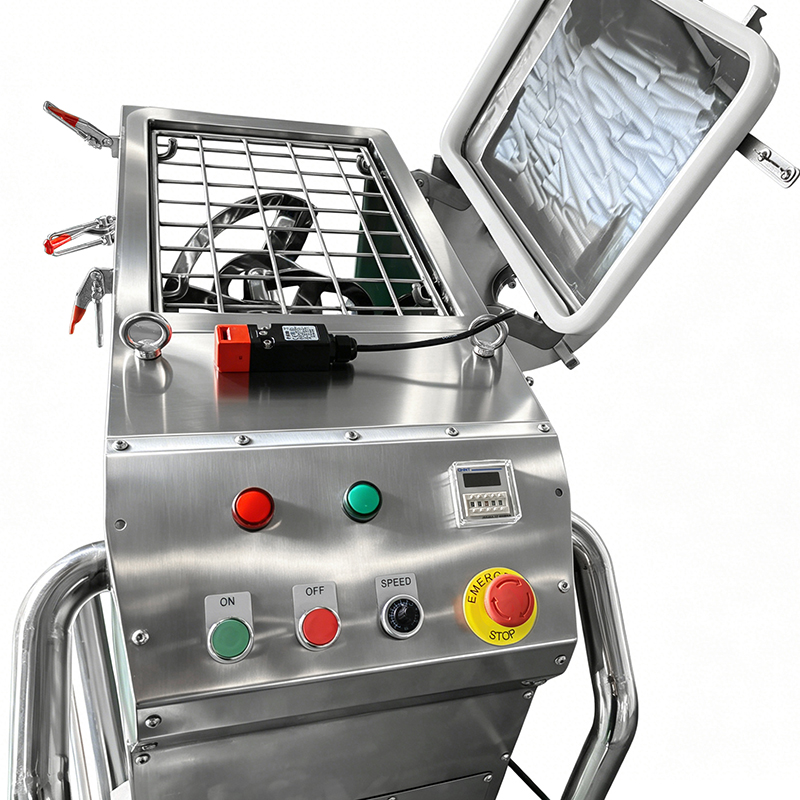

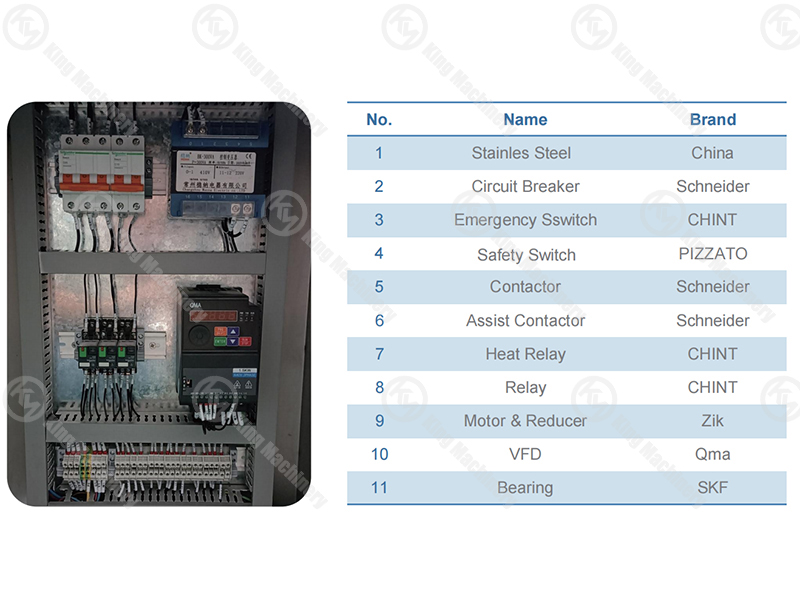

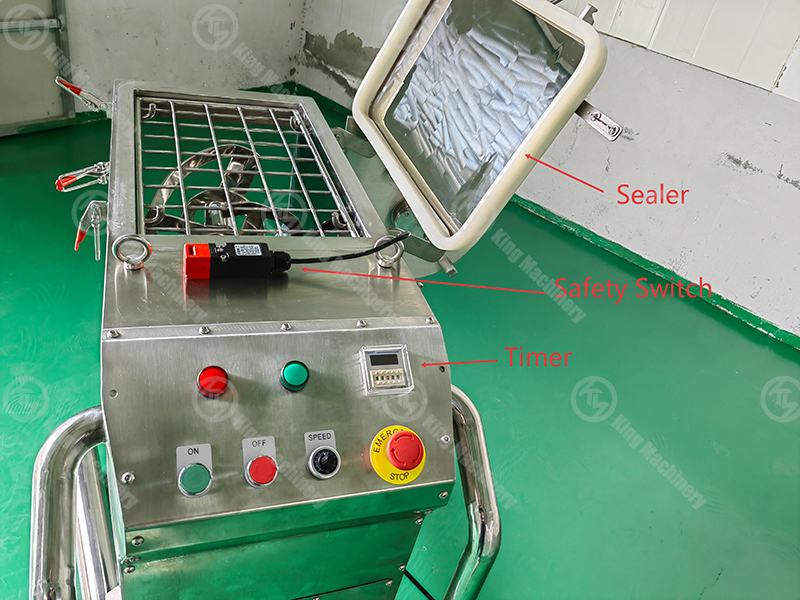

5. Electric Control Part

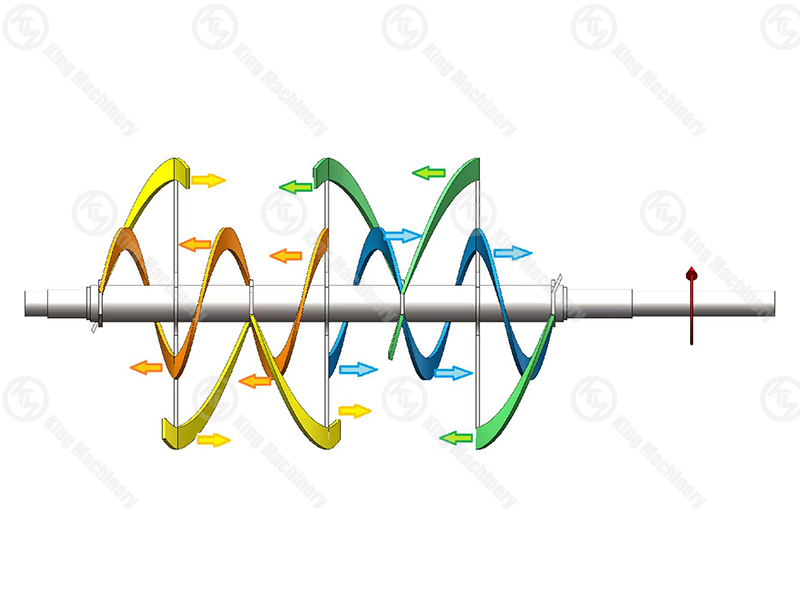

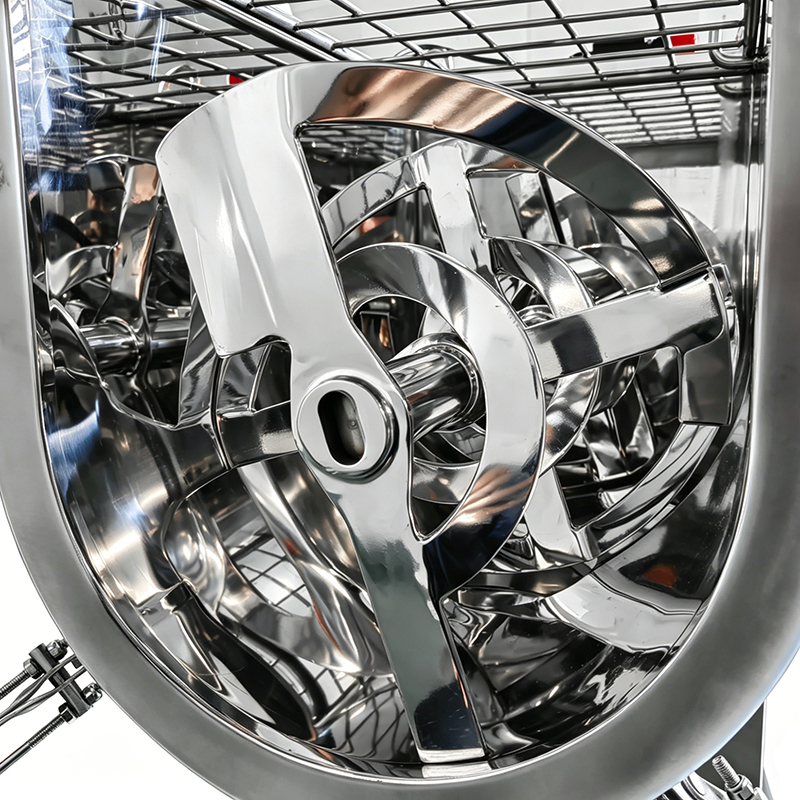

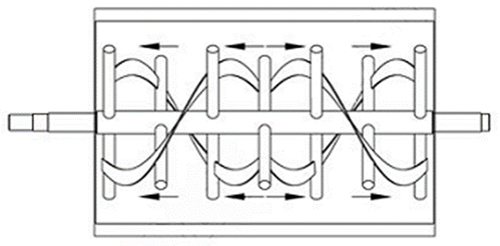

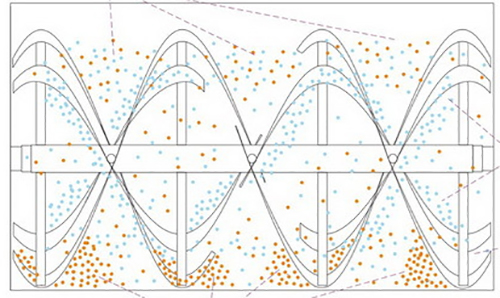

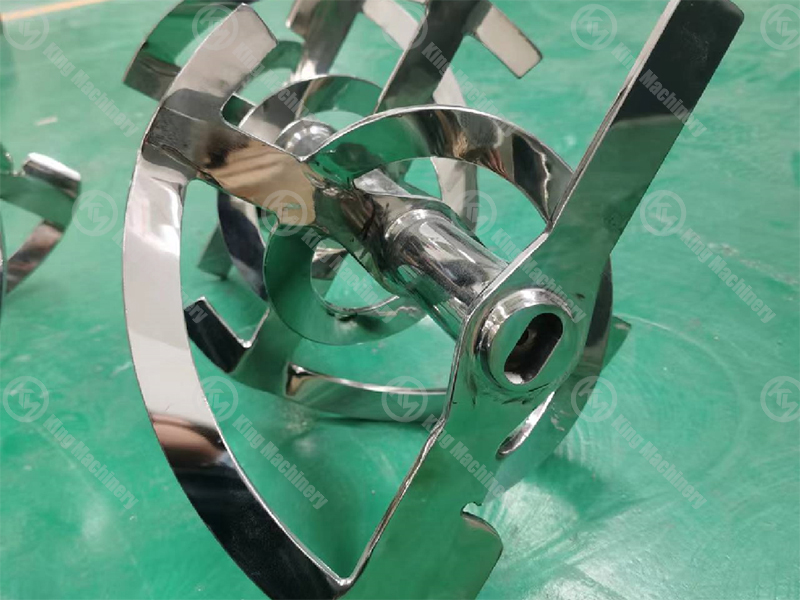

1-Double Ribbons shaft
 |
The outer ribbon pushes the material from the two sides to the center. |
 |
The inner ribbon pushes the material from the center to both sides. |

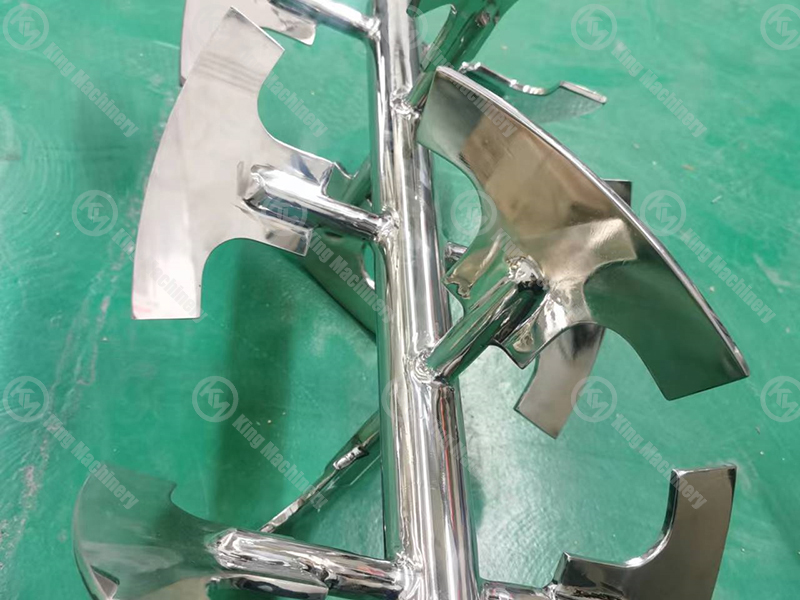

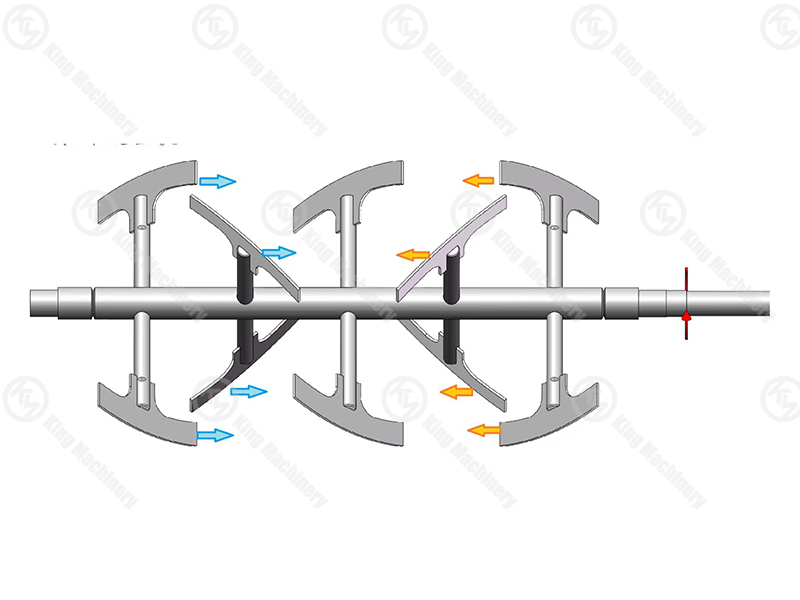

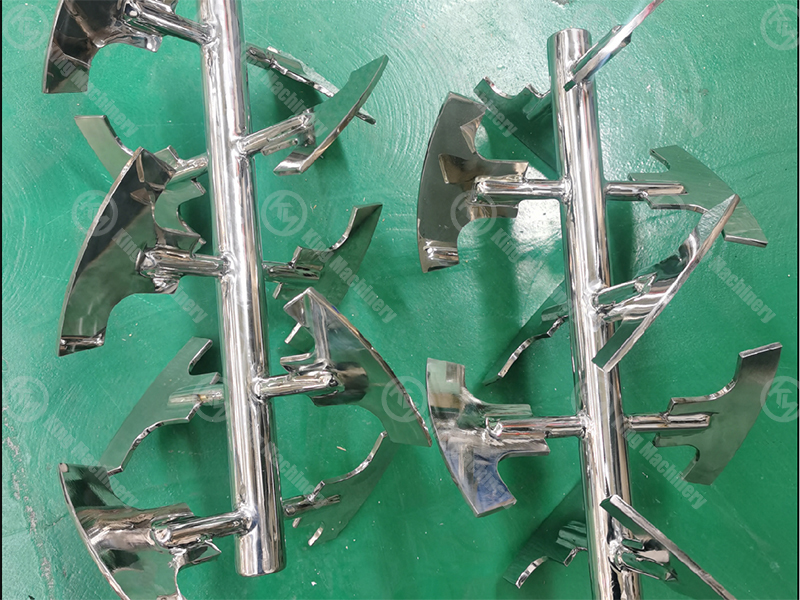

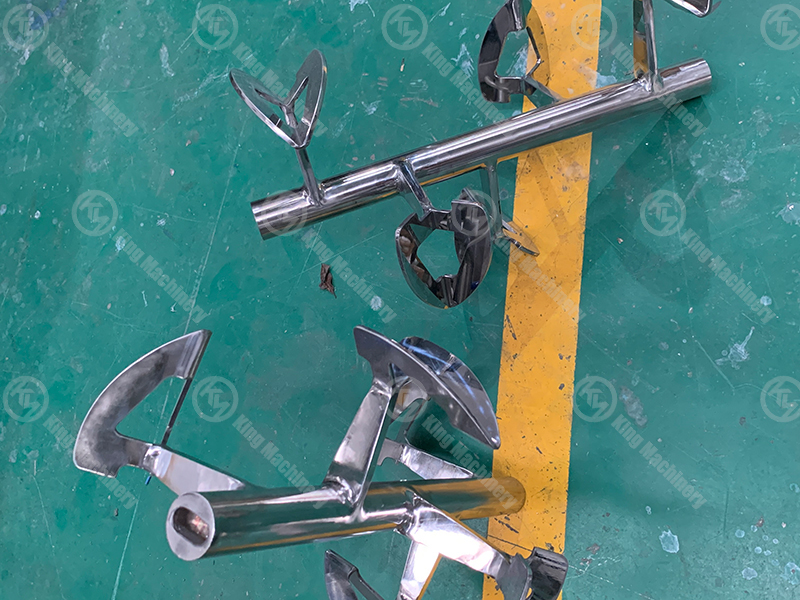

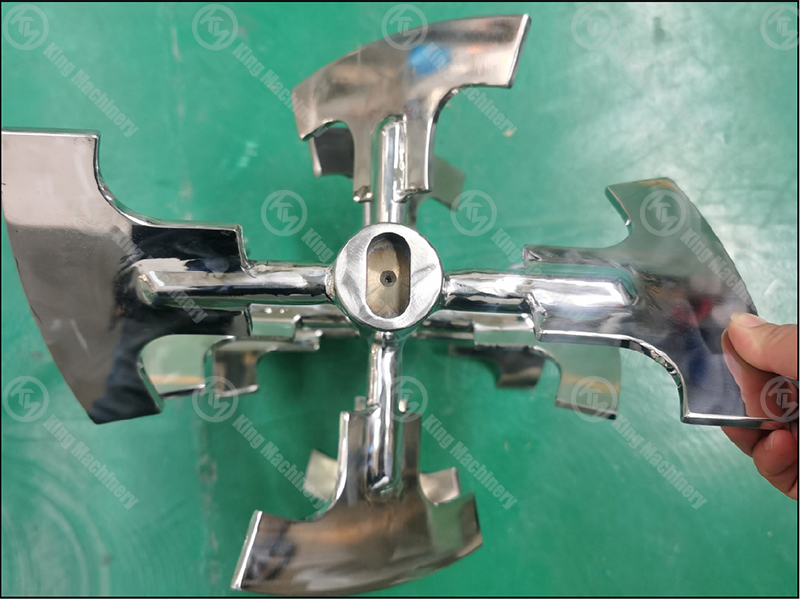

2-Paddle Shaft
During operation, the paddles create both axial mixing (end-to-end movement) and radial mixing (bottom-to-top circulation), allowing materials to be continuously lifted, dispersed, and folded throughout the mixer. This dynamic movement promotes rapid and uniform blending while minimizing dead zones.

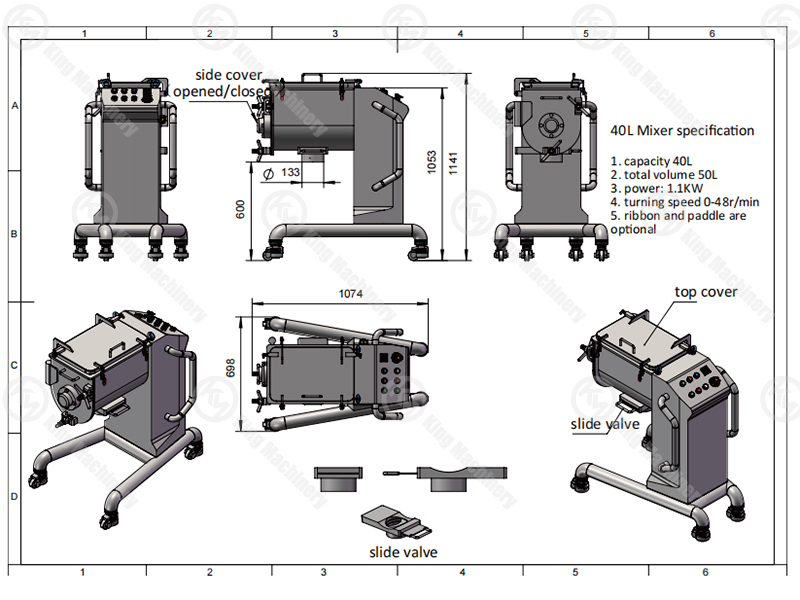

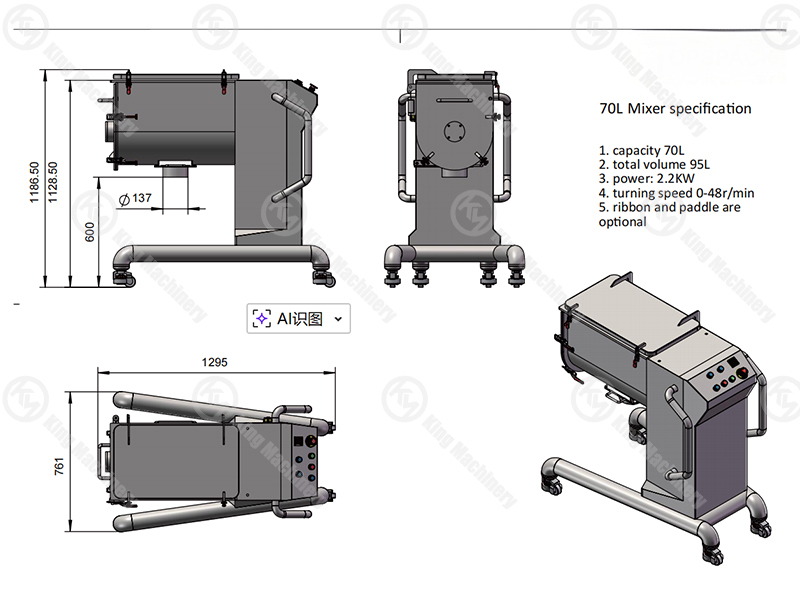

| Model | KML-40 | KML-40 |
| EffectiveVolume | 40L | 70L |
| FullyVolume | 50L | 95L |
| TotalPower | 1.1kw | 2.2W |
| TotalLength | 1074mm | 1295mm |
| TotalWidth | 698mm | 761mm |
| TotalHeight | 1141mm | 1186.5mm |
| Speed(rpm) | 0-48rpm | 0-48rpm |
| PowerSupply | 3P AC208-480V 50/60HZ | 3P AC208-480V 50/60HZ |
