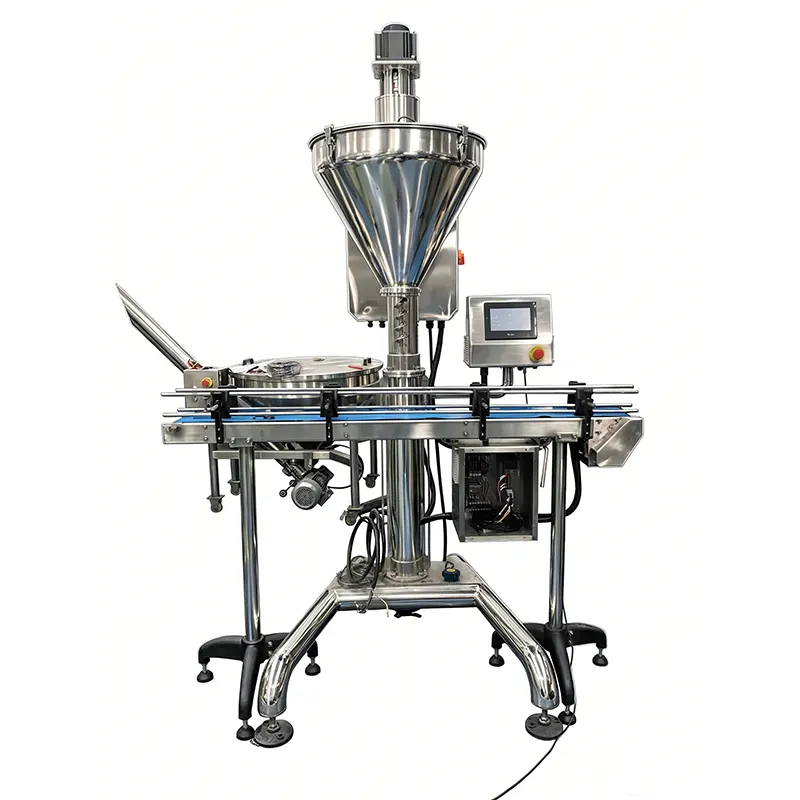

KM Fully Automatic Auger Filling Machine is designed for accurate and efficient dosing of powders and granular products. With advanced control systems and a robust mechanical structure, it delivers high filling accuracy, stable performance, and easy cleaning, making it ideal for food, pharmaceutical, chemical, and industrial applications.
High-precision servo-driven auger system ensures stable and repeatable filling results
Filling accuracy up to ±0.5–1%, depending on product characteristics
Consistent performance for free-flowing and non-free-flowing powders
2. Flexible Filling Concepts
To meet different production and compliance requirements, the system supports both:
Volumetric filling, optimized for speed and efficiency
Weighing-based filling with load cell feedback, enabling automatic weight correction and enhanced accuracy
This flexible configuration allows manufacturers to select the optimal filling strategy for each application.
3. Hygienic Design & Easy Cleaning

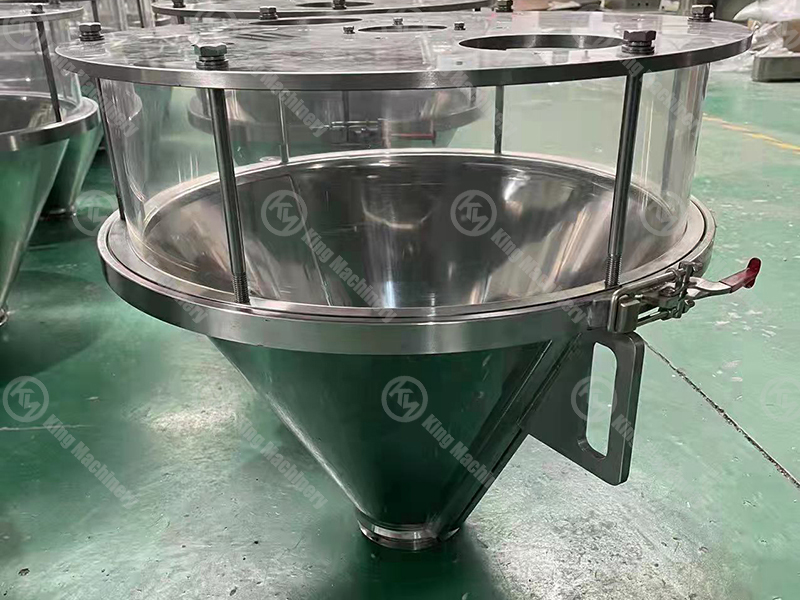

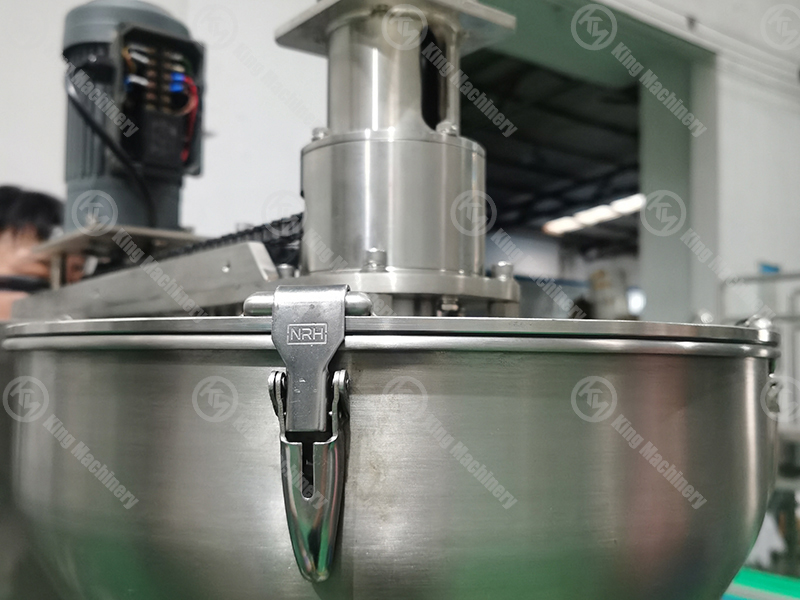

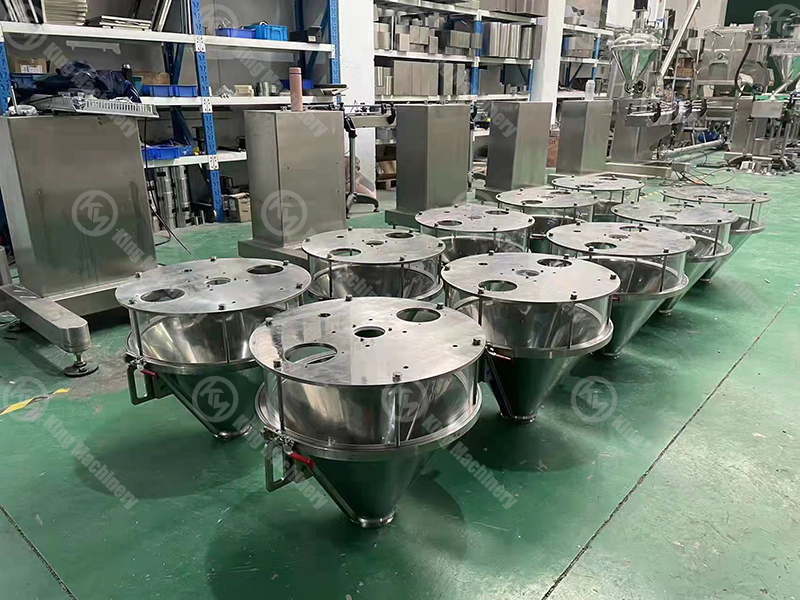

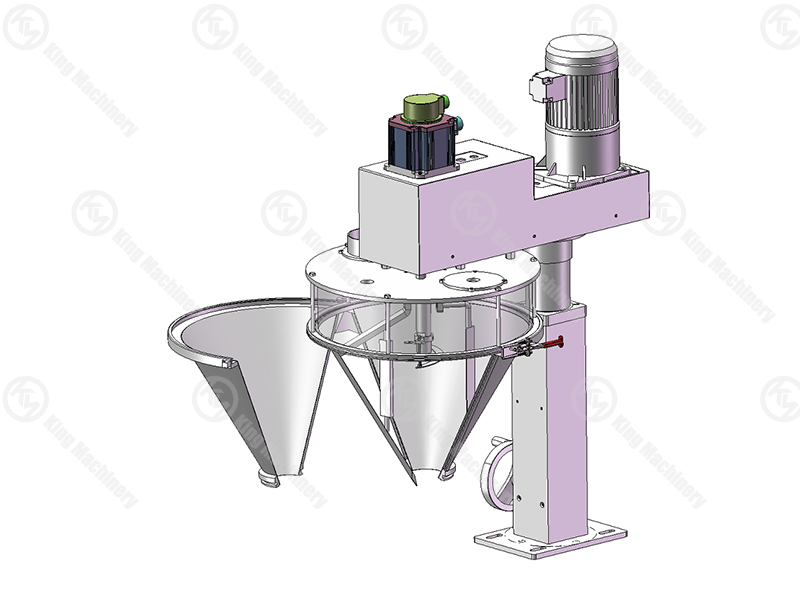

Quick-release auger and hopper design for fast disassembly
Smooth, crevice-free product contact surfaces

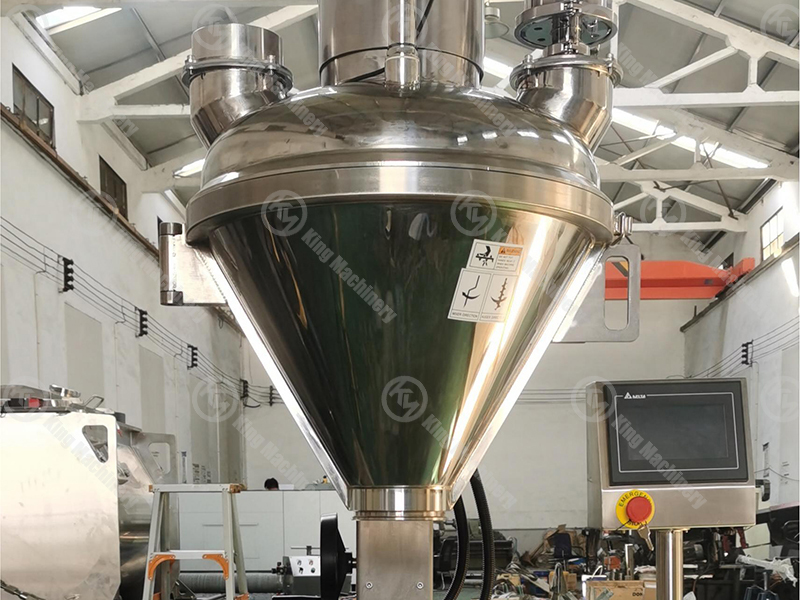

Constructed in stainless steel (SS304 / SS316 optional) to meet hygiene and durability standards
Designed to minimize product retention and simplify cleaning and changeover
4. Fully Automated, Production-Ready

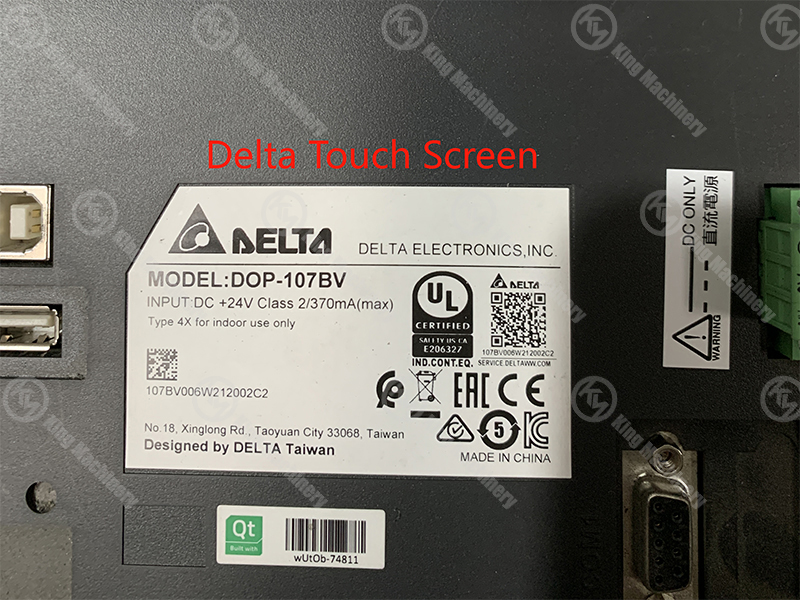

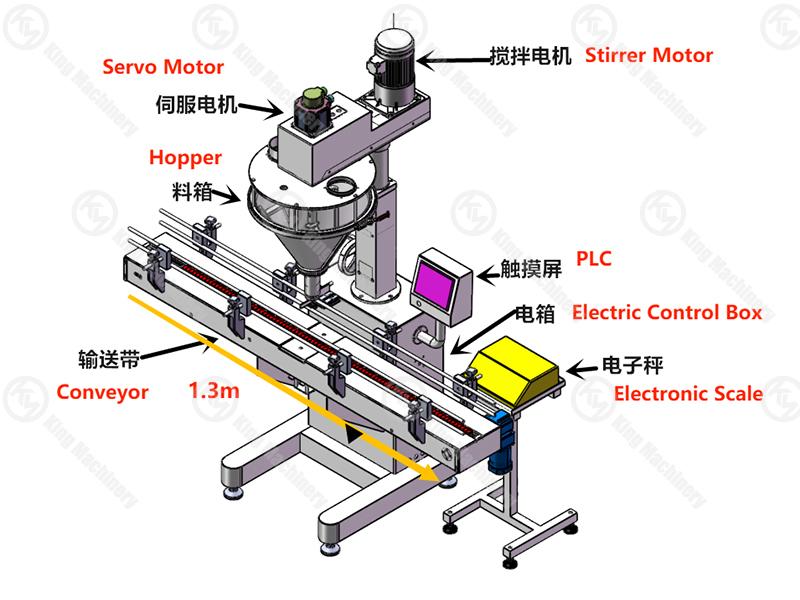

PLC-controlled system with intuitive touchscreen interface
Automatic container positioning, filling, and discharge

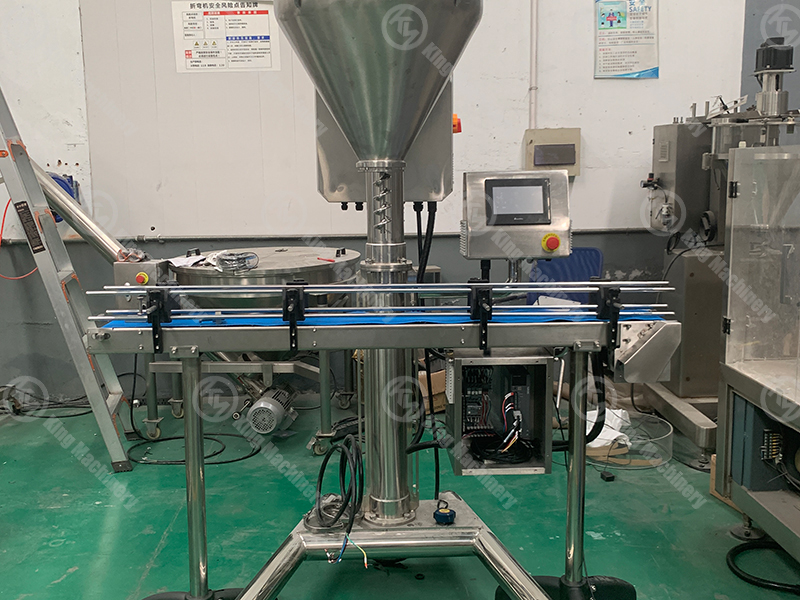

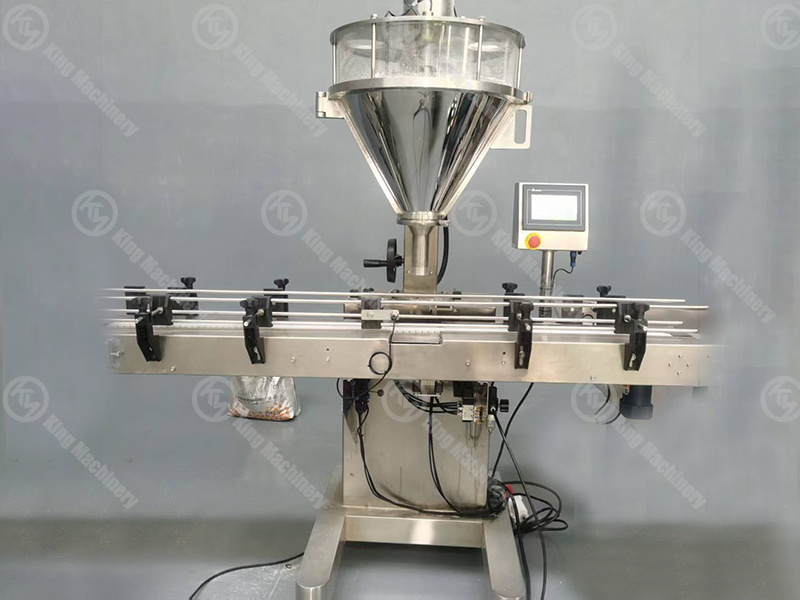

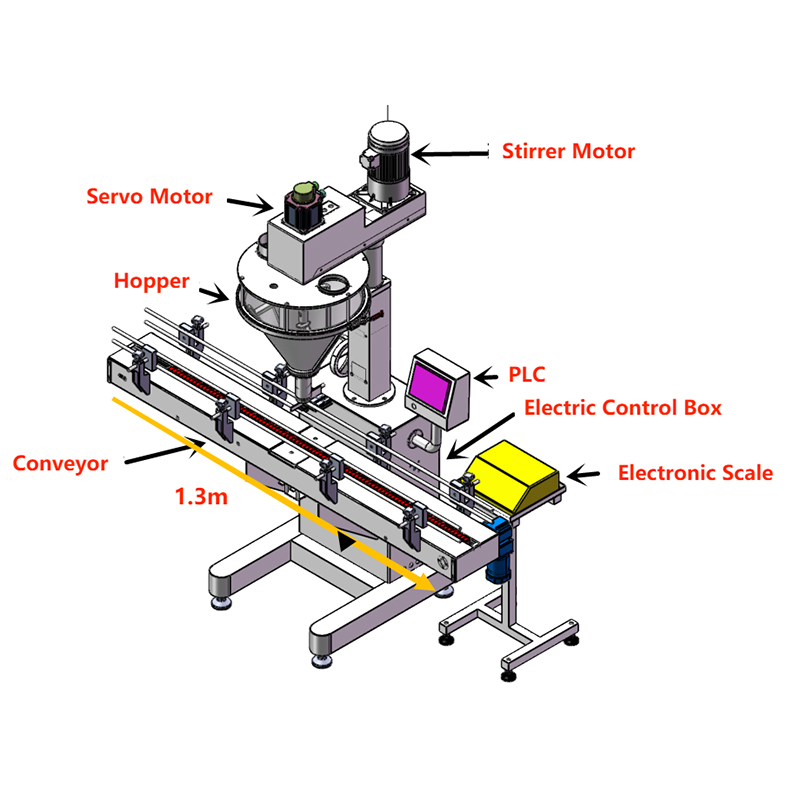

1.3m Conveyor with front and rear bottle blocking sensors and can be connected to upstream and downstream machines such as bottle unscramblers and capping machines.

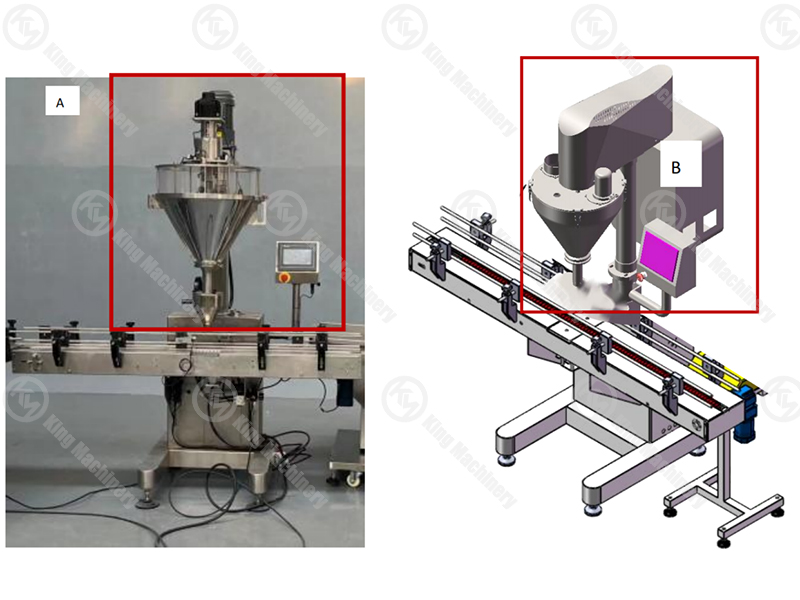

There are totally 2 kinds of the auger filler with different design.

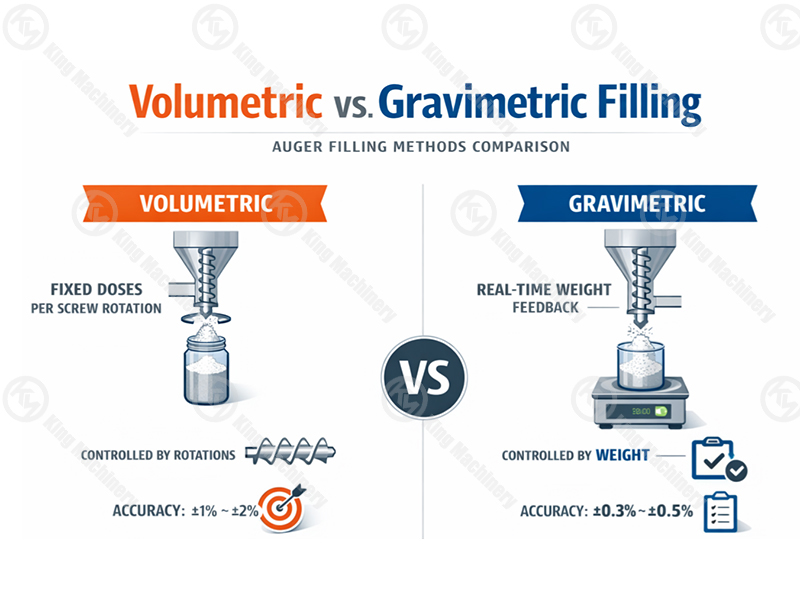

Volumetric Dosing+Load Cell Operate

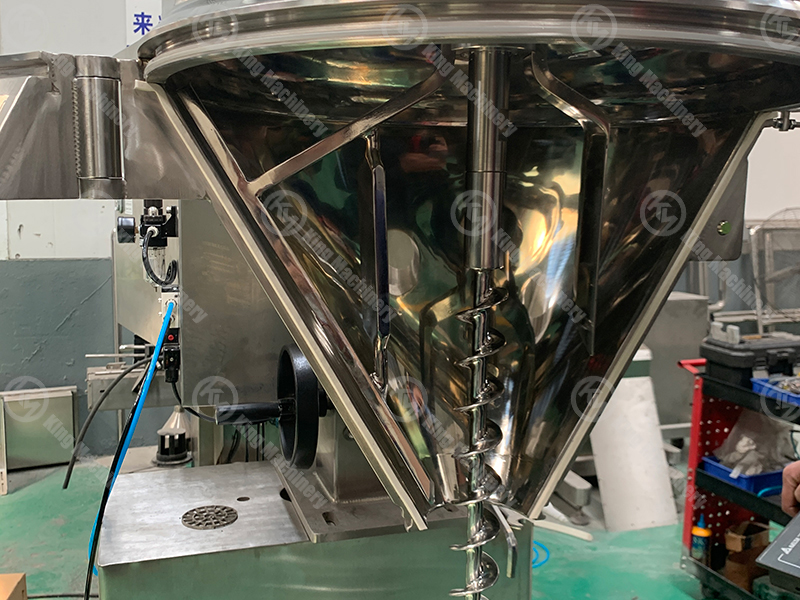

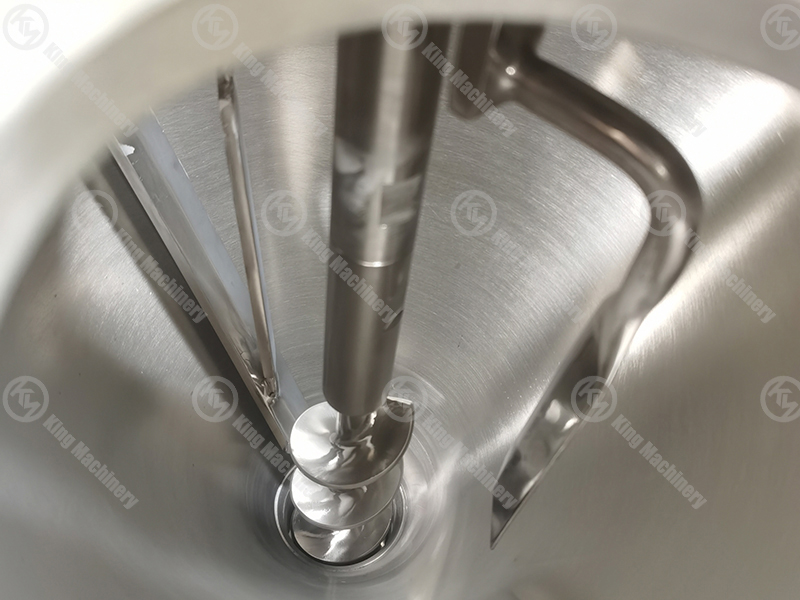

The auger filler operates on a volumetric dosing principle, where a rotating screw (auger) delivers a consistent volume of powder per revolution. By controlling the rotation speed and number of turns, precise and repeatable filling is achieved. It is especially suitable for free-flowing powders and fine granules in food, pharmaceutical, and chemical industries.

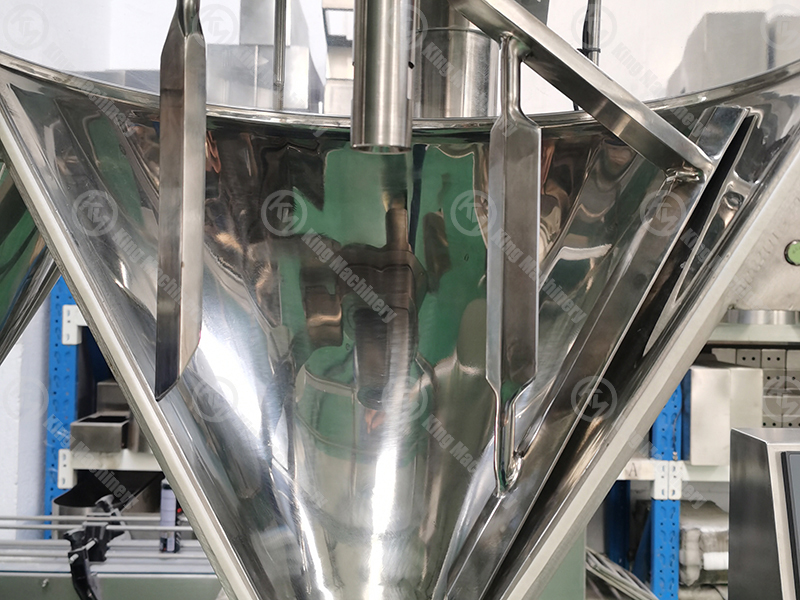

The auger filler with load cell operates on a gravimetric filling principle, combining volumetric screw feeding with real-time weight feedback. The system performs bulk filling at high speed, followed by fine filling at low speed. A load cell continuously monitors the actual weight and sends feedback to the controller, forming a closed-loop system to ensure high accuracy and consistency. This solution effectively compensates for variations in bulk density and is ideal for high-value powders requiring precise dosing.
1. Servo motor control for high filling accuracy,Accurancy +/–±0.5–1% 2. Filling weight ranges from 5g to 5000g. 3. Photoelectric sensors and servo-driven 4. SS304 5. Volumetric & Weighing Filling Options 6. Auger machined from integral working piece 7. Handwheel to adjust height 8. Full welding and split hopper 9. Recipe memory 10. No-tools change parts 11. Independent agitator driven 12. Easy auger change for different products and different weight. 13. Three different kinds design suitable for different client 14. Option Ball Valve or Centrifugal disc or Drop Valve 15. 2 years After Sale Service 16. Share Testing Video before delivering

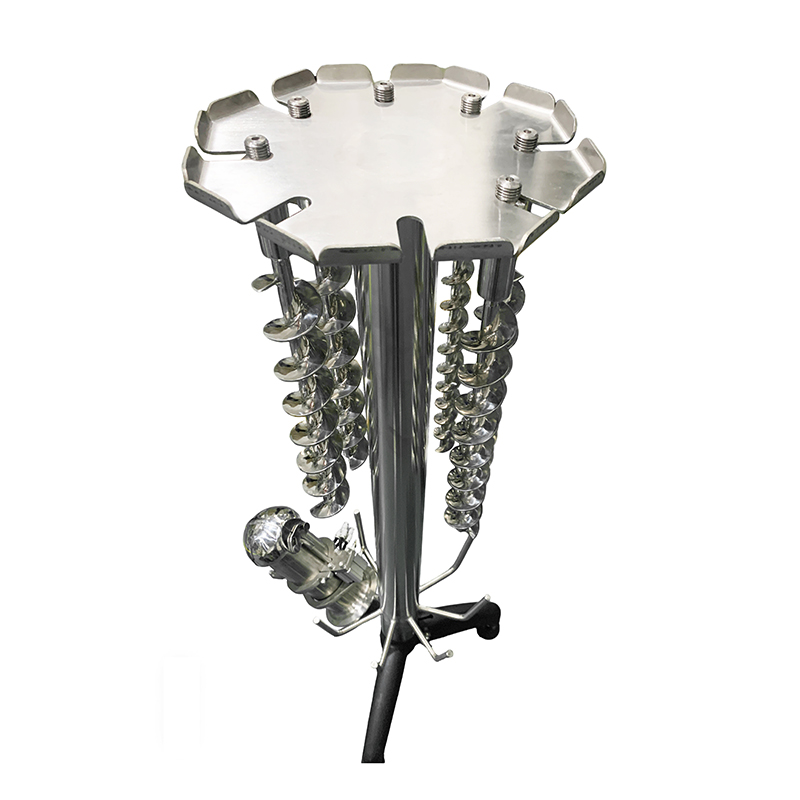

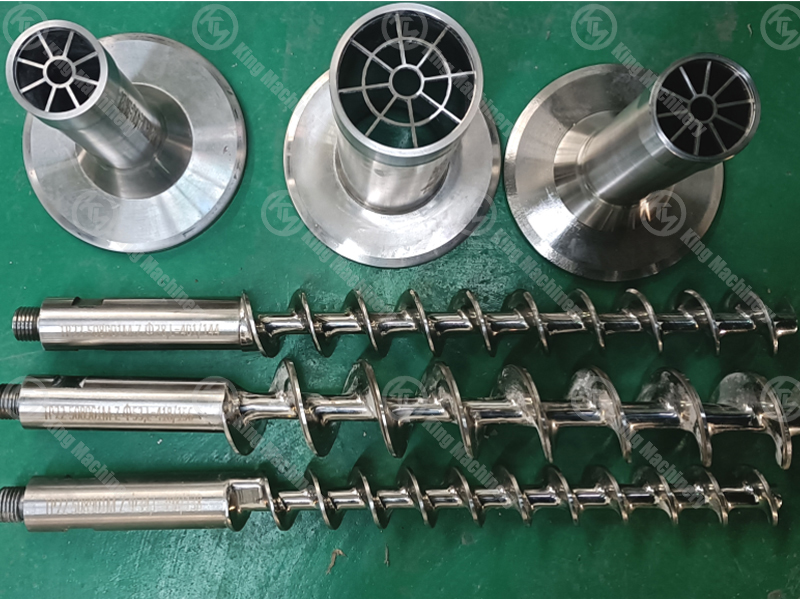

screw size and corresponding filling weight range
No.
No.
inner dia.of
tube
outer dia.of
tube
Filling range
1
8#
8
12
2
13#
13
17
3
19#
19
23
5-20g
4
24#
24
28
10-40g
5
28#
28
32
25-70g
9
34#
34
38
50-120g
7
38#
38
42
100-250g
8
41#
41
45
230-350g
9
47#
47
51
330-550g
10
53#
53
57
500-800g
11
59#
59
65
700-1100g
12
64#
64
70
1000-1500g
13
70#
70
76
1500-2500g
14
77#
77
83
2500-3500g
15
83#
83
89
3500-5000g
1. Ball Valve for the free-flow Material

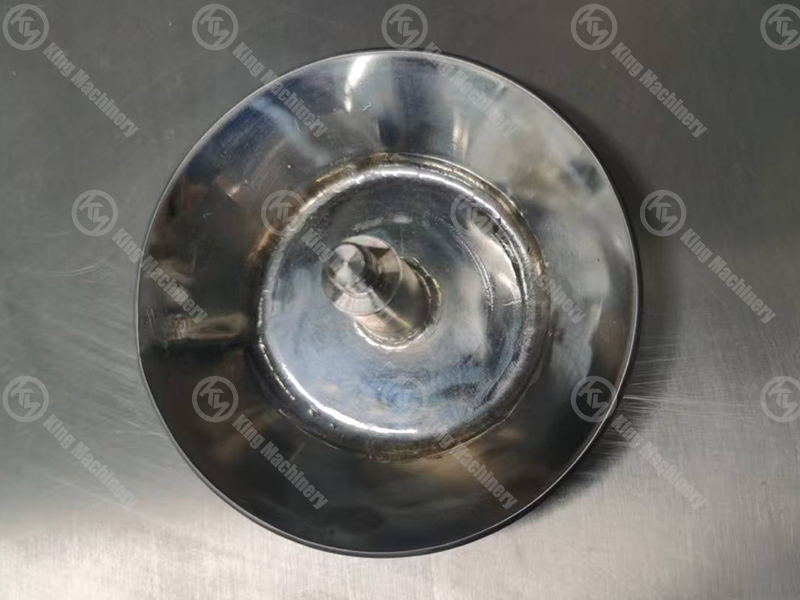

2. Centrifugal Disc+Hopper for free-flow Material
3. Double Heads Filler

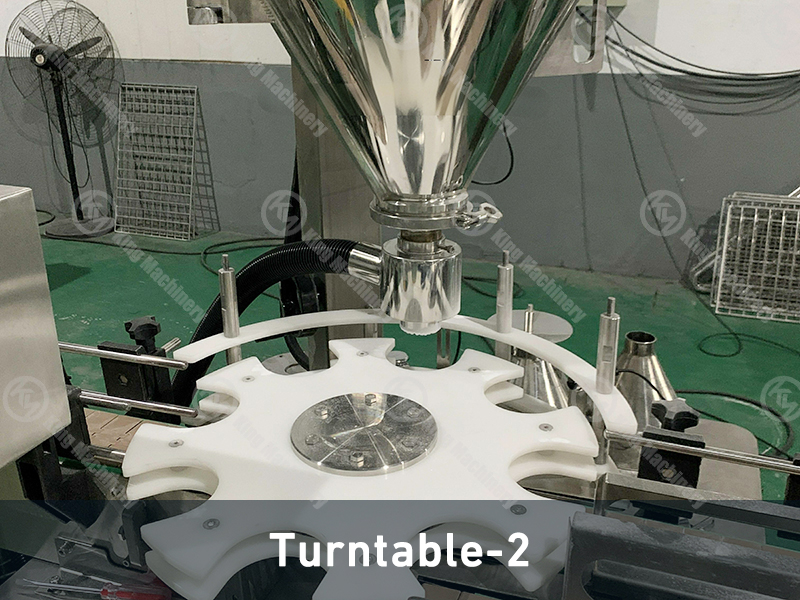

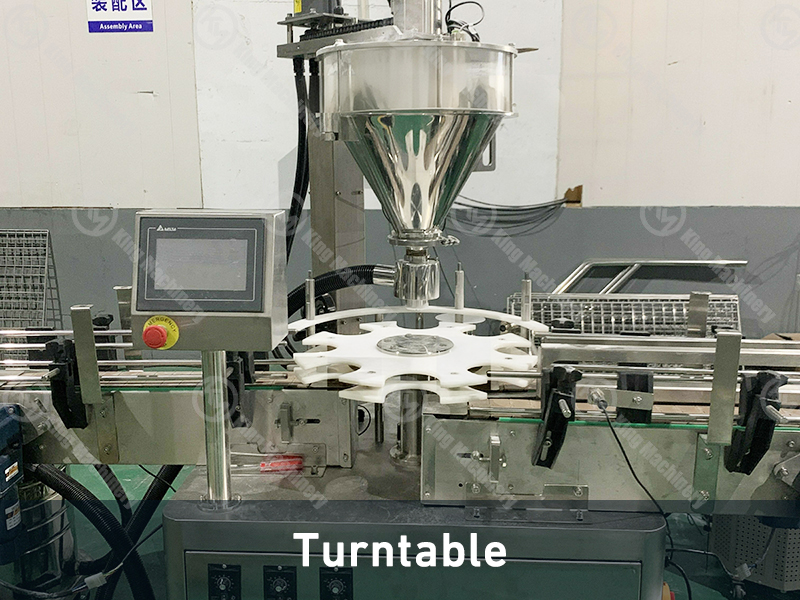

4. Turntable Design
