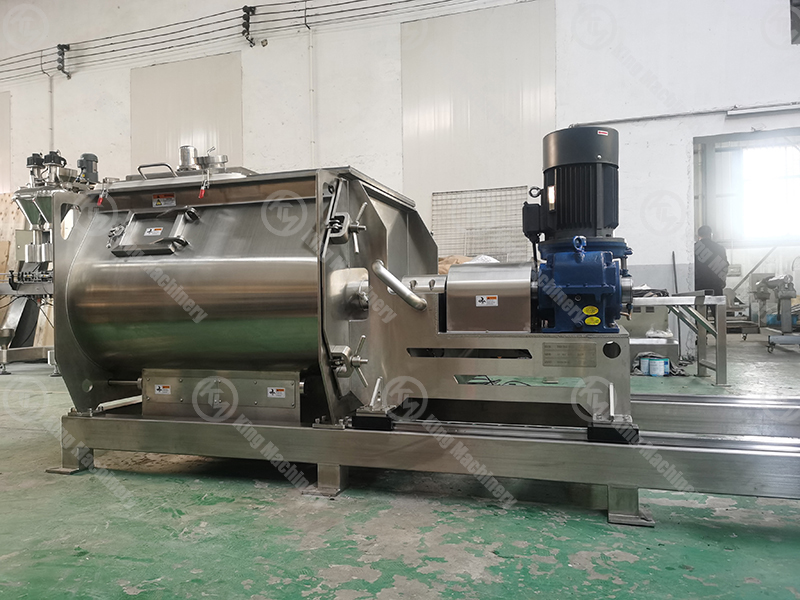

KM Double Shafts Paddle Mixer

The Double Shaft Paddle Mixer is a high-efficiency horizontal mixing machine designed for fast and uniform blending of powders, granules, and low-viscosity materials. Equipped with two counter-rotating paddle shafts, the mixer creates a fluidized mixing zone, ensuring rapid dispersion and excellent homogeneity within a short time.

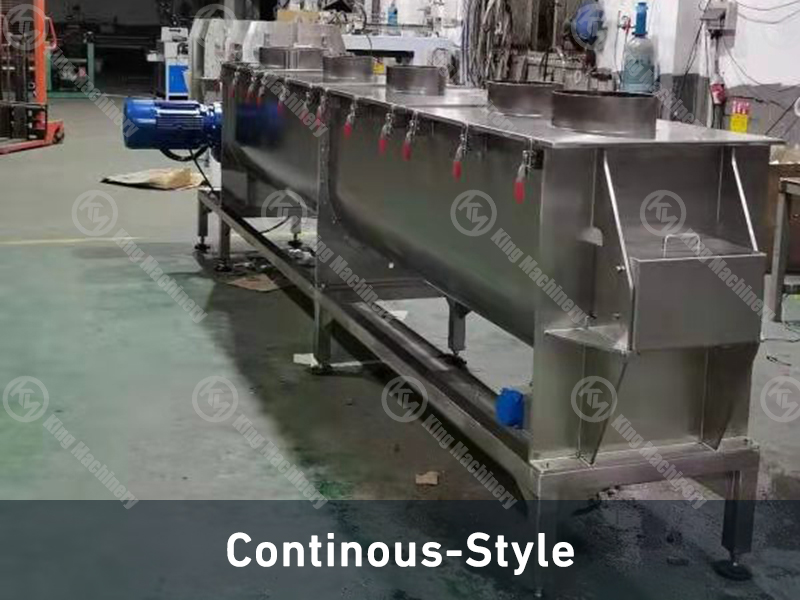

This machine is widely used in industries such as food, chemicals, fertilizers, pharmaceuticals, and building materials. It is especially suitable for continuous production processes and large-capacity mixing applications.
With its robust structure, low energy consumption, and customizable design, the twin shaft paddle mixer provides reliable performance for both batch and continuous mixing operations.
Typical Applications
· Food (flour, spices, additives)
· Chemicals (resins, powders, pigments)
· Fertilizers (NPK, granules)
· Pharmaceuticals (powder blending)
· Construction materials (dry mortar, cement)

Phone：+86-13196722769

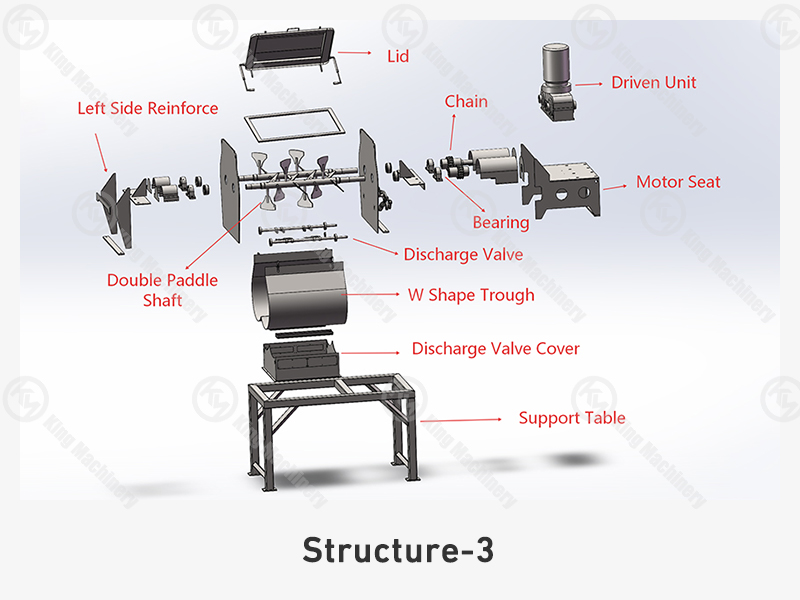

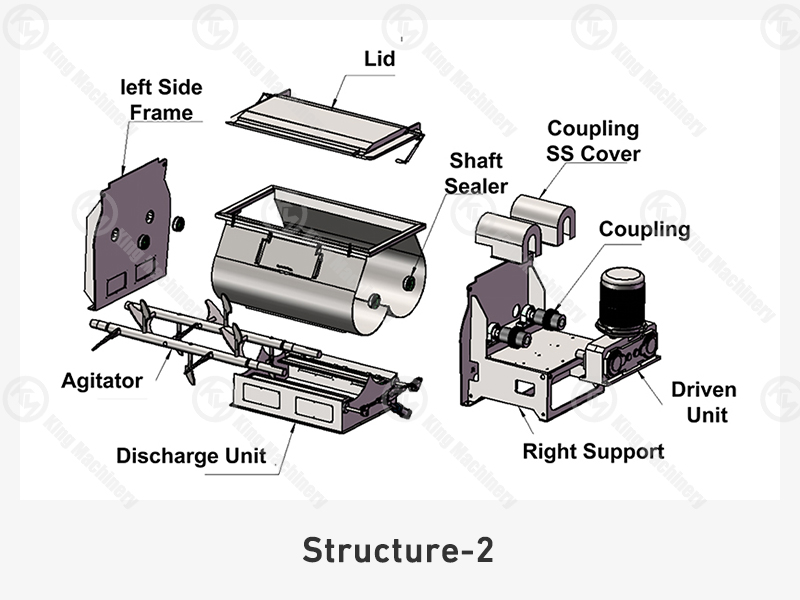

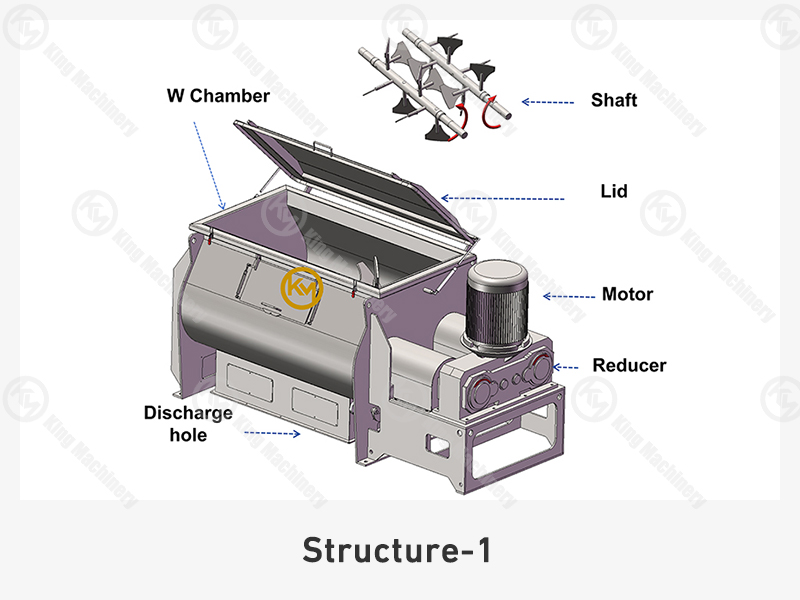

The KM Double Shaft Paddle Mixer is designed with a robust and efficient structure to ensure fast mixing, uniformity, and long service life. Its core structure consists of the following key components:Mixing Chamber

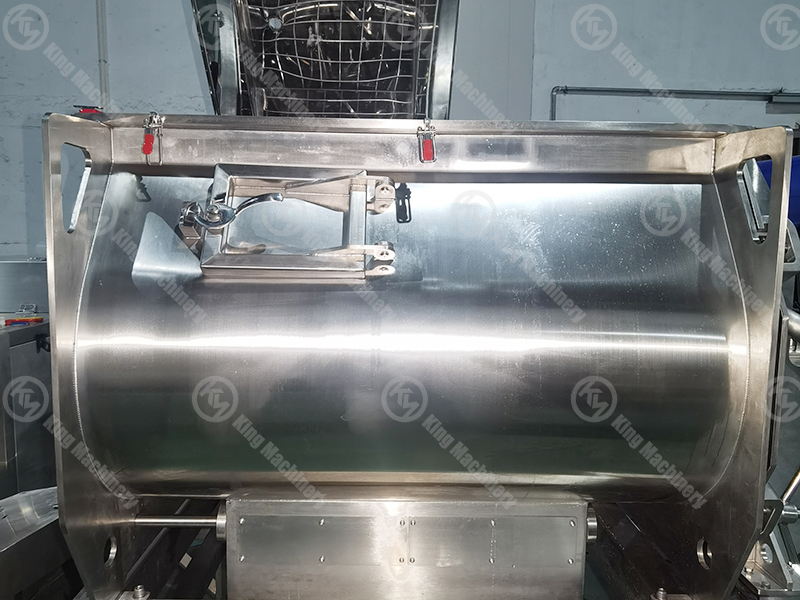

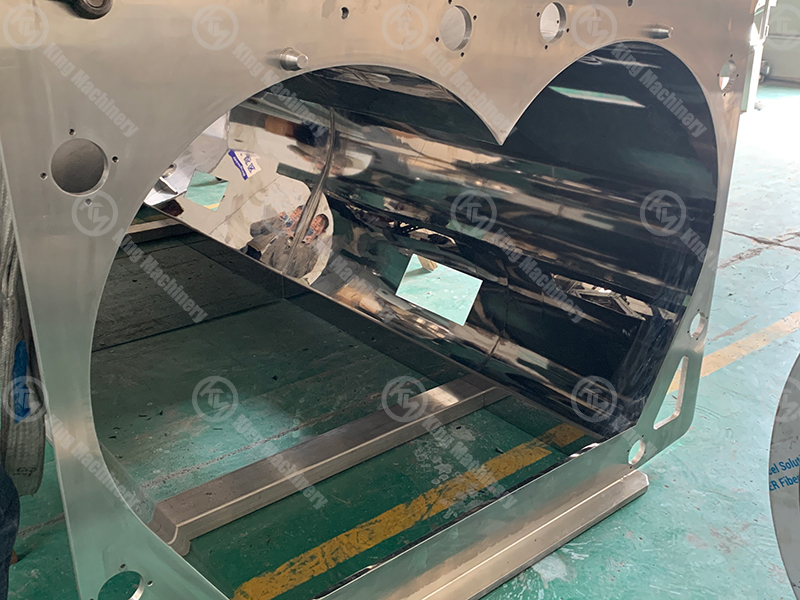

1. Mixing Chamber

Brushed Outerside, Sanitary Polished Innerside

Robust Structure

SS304/SS316/SS316L/Teflon Coating

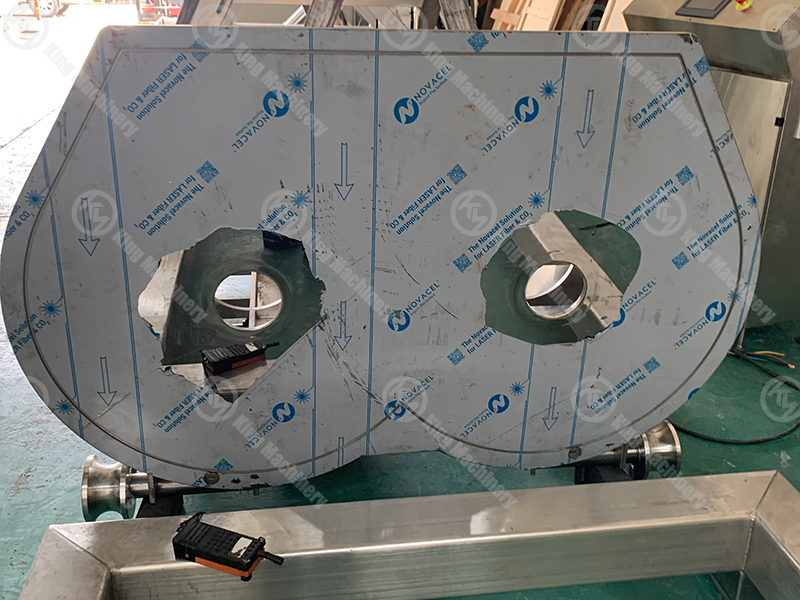

W shape Trough

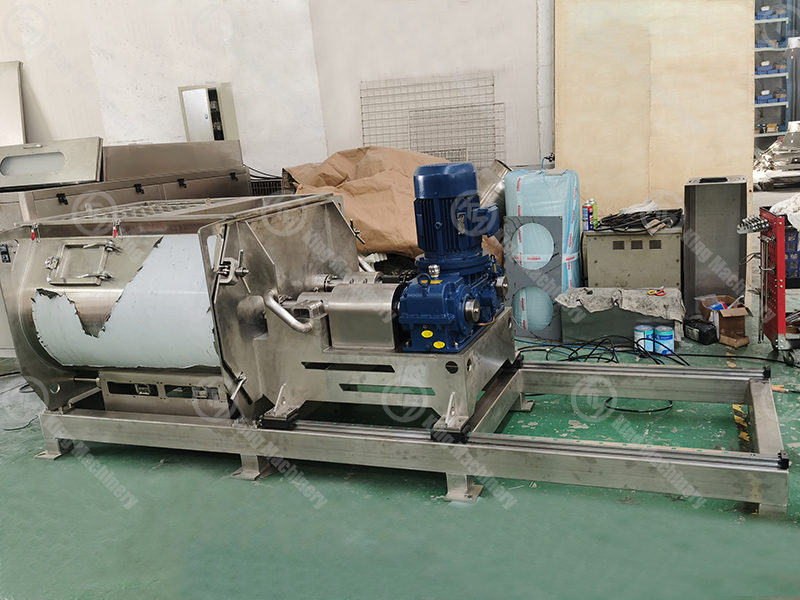

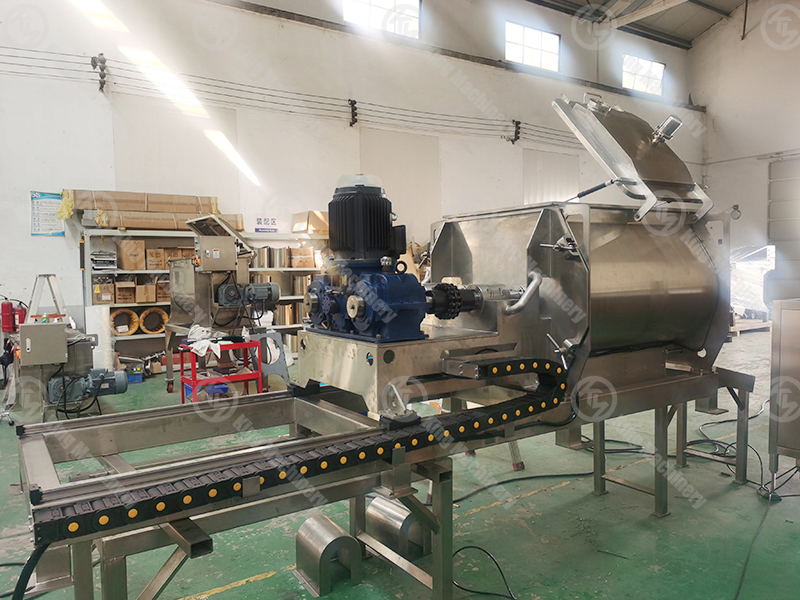

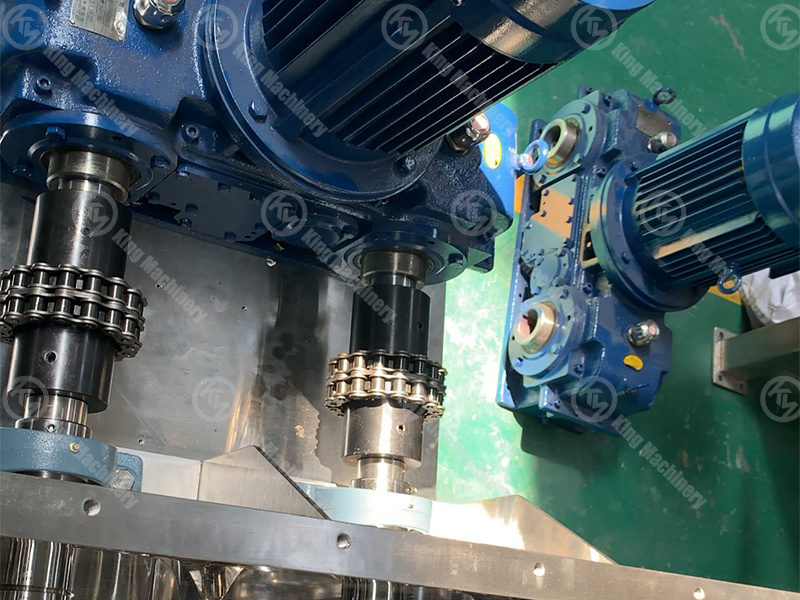

2. Driven Unit

1 motor + 1 gearbox. The motor provides unidirectional power input, which is then transmitted through a symmetrical reduction mechanism to produce a bidirectional power output, causing the left and right drive shafts to rotate in opposite directions.
With VFD
Customized Voltage for 220V/240V/380V/415V/440V or othes
Motor Brand: normally Guomao Brand (Chinese Listed Brand, https://www.guomaoglobal.com/#/ ), Option: Siemens/ABB made in China, or other Brand
Reducer:normally Guomao Brand
VFD: normally Invt Brand (Chinese Listed Brand, https://www.invt.com/index.php ), Option: Delta/ABB or other Brand

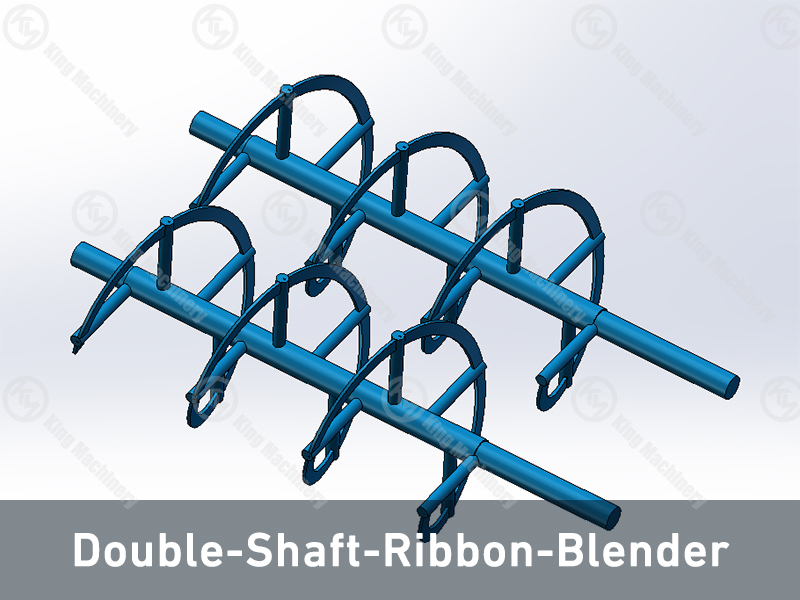

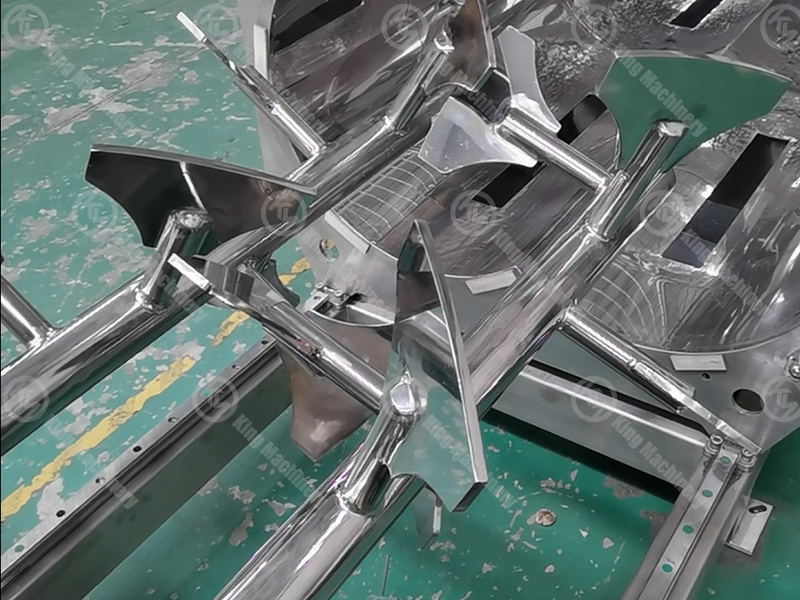

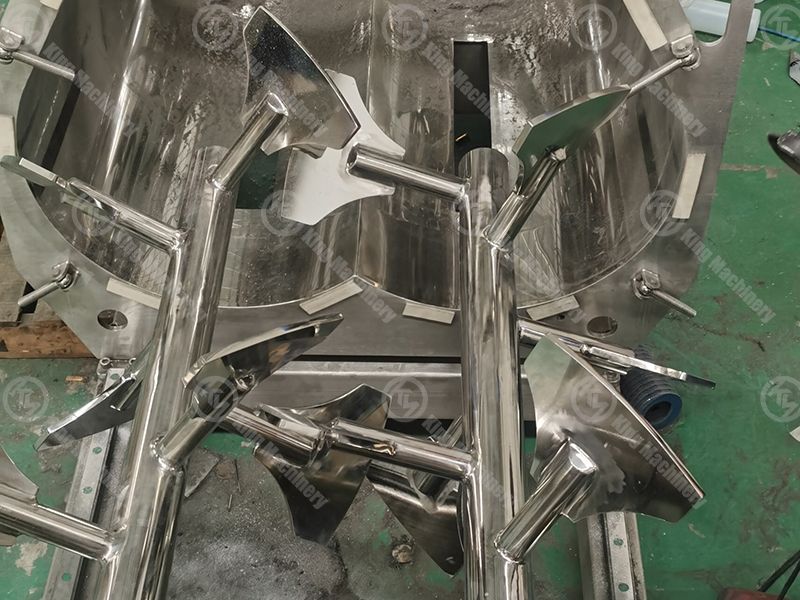

3. Agitator Unit

Sanitary Polished
Integral shaft without any Welding marks, to prevent bacterial growth
Double Shafts Paddle

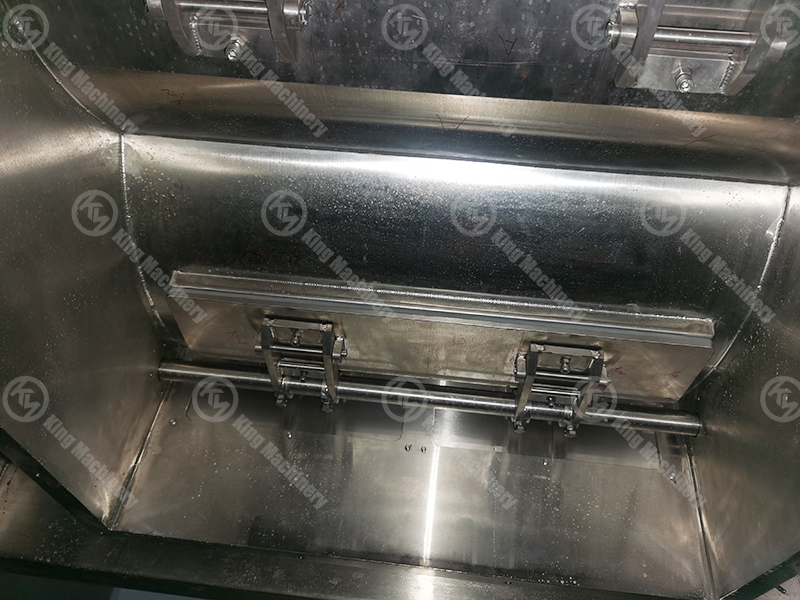

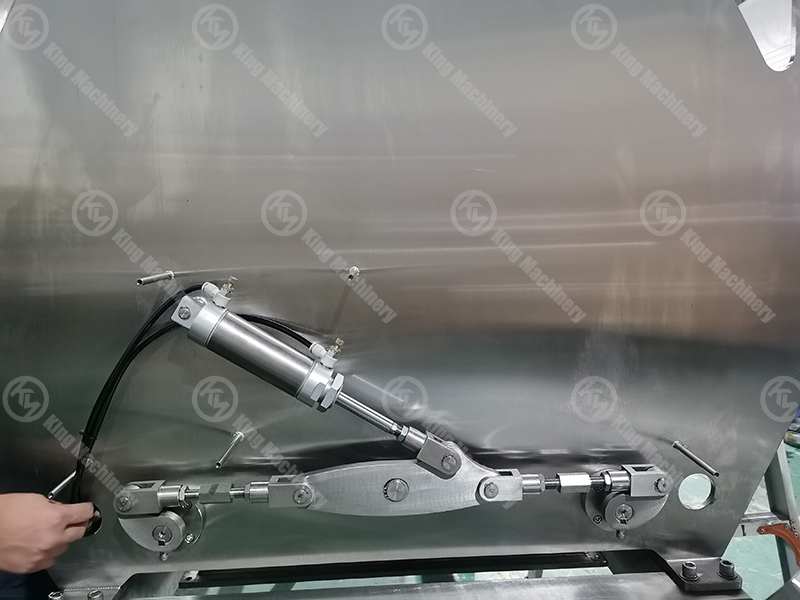

4. Discharge Unit

Normally equipped with 2 self-made pneumatic flat discharge valves, flush with the U-shaped trough bottom, ensuring good sealing performance and preventing water leakage.

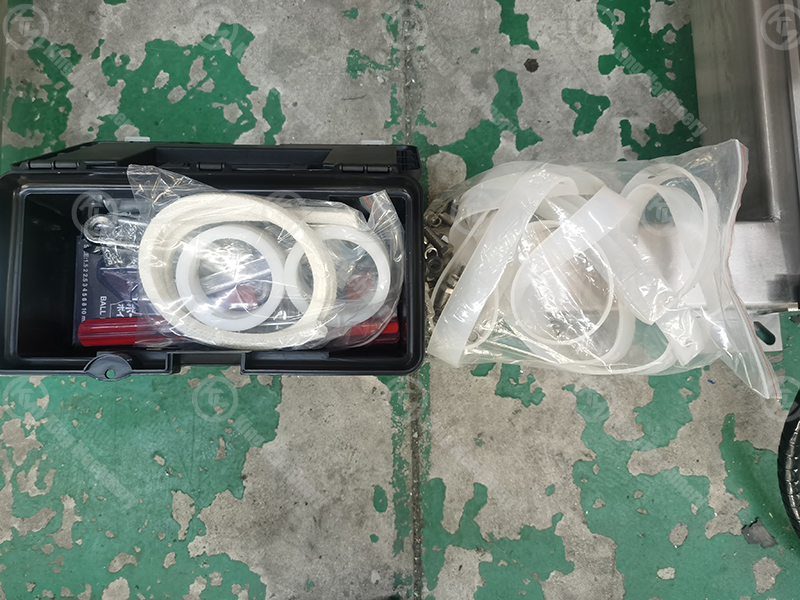

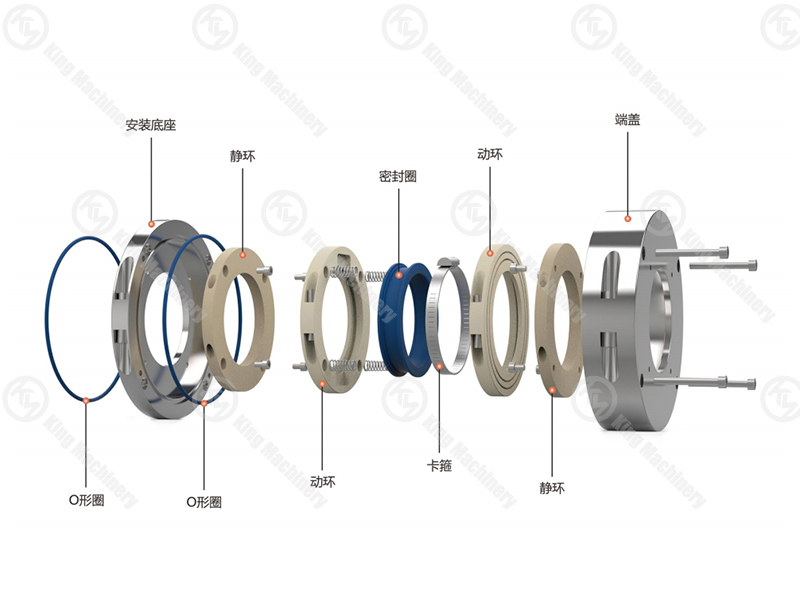

5. Shaft Sealers

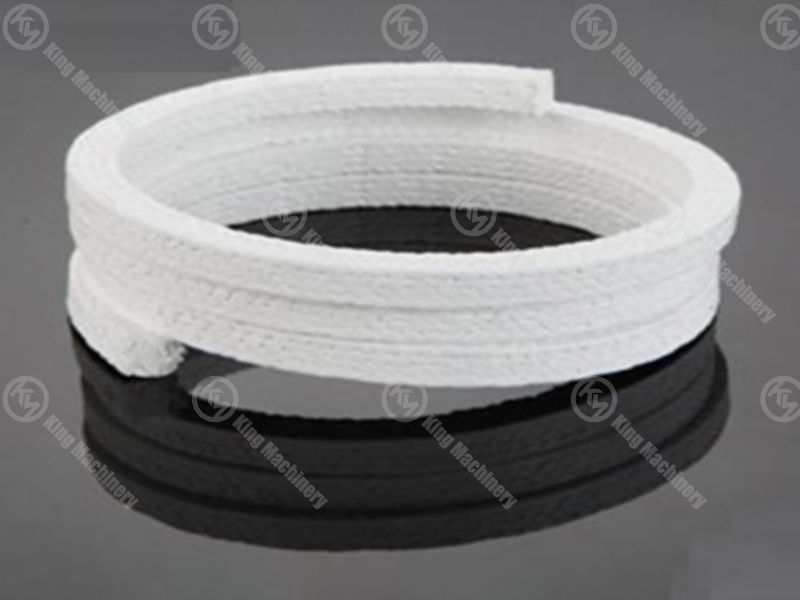

Normally 2 layers of the Packing Sealer, to prevent water leakage.
Option: Air Sealer

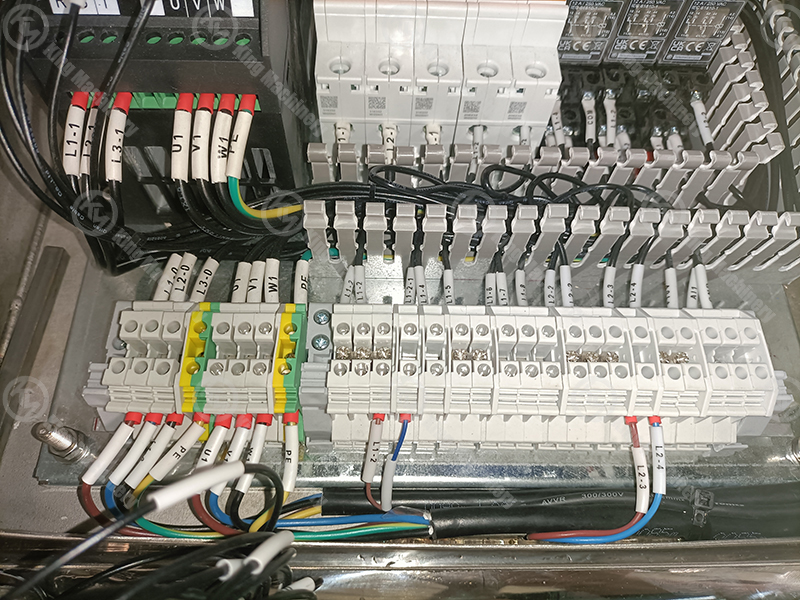

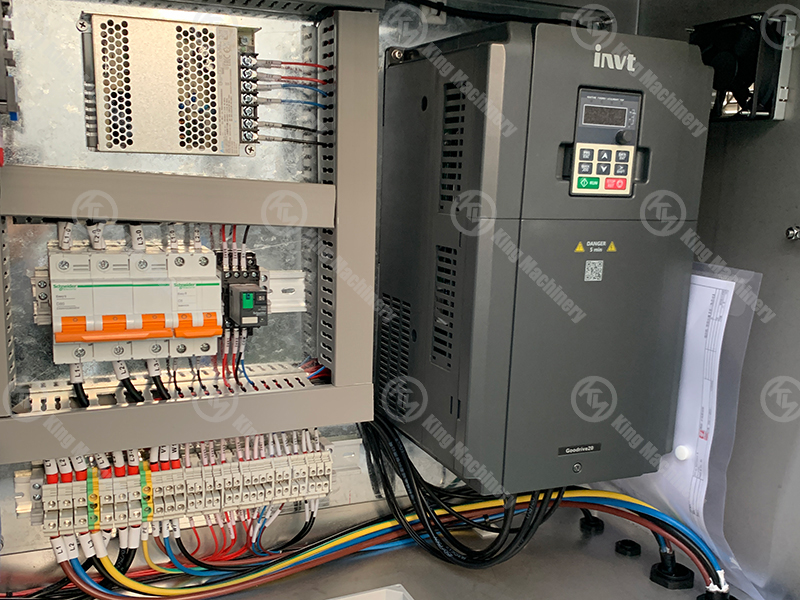

6. Electric Control Part

PE grounding conductor.
The grounding wire is identified by green/yellow insulation, in accordance with IEC 60445 / IEC 60204-1 international electrical standards.
Schneider Brind Circuit with UL/CE
Electrical safety protection and fully complies with international industrial equipment safety practices.
On/Off/E-off/Timer

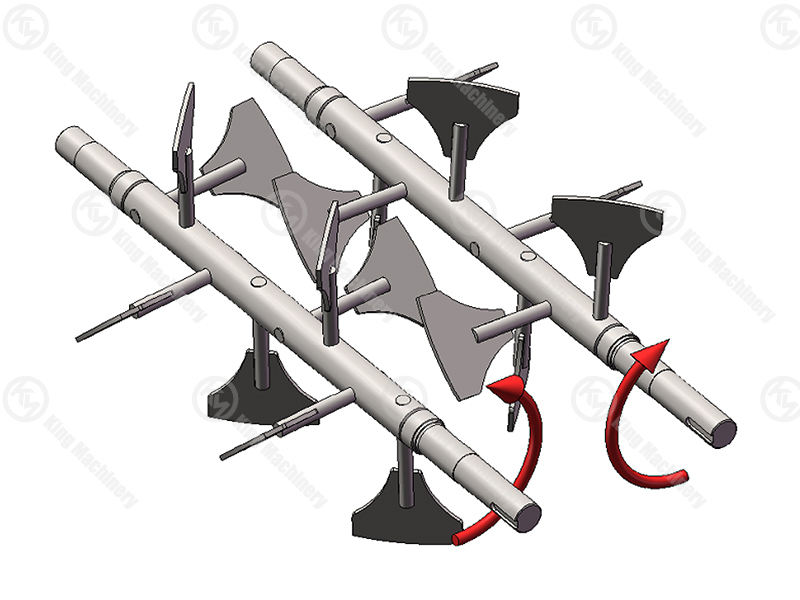

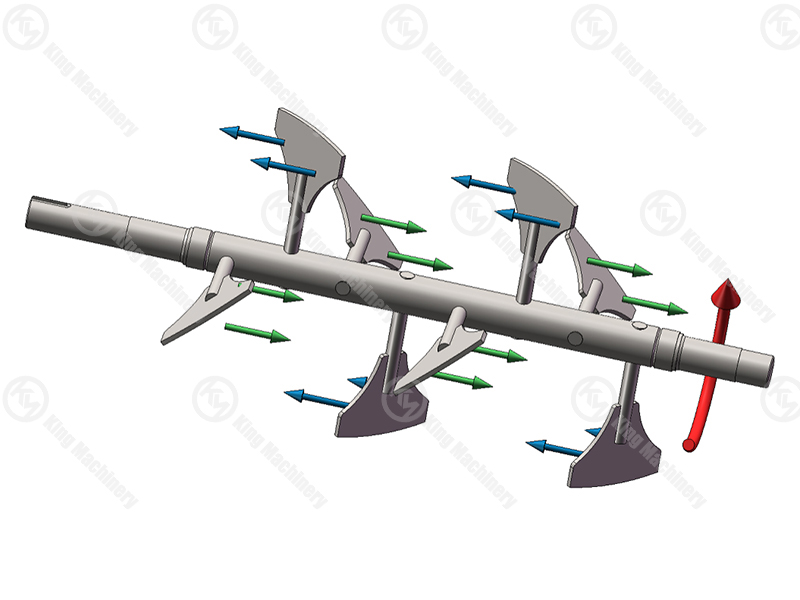

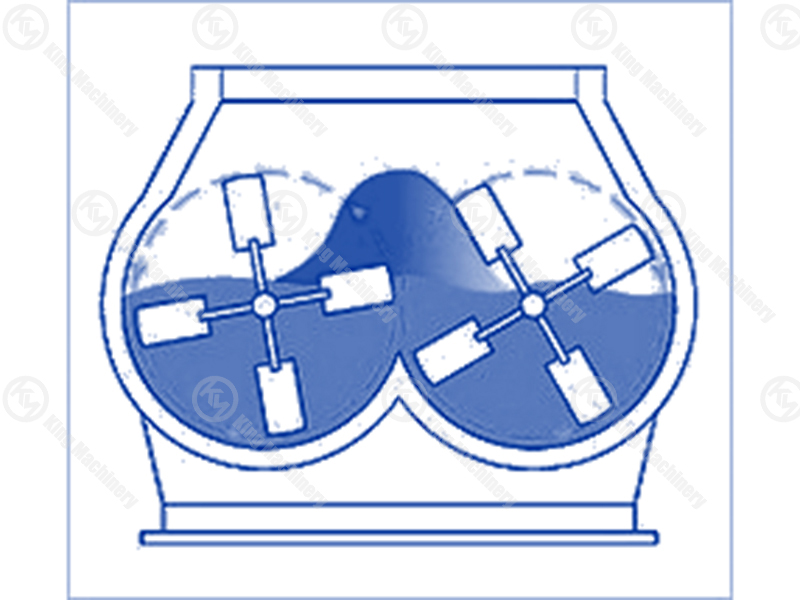

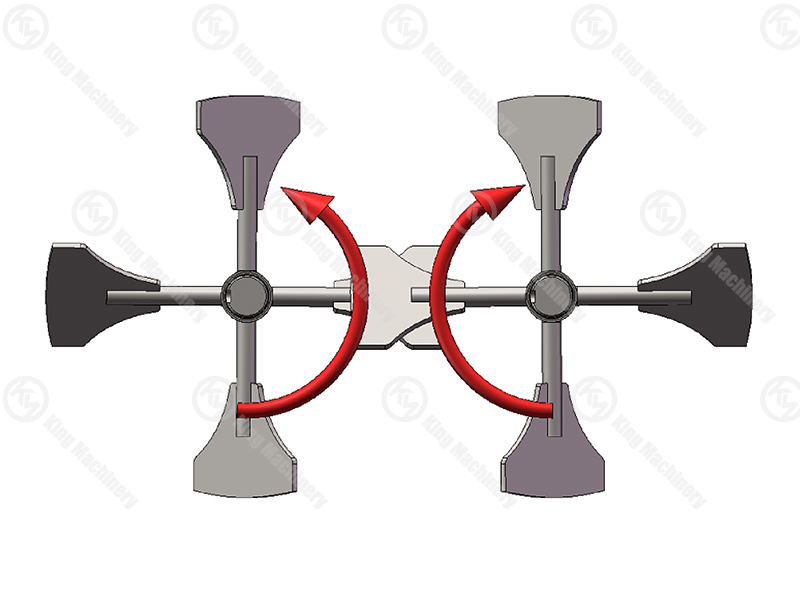

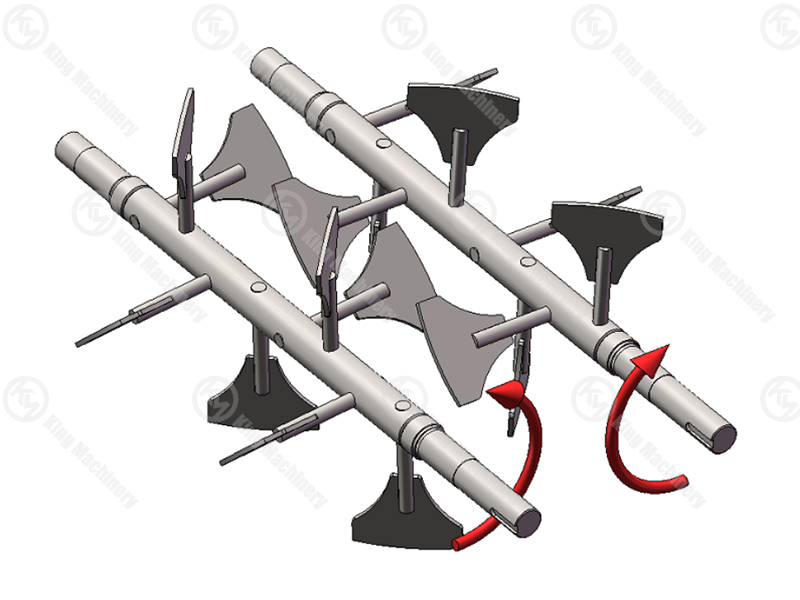

Inside the mixer, two parallel shafts rotate in opposite directions, each equipped with multiple paddles. As they rotate:

The paddles lift and throw the material upward, creating a temporary "weightless" or fluidized zone
Particles are continuously dispersed, exchanged, and recombined throughout the chamber
The counter-rotating motion generates intense convective flow, ensuring materials move across the entire mixing space
At the same time, controlled shear forces break agglomerates without damaging particles

This combination of fluidization + convection + shear allows the mixer to achieve:

Rapid mixing (typically 30–120 seconds)
High uniformity

1. Sanitary Polished
2. Max 5mm distance between the ribbons and the innerside of the trough

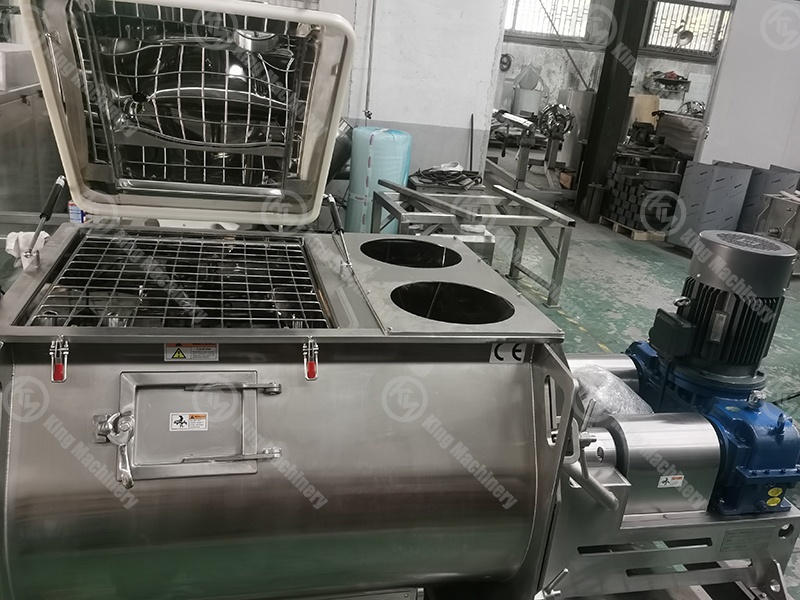

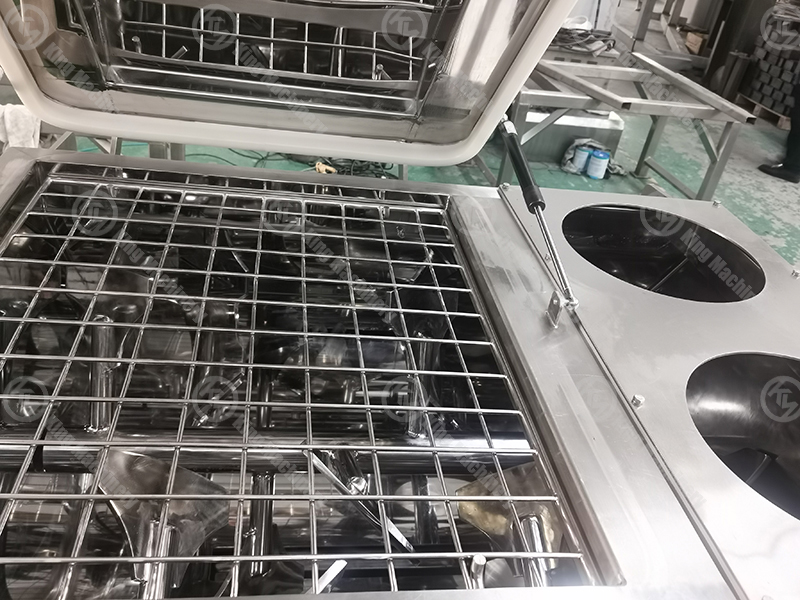

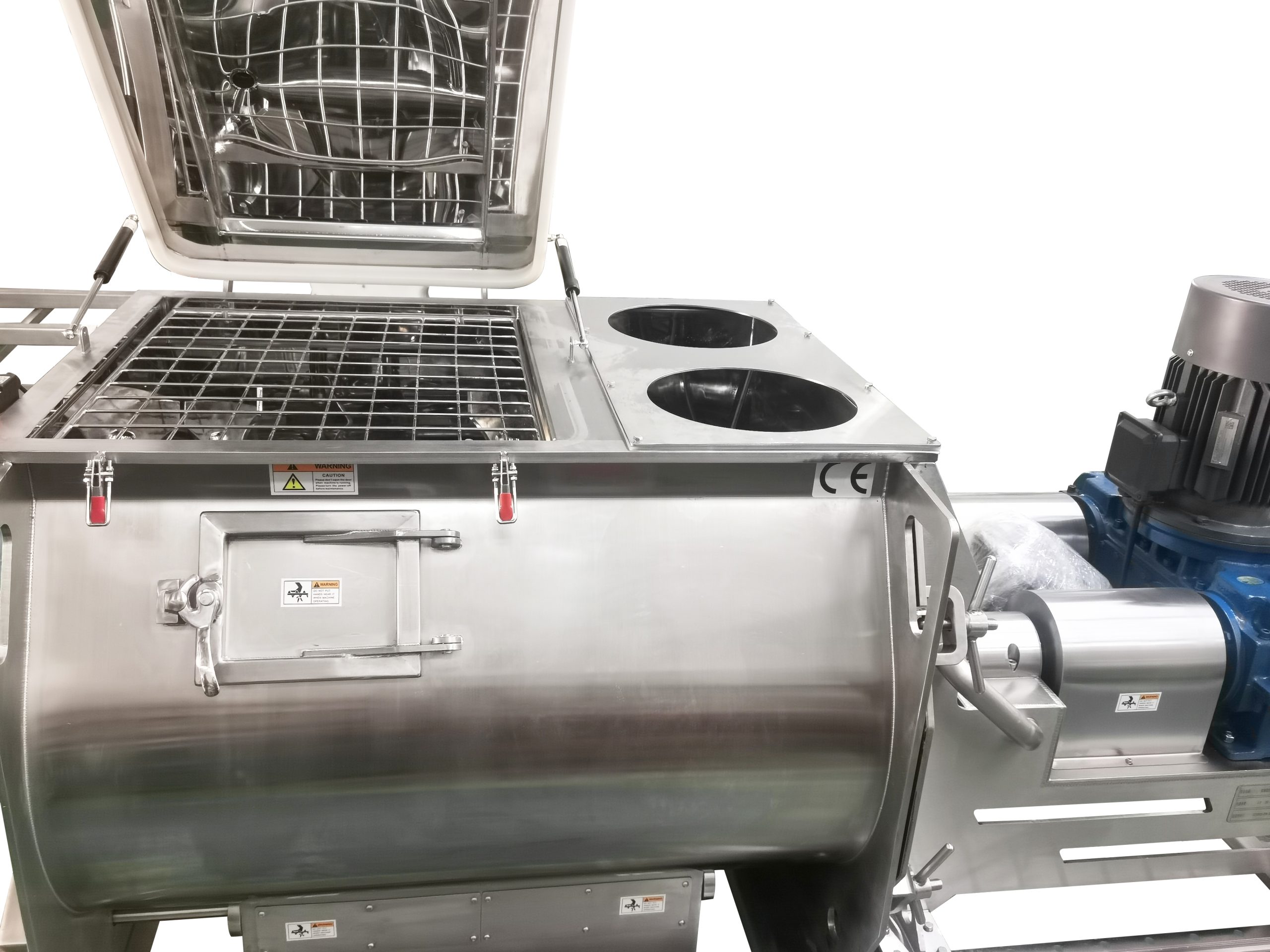

3. Easy Operation Design
ㅤA. Limit switch;
ㅤB. Gas spring;
ㅤC. Rounded corners;
ㅤD.Grating
4. Integral shaft without welded point
5. Shaft end seal, good for water
6. Pneumatic flat valve discharging, flush with the trough bottom
7. All stainless steel construction
8. Relay control
9. Optional 4 castors for moving
10. Customize Voltage and details
11. 300L -3000L

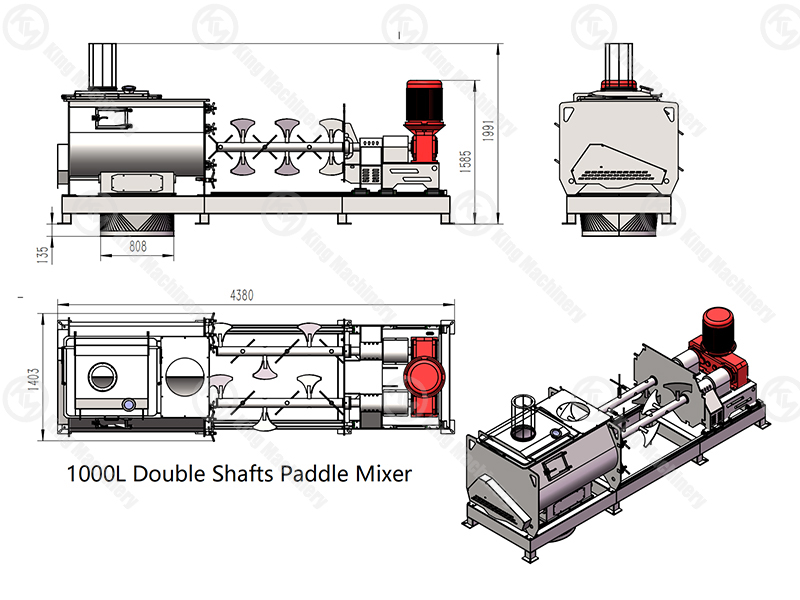

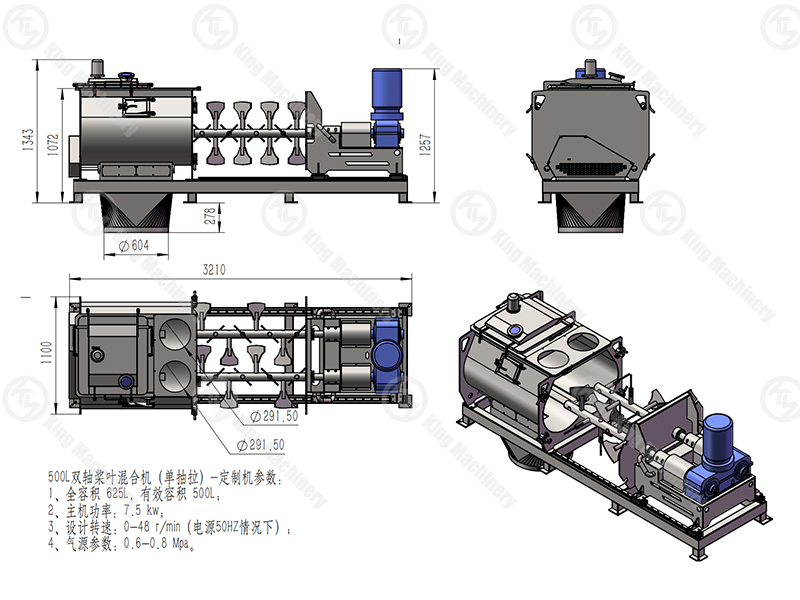

KM Double Shafts Paddle Mixer
Model	KMDP-300	KMDP-500	KMDP-1000	KMDP-1500	KMDP-2000	KMDP-3000
Totally Volume(L)	375	625	1250	1875	2500	3750
Working Volume(L)	300	500	1000	1500	2000	3000
Loading Rate	35%-85%
Power（KW）	5.5	7.5	11	18.5	22	30
Max Speed（rpm）	46	46	38	35	30	30
Air	0.6-0.8mpa
