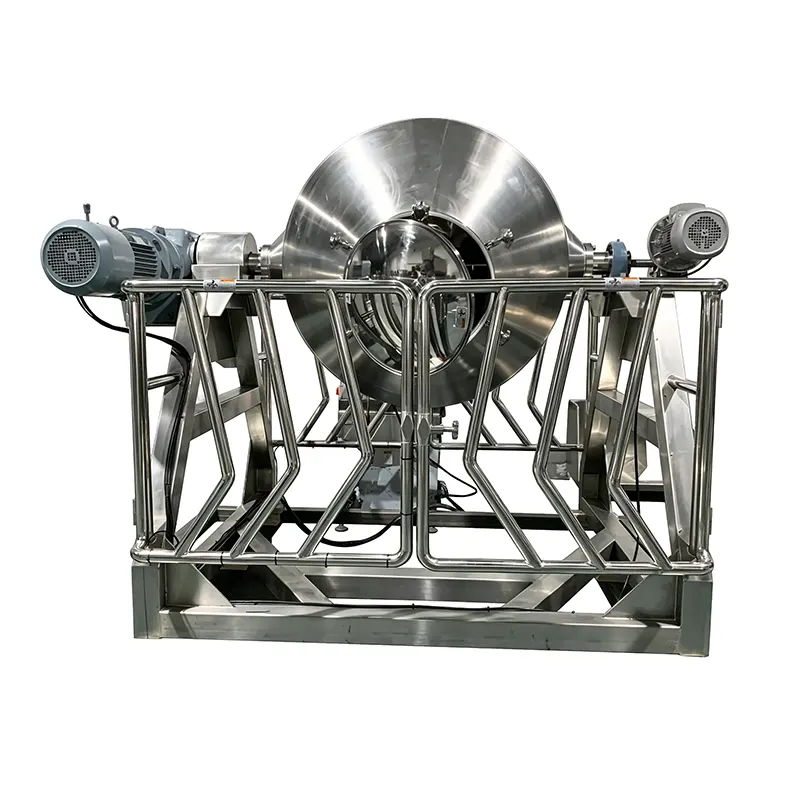

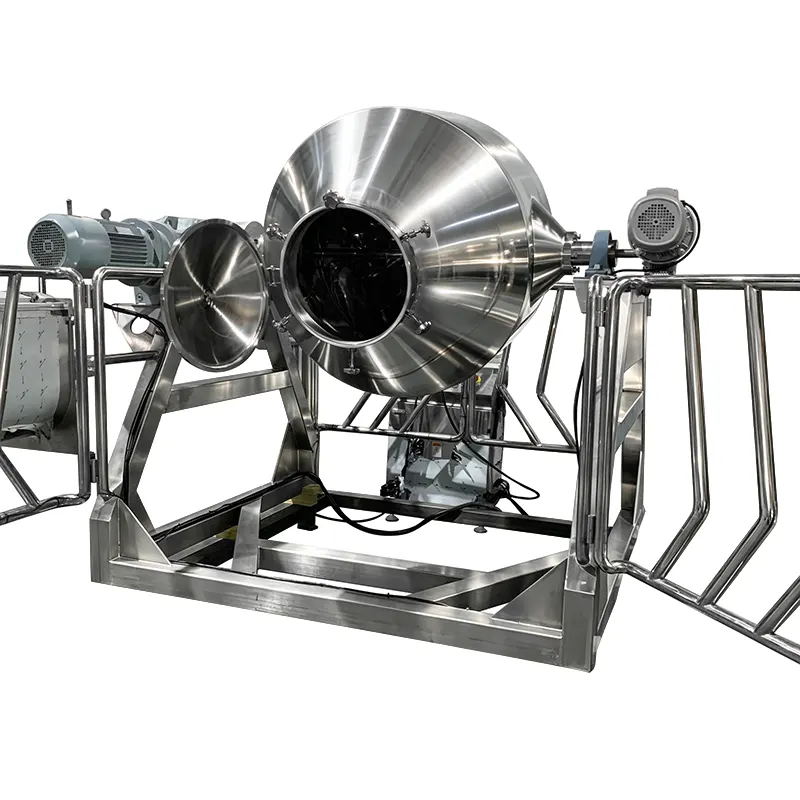

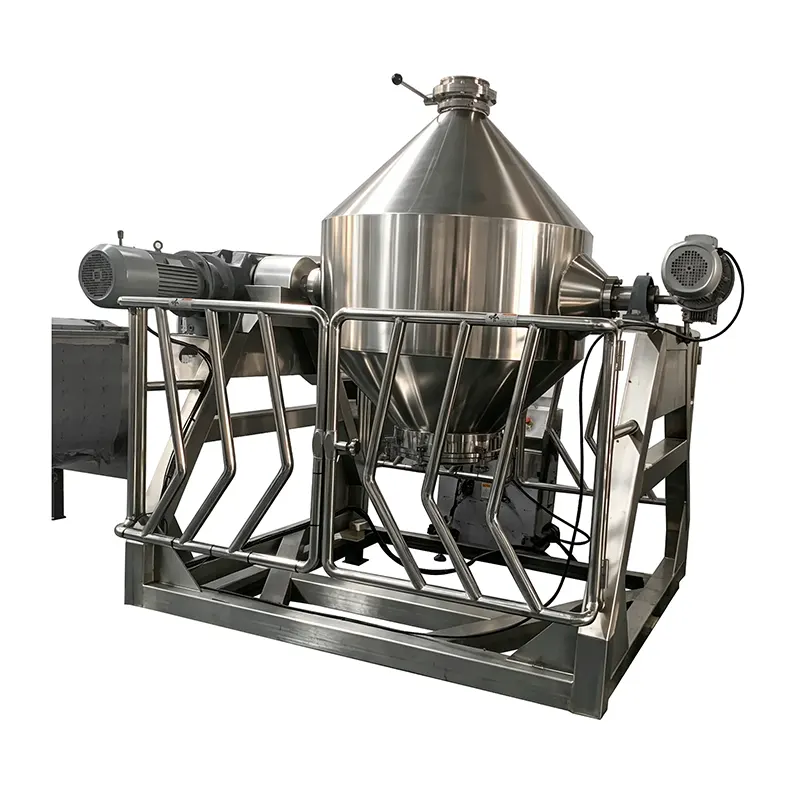

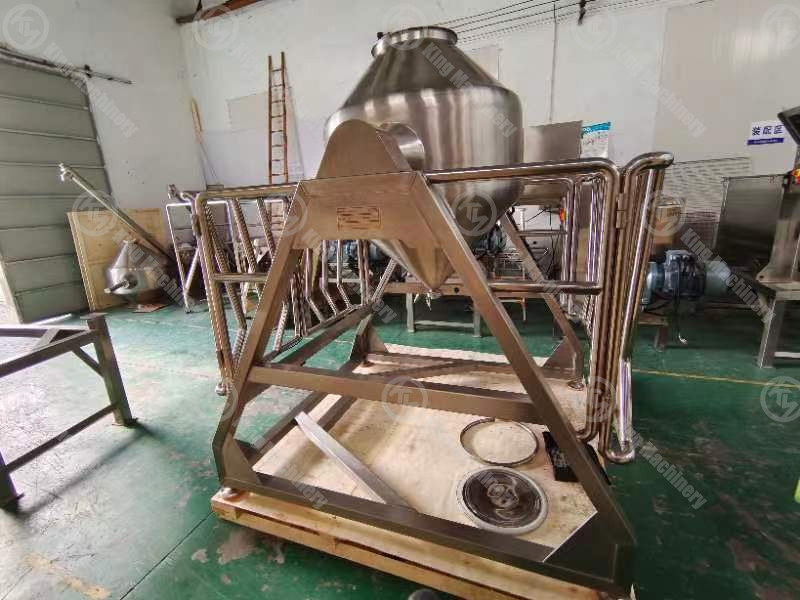

KM Double Cone Mixer is a highly efficient and energy-saving mixing equipment designed for the uniform blending of dry powders and granules.
The machine features a double-cone vessel mounted on a rotating shaft. As the vessel rotates, the materials inside are continuously lifted, divided, and recombined, resulting in a fast and homogeneous mixing process.
This mixer is particularly suitable for materials with good flowability and similar particle size and density. It is widely applied in industries such as pharmaceuticals, food processing, chemicals, and feed production.
With its simple structure and gentle mixing mechanism, the Double Cone Mixer ensures minimal material degradation while maintaining high mixing uniformity.
Key Features:
Optional intensifier bar for cohesive materials

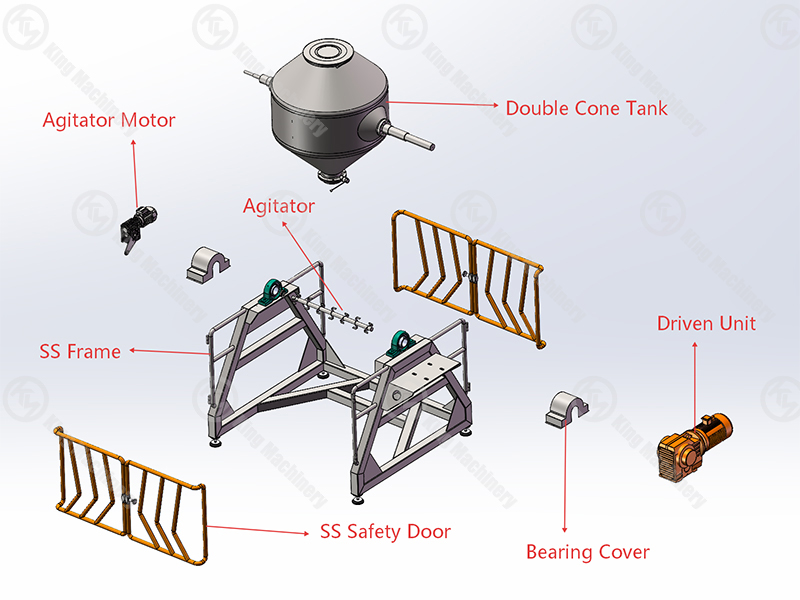

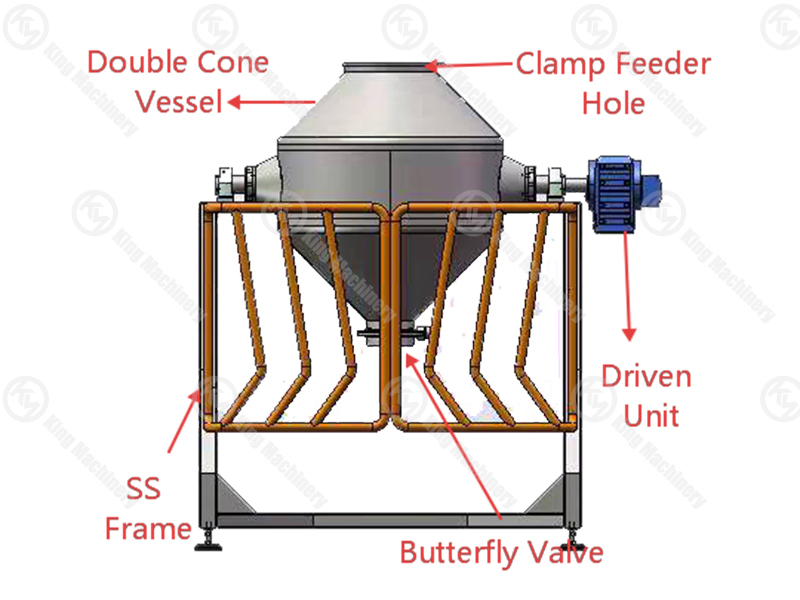

The KM Double Cone Mixer totally have 3 kinds design, according the size, but all of them includes Double Cone Vessel , driven unit, Discharge unit and the electric Control Part

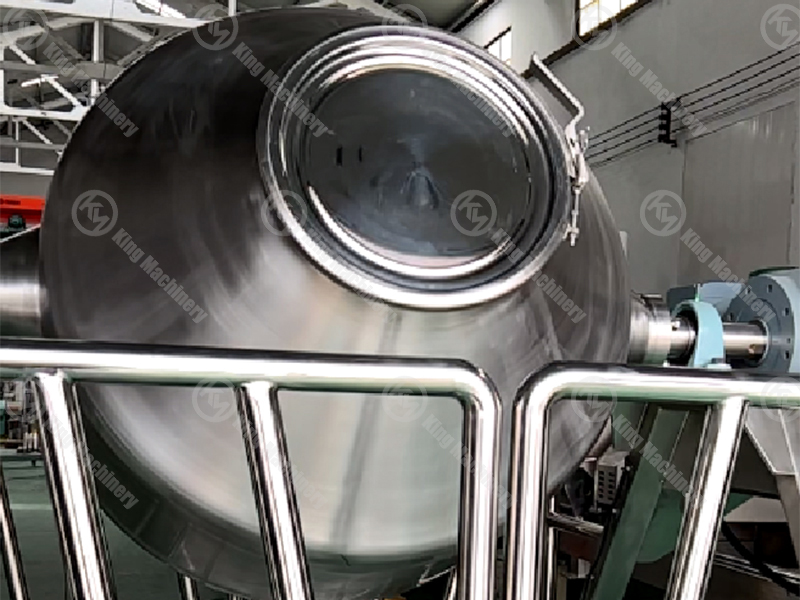

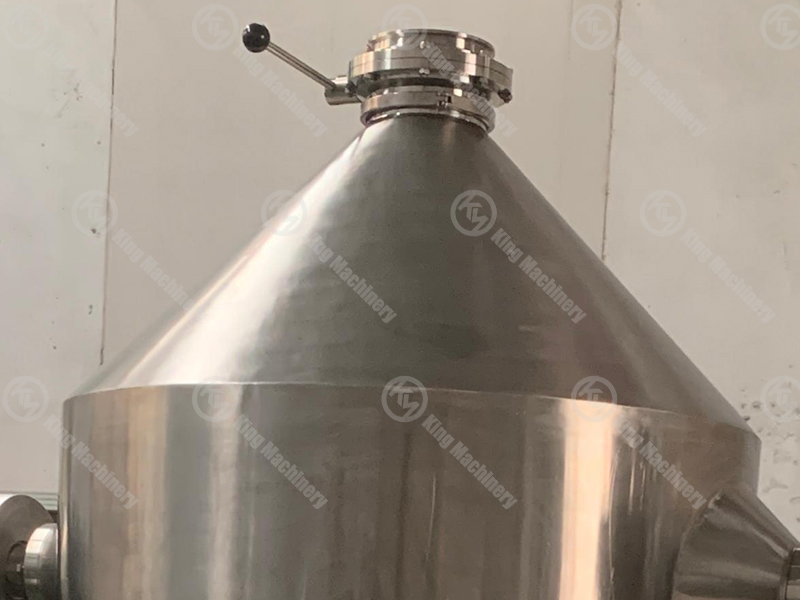

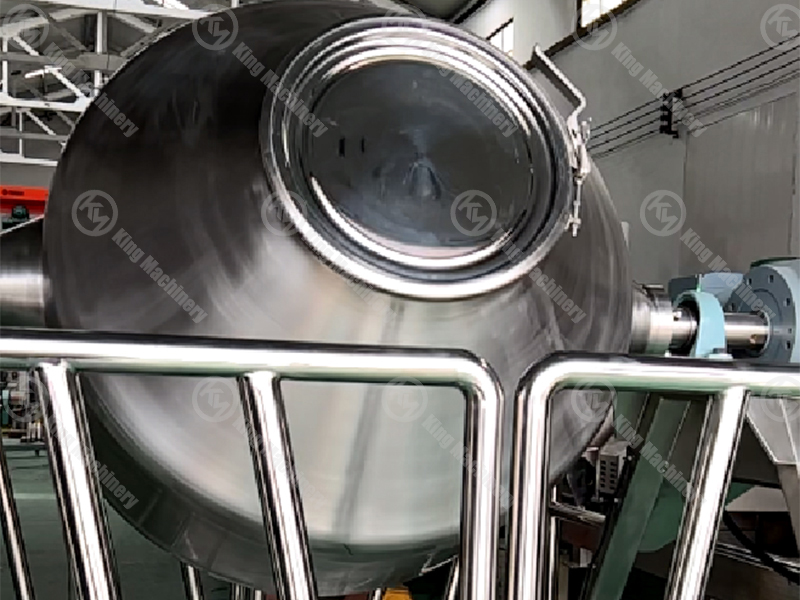

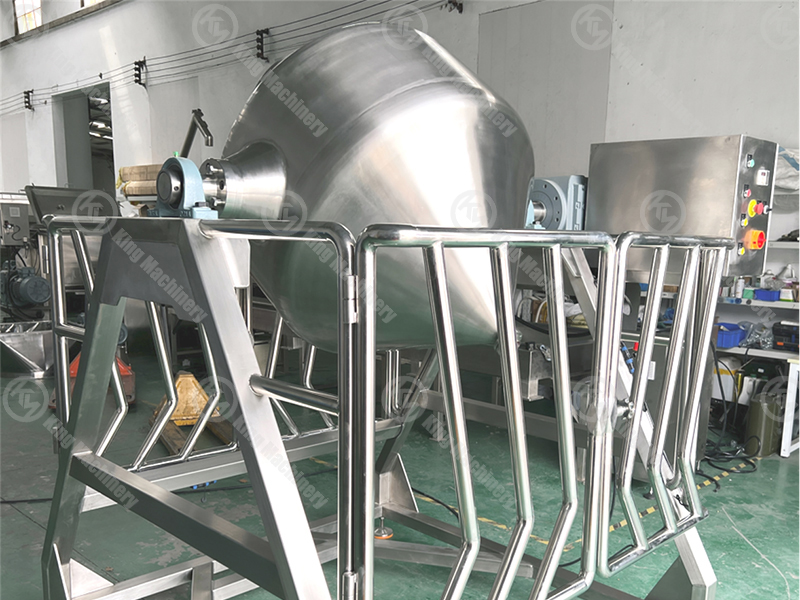

1. Double Cone Vessel

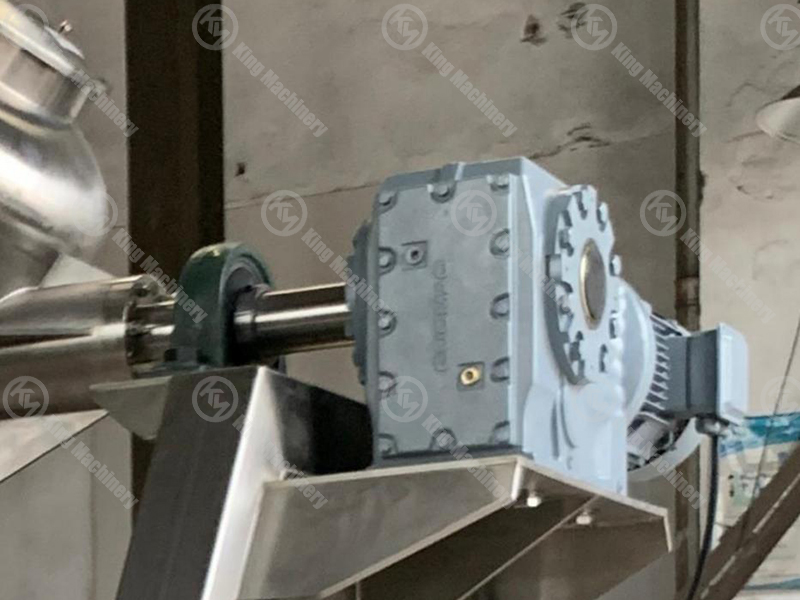

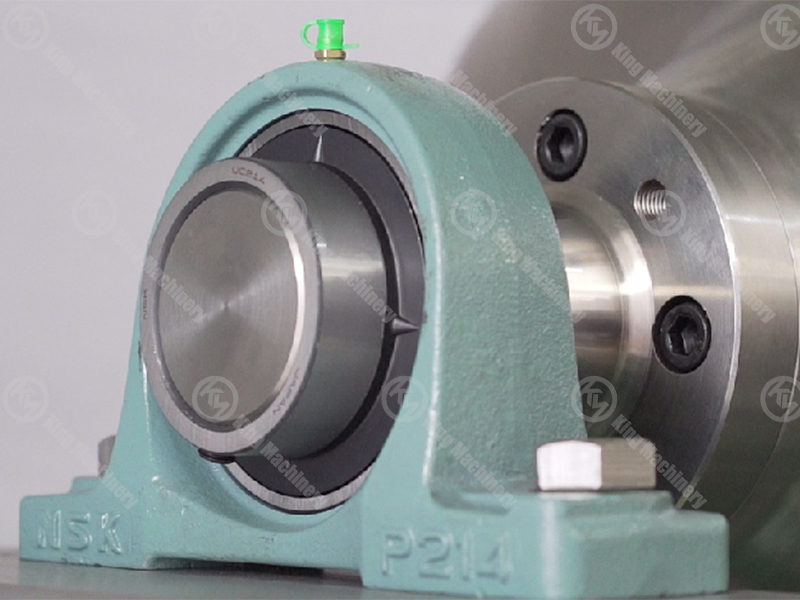

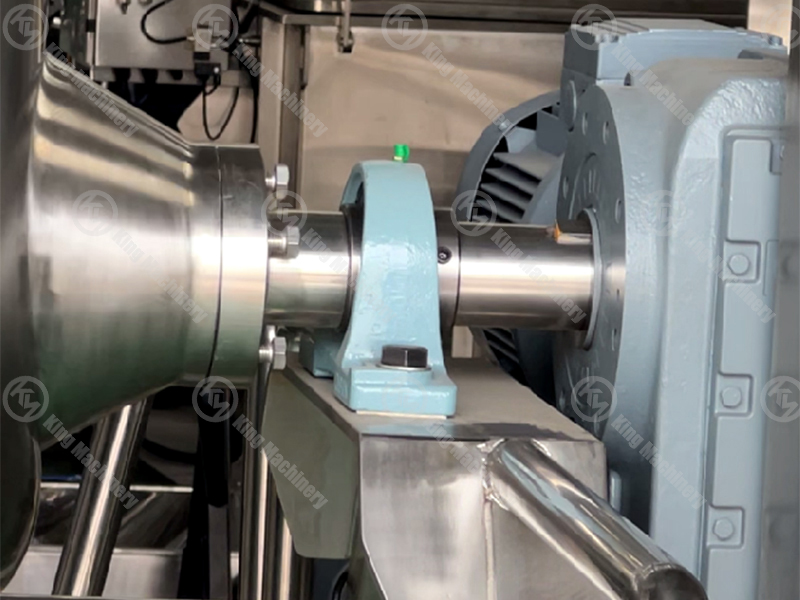

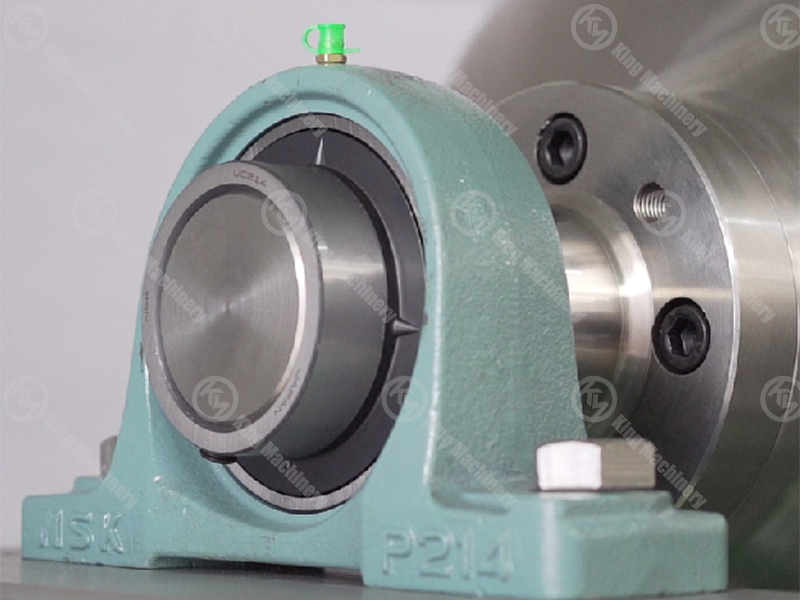

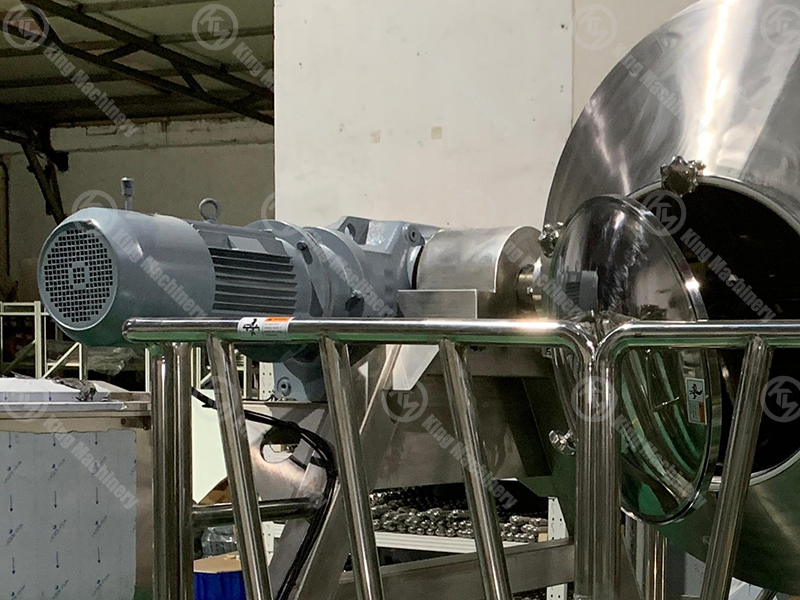

2. Driven Unit
3. Discharge Unit

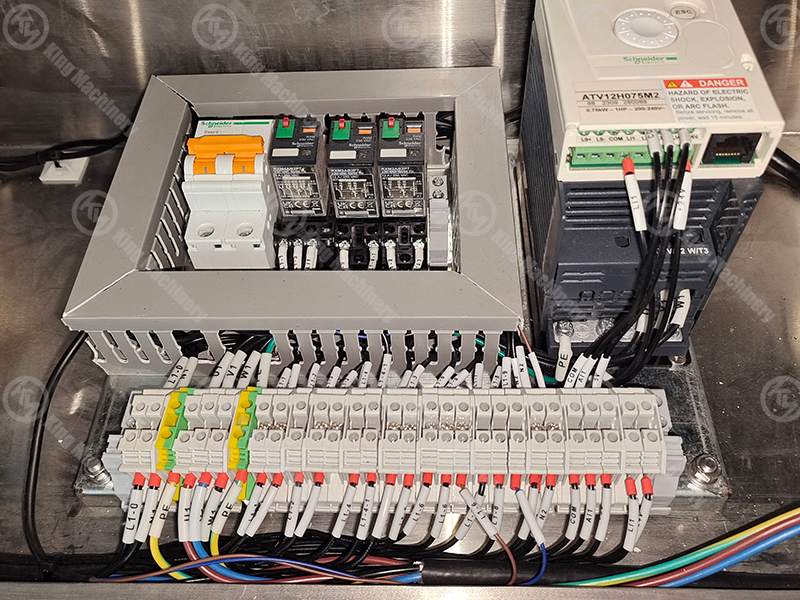

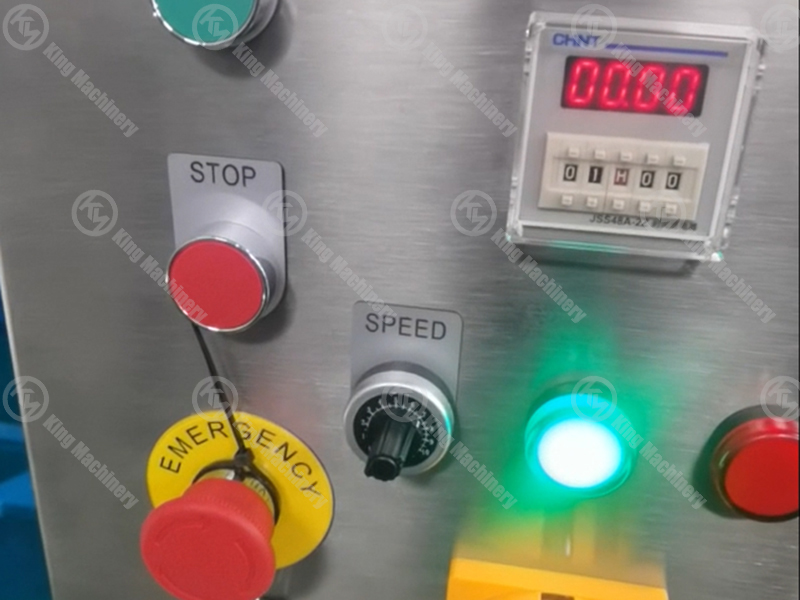

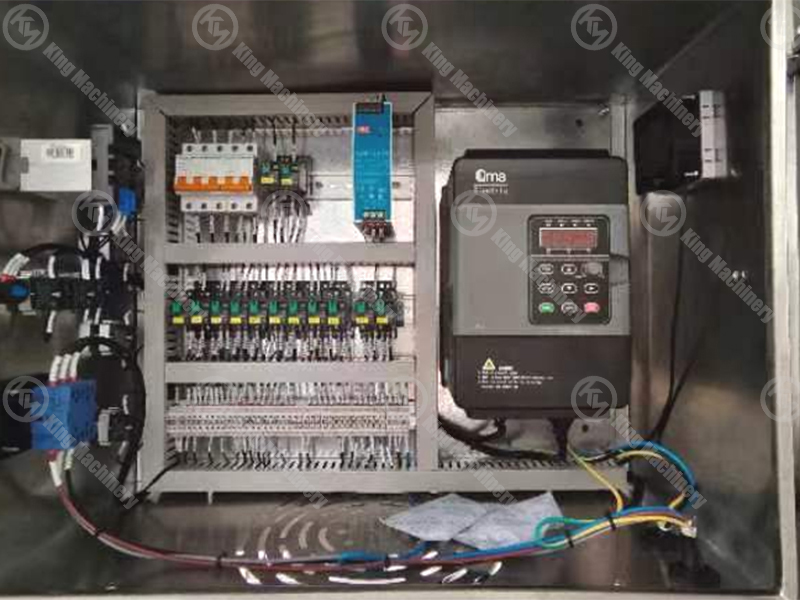

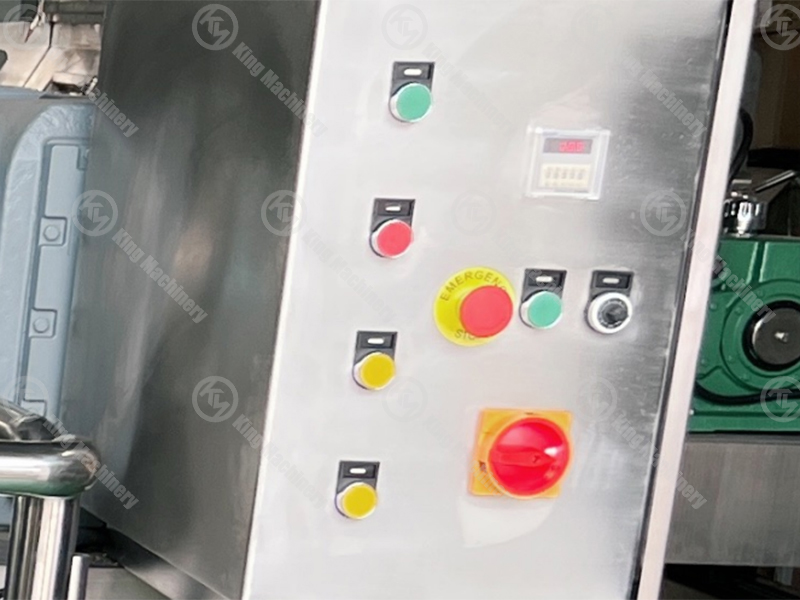

4. Electric Control Part

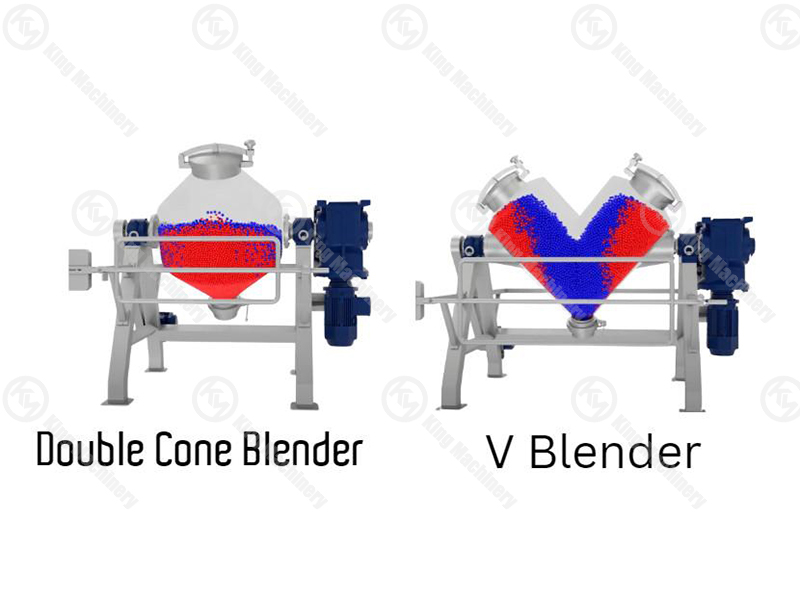

The Double Cone Mixer operates on the principle of tumbling mixing (diffusion mixing).
When the machine rotates, the material inside the double-cone vessel is repeatedly lifted and allowed to fall under gravity. This creates continuous splitting, sliding, and recombination of particles.
The conical geometry enhances axial and radial movement, improving mixing efficiency compared to simple drum mixers.
Because there are no internal agitators, the process generates very low shear force, making it ideal for fragile, heat-sensitive, or easily degradable materials.
 |
KDC-5 | KDC-20 | KDC-80 | KDC-100 | KDC-200 | KDC-300 | KDC-1000 | KDC-2000 |
| Volume(L2) | 5L | 20L | 50L | 100L | 200L | 500L | 1000L | 2000L |
| Loading Rate | 30%-50% | |||||||
| Speed(rpm) | 0-40 | 0-35 | 0-35 | 0-16 | 0-16 | 0-16 | 30 | 0-10 |
| Power（Kw） | 0.55 | 0.75 | 1.1 | 1.5 | 2.2 | 4 | 7.5 | 15 |

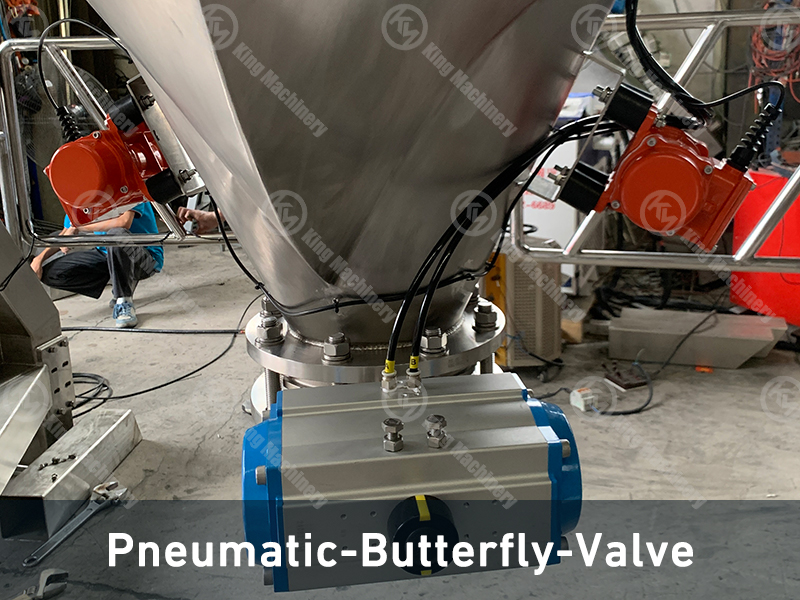

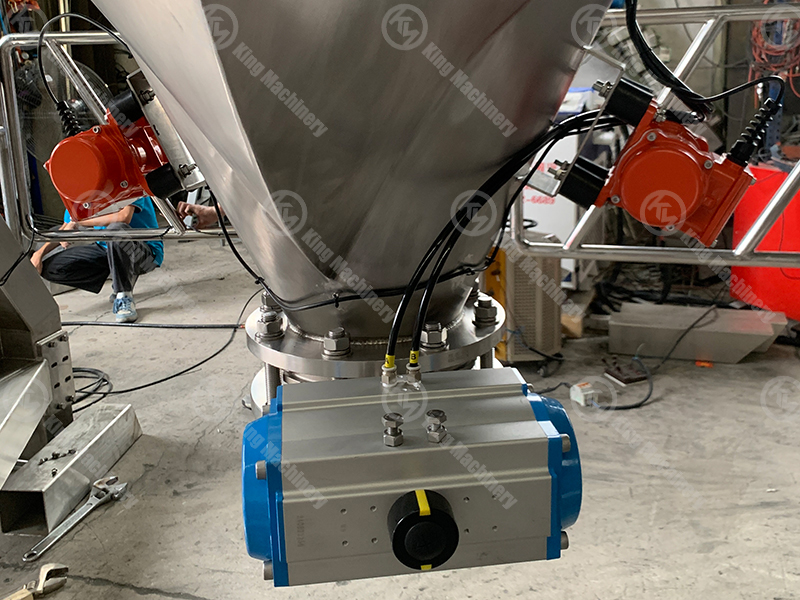

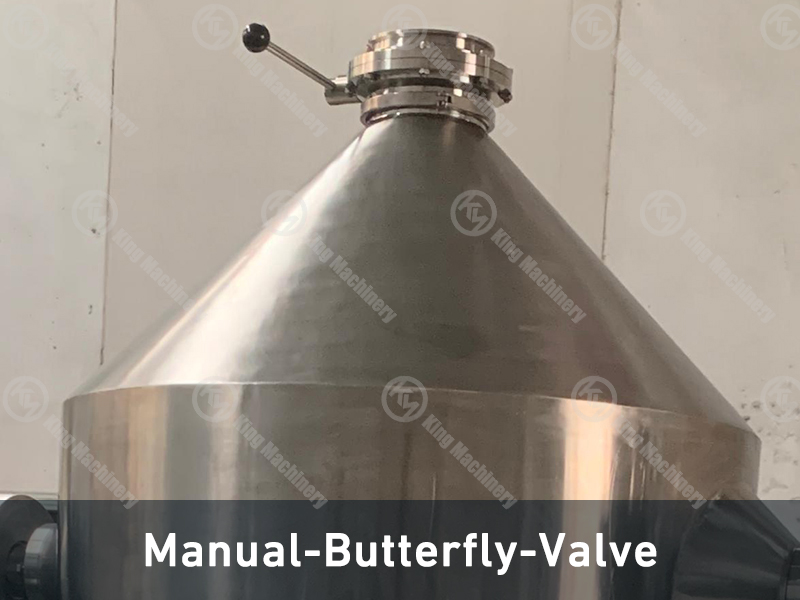

1. Manually or Pneumatic Butterfly Discharge

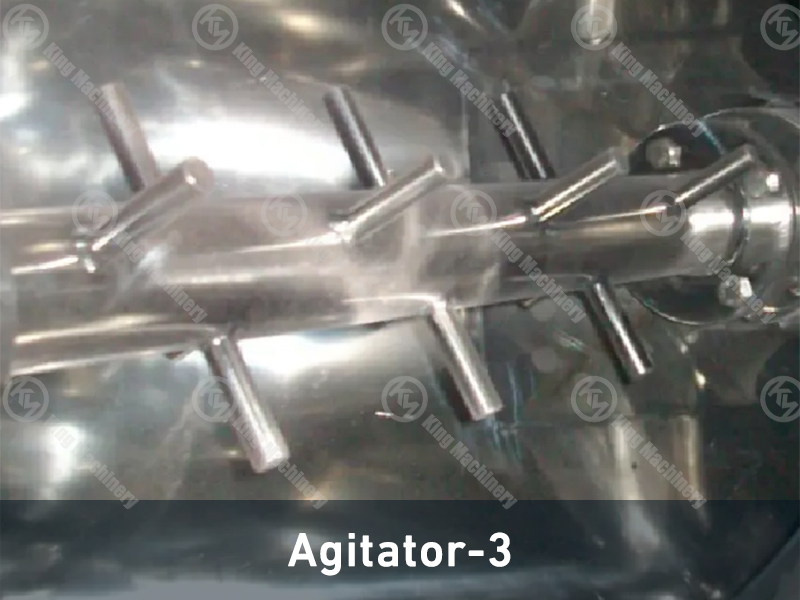

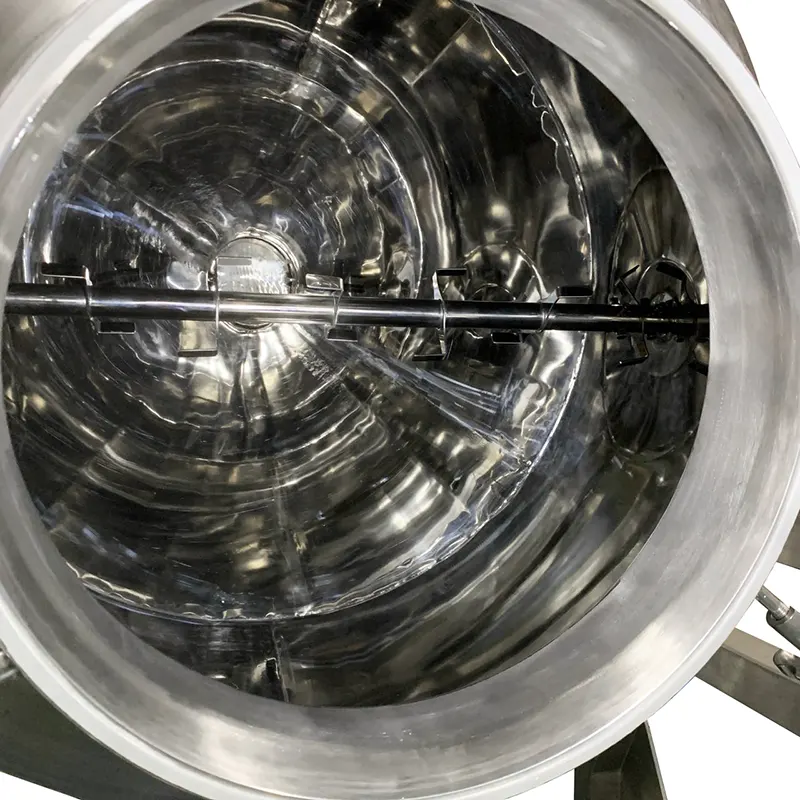

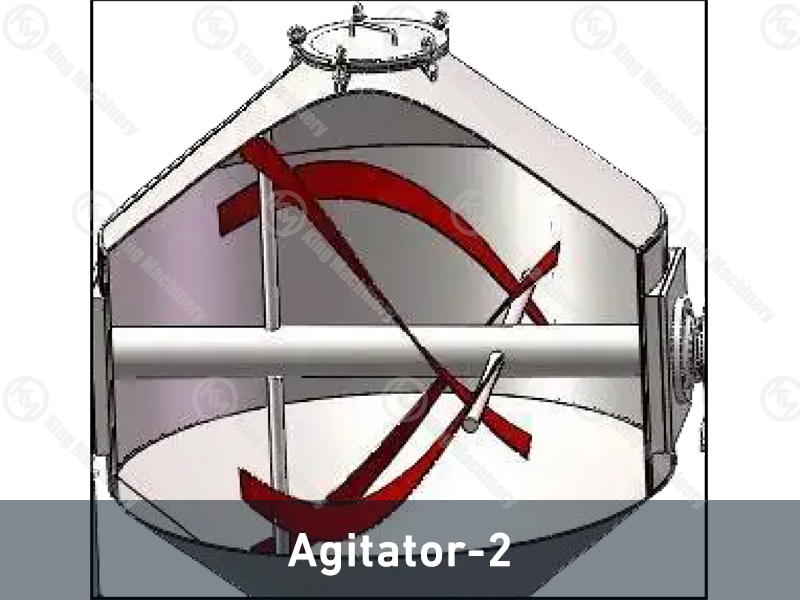

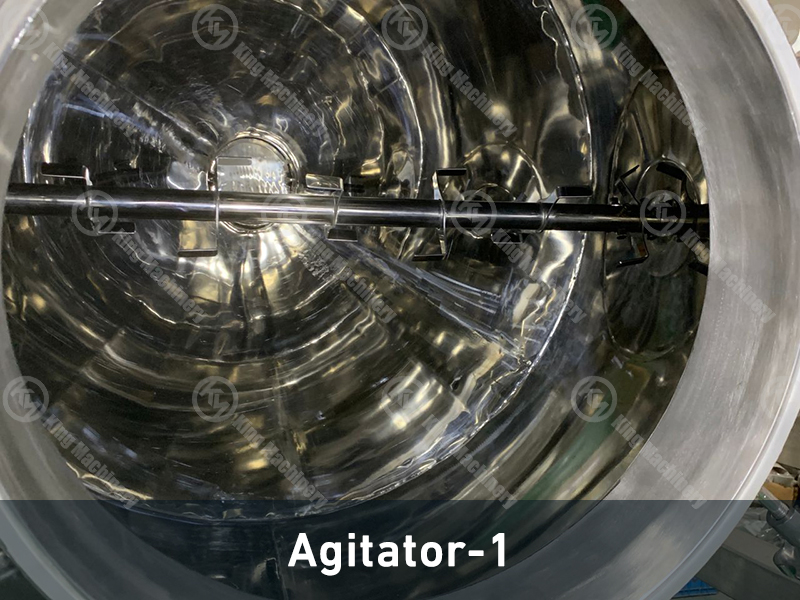

2. Agitator

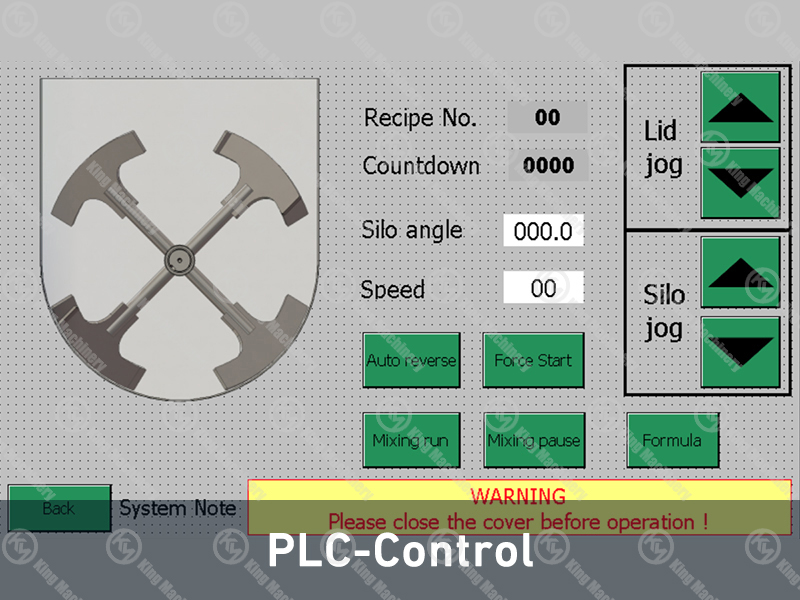

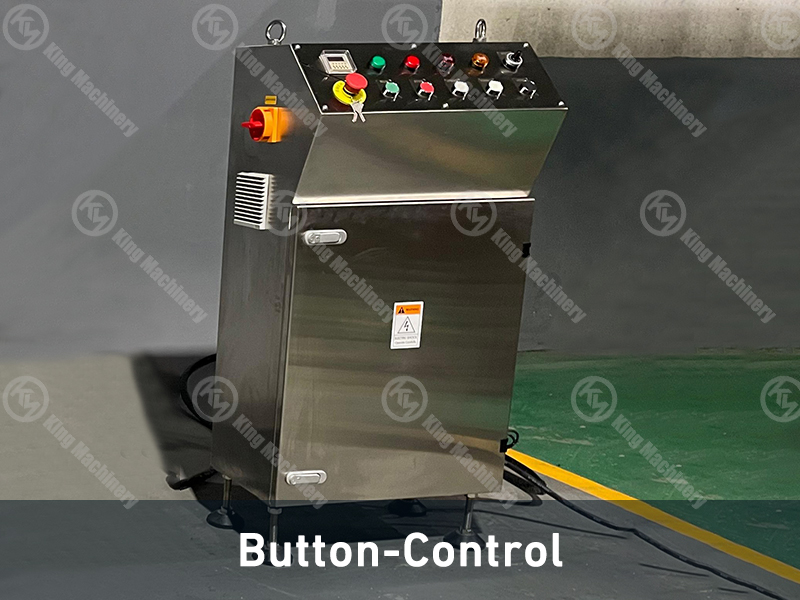

3. Button or PLC Control
